Single and dual input analyzers for pH/Redox (ORP)
AX416, AX436, AX460, AX466 & AX468 5 Programming
42 IM/AX4PH Rev. P

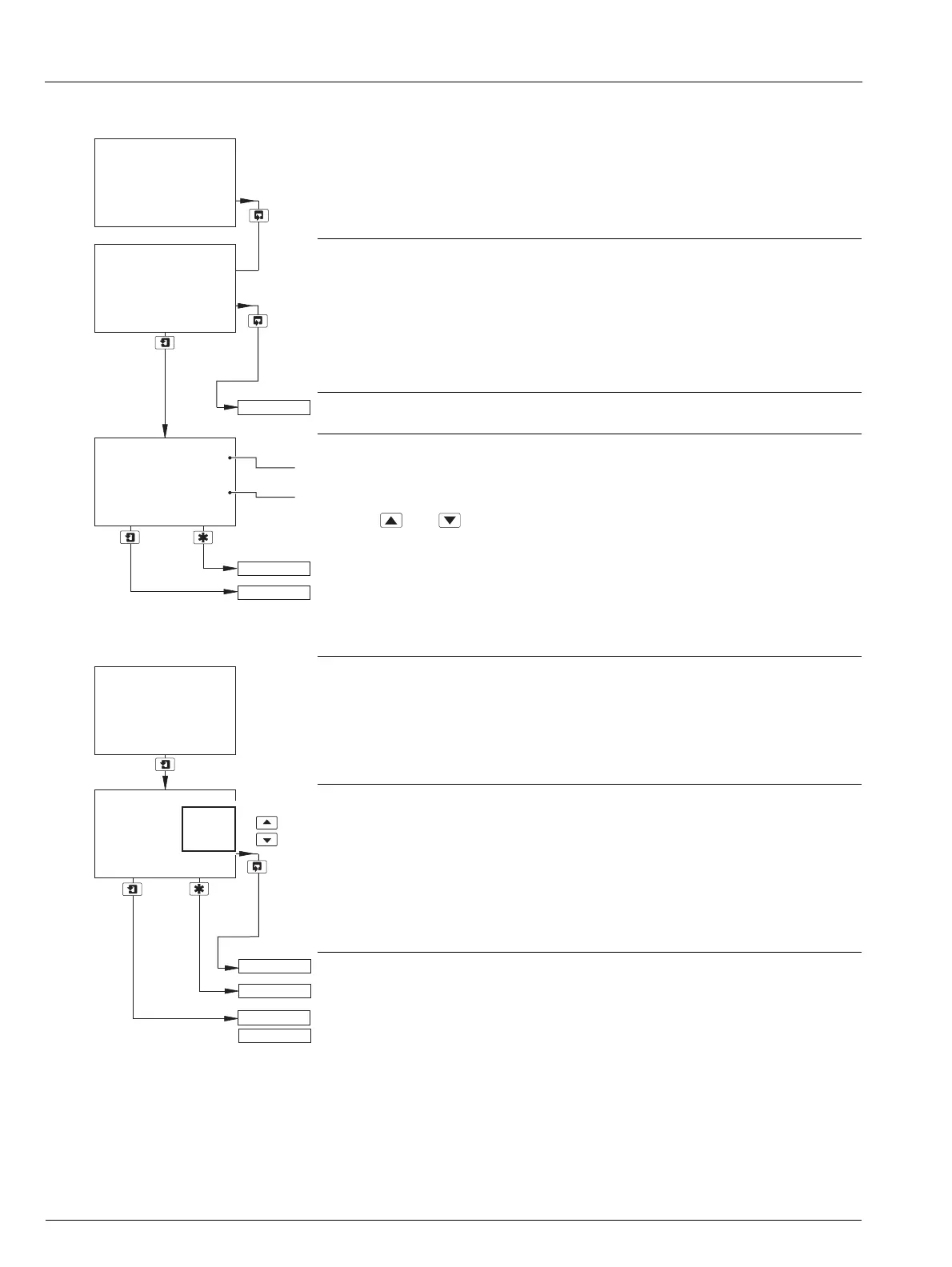

5.10 Test Outputs and Maintenance
Test Outputs
Displays the output test details for the analog outputs.
Note. Outputs 3 and 4 are available only if the option board is fitted and analog
features enabled – see Section 7.3, page 57.
Tes t Ou tpu t 1 frame only is shown; the format of frames for the remaining outputs is
identical.
See below.
Test Output 1
The theoretical output current value.
Output current as a percentage of the full range current.
Use the and keys to adjust the displayed theoretical output current value to
give the output required.
See Section 7.3, page 57.
Test remaining outputs.
Maintenance
Hold Outputs
Enables the relay action and analog outputs to be maintained.
Auto.
On
Off
–
–
–
Changes in relay action and analog outputs are inhibited during sensor
calibration.
Changes in relay action and analog outputs are inhibited.
Changes in relay action and analog outputs are not inhibited.
Note. The LEDs flash while the analyzer is in 'Hold' mode.
Continued on next page.
See Section 7.3, page 57.
Hold Outputs set to Off or On – return to main menu.
Hold Outputs set to Auto. – continued on next page.
Test Outputs
-----
TEST/MAINTENANCE
-----
Test Output 1
4.00
mA
20.0
%
Maintenance
-----
Hold Outputs
-----
Auto.
On
Off
FACTORY SETTINGS
Test Output 2
FACTORY SETTINGS
Load/Save Config
Maintenance
Maintenance
Automatic Time
To Next Page
