ABB AX400 Series User Manual

Single and dual input analyzers for pH/Redox (ORP)
AX416, AX436, AX460, AX466 & AX468 2 Operation
4 IM/AX4PH Rev. P

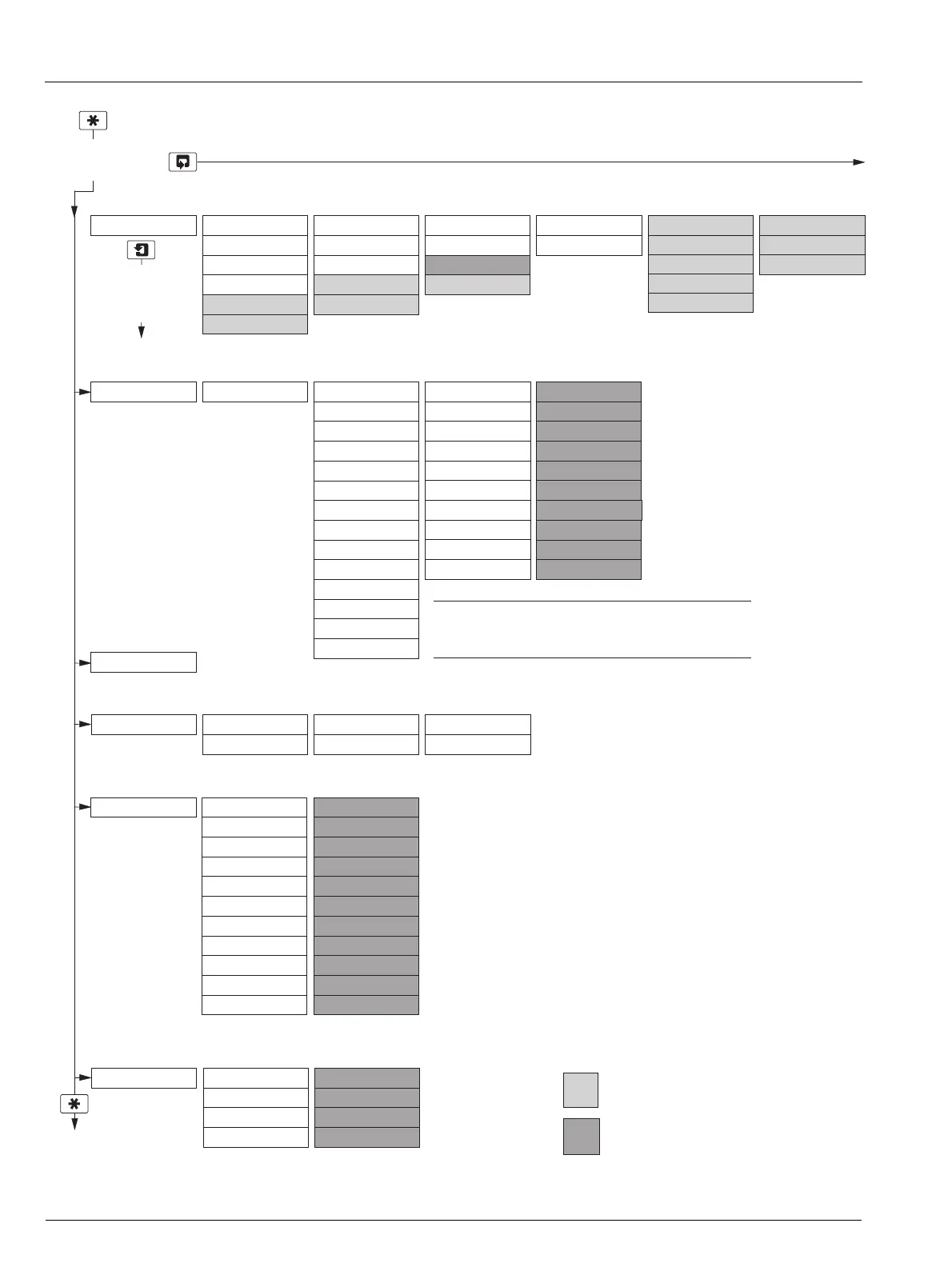

Fig. 2.3 Overall Programming Chart
Key
VIEW SETPOINTS VIEW OUTPUTS VIEW HARDWARE VIEW SOFTWARE
A1: Setpoint Analog Output 1 Sensor A Module AX400/2000 Issue
A2: Setpoint Analog Output 2 Sensor B Module
A3: Setpoint
Analog Output 3 Option Board
A4: Setpoint Analog Output 4
A5: Setpoint
SECURITY CODE
CONFIG. DISPLAY
Set Language
Set Temp. Units Set Backlight
LED BacklightTemp. UnitsEnglish
Use the Sidescroll Key to scroll through the Pages within each Menu
To CONFIG. ALARMS
(see Fig. 2.4)
Use the Downscroll
Key to scroll through
the Frames
within each Page
OPERATING PAGE
Section 2.3, Page 6 Section 3.1, Page 12 Section 3.2, Page 14 Section 3.3, Page 14 Section 3.4, Page 15 Section 3.5, Page 16
Section 5.1, Page 28
Section 5.2, Page 29
Section 3.6, Page 18
Alarms
Errors
Power
Cals
VIEW LOGBOOK
Dual input analyzer only
VIEW CLOCK
Date 01:01:03
Time 12:00
*
Displayed only if
Probe Type is set to Redox or ORP
CONFIG.DIAGS
Section 5.4, Page 33
Config. Sensor A
A: pH Glass
A: Ref. Checking
A: Ref. Alarm
Config. Sensor A Config. Sensor B
B: pH Glass
B: Ref. Checking
B: Ref. Alarm
Use the Menu Key
to scroll through
the Menus
CONFIG.SENSORS
B: Probe Type
B: Diff. Input
B: Electrode
B: Temp. Comp
B: Temp. Sensor
B: Preset Temp.
B: Sample Comp.
B: Sample Coeff.
Section 5.3, Page 30
B: Set Min Slope
Config. Sensor B
Config. Sensor A
A: Probe Type
A: Diff. Input
A: Temp. Comp
A: Temp. Sensor
A: Preset Temp.
A: Sample Comp.
A: Sample Coeff.
A: Set Min Slope
A: Electrode
A: Enable Cals B: Enable Cals
**
SENSOR CAL. Cal. User Code Sensor Cal. A
A: Buffer Method
A: Immerse Buf.1
A: Cal. Buffer 1
A: Immerse Buf.2
A: Cal. Buffer 2
A: Calibration
Section 4.1, Page 19
Set Auto Buffers
Buffer Type
Set Buffer 1
Set Buffer 2
A: Slope & Check
Sensor Cal. B
B: Buffer Method
B: Immerse Buf.1
B: Cal. Buffer 1
B: Immerse Buf.2
B: Cal. Buffer 2
B: Calibration
B: Slope & Check
A: Enter Point 1
A: Enter Point 2
B: Enter Point 1
A: Enter Point 5
A: Enter Point 4
A: Enter Point 3
B: Enter Point 2
B: Enter Point 5
B: Enter Point 4
B: Enter Point 3
#### 100% ####
#### 100% ####
#### 100% ####
#### 100% ####
Note. Sensor calibration parameters shown above
are for Automatic, 2-point calibration only. For other
calibration options, refer to Section 4.1.
Available only if option board fitted and
analog features enabled  see Section 7.3
