ABB AX400 Series User Manual

Single and dual input analyzers for pH/Redox (ORP)
AX416, AX436, AX460, AX466 & AX468 7 Calibration
IM/AX4PH Rev. P 61

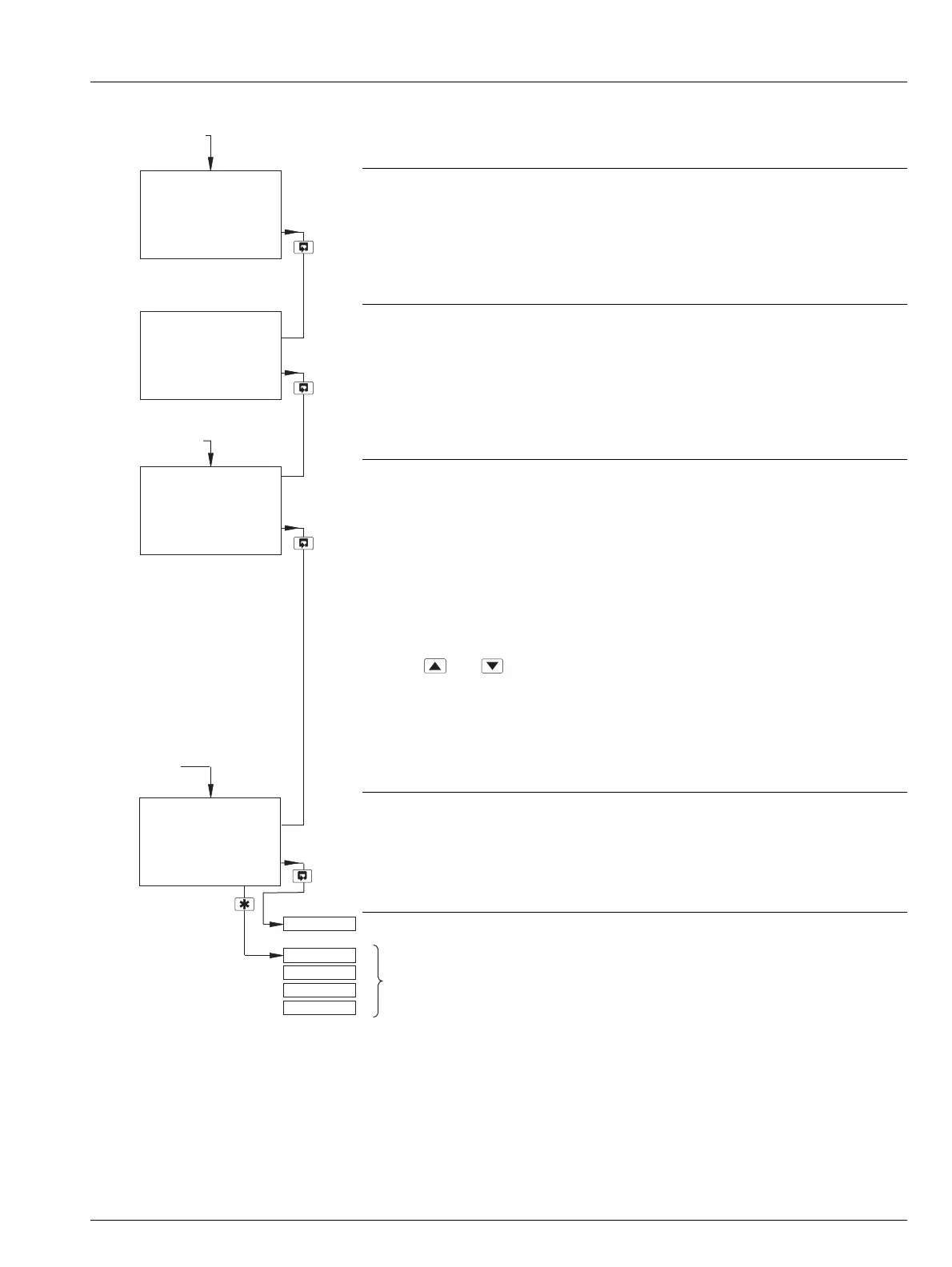

Calibrate Output 3
Note.
 Output 3 (and Output 4) calibration is applicable only if the Option board is fitted
and analog features enabled – see below.
 Output 3 calibration is identical to Output 2 calibration.
Calibrate Output 4
Note. Output 4 calibration is identical to Output 3 calibration.
Configure Option Board
Note.
 This frame is displayed only if an option board is fitted.
 The software detects if an option board is fitted but cannot detect the additional
features available.
 If an option board is fitted, the correct selection must be made below to enable
use of the available features. If an incorrect selection is made, the software
menus and frames associated with that option are displayed in the Operating
and Configuration pages but the features do not work.
Use the and keys to enable the features for the type of option(s) fitted:
Analog
Pb Dp
Analog + Pb Dp
–
–
–
Analog features enabled (comprising two additional
analog outputs, two additional alarm relays, clock and
logbook facility).
Profibus-DP digital communications features enabled.
Both analog and Profibus-DP features enabled.
Alter Factory Code
Set the factory settings access code to a value between 0000 and 19999.
Return to main menu.
Operating Page – see Section 2.3, page 6.
Cal. Output 3
-----
Cal. Output 4
-----
Option Board
Analog
-----
Pb Dp
Alter Fact. Code
0000
Monitoring pH
FACTORY SETTINGS
Option Board
Fitted and Analog
Features Enabled
Option Board
Not Fitted
Redox (ORP)
Dual Redox
pH/Redox (ORP)
Option Board
Fitted, Additional
Features Disabled
