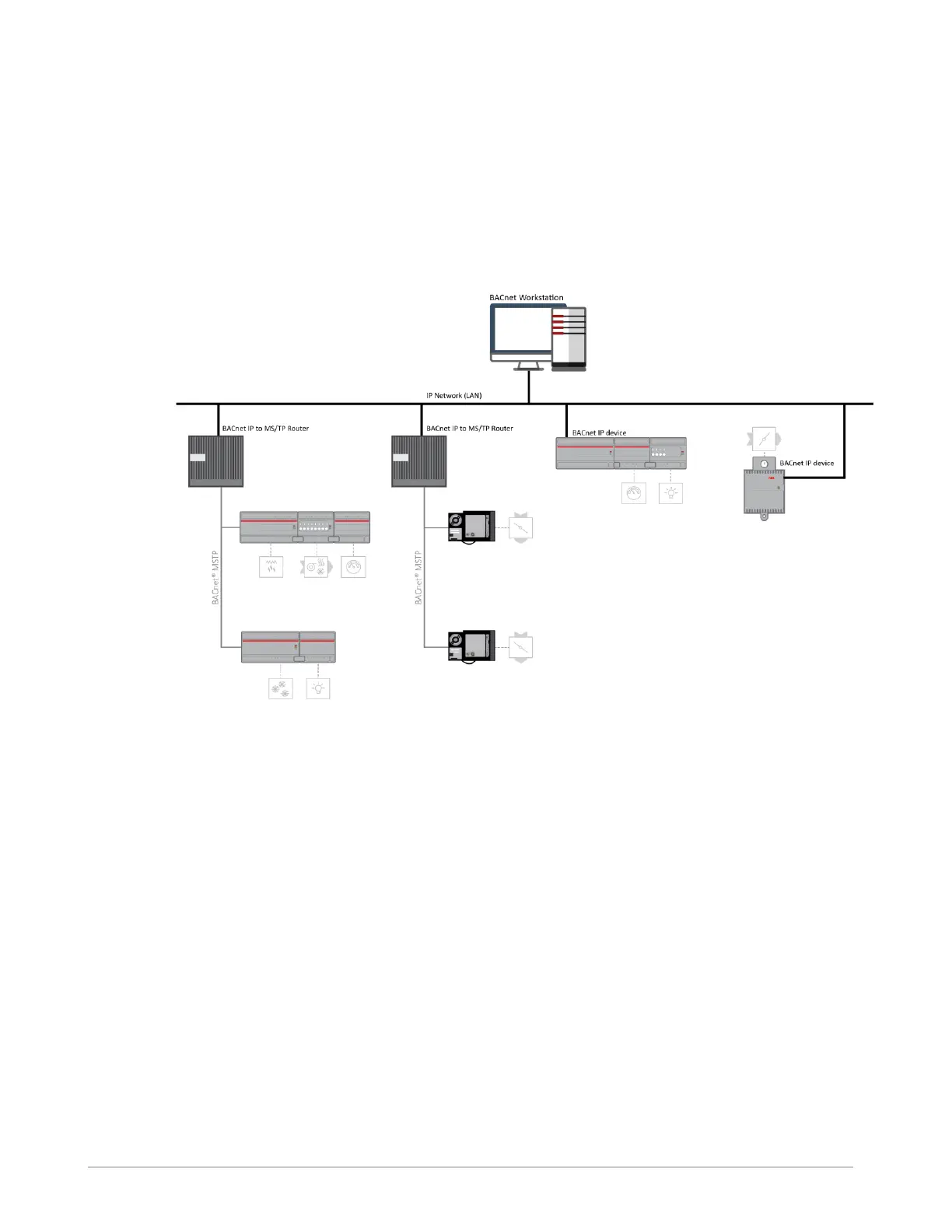

BACNET TOPOLOGY
A typical BACnet Network consists of devices connected to physical networks. Each device is a separate piece
of hardware and has a physical connection to the network. Devices are given a unique Device Instance Number
which can be a number between 0 and 4194302. BACnet MS/TP devices have additional addressing
designations called MAC addresses. For most users it is the Device Instance Number which is used as a
reference, but the combination of the Network Number and MAC address of an MS/TP device may be
configured by a System Integrator to avoid any MAC address conflicts on the EIA-485 network.
