Chapter 2 – Twelve–Pulse Technology
II F2
2 - 4 DCS 600 Manual for 12 – Pulse Operation

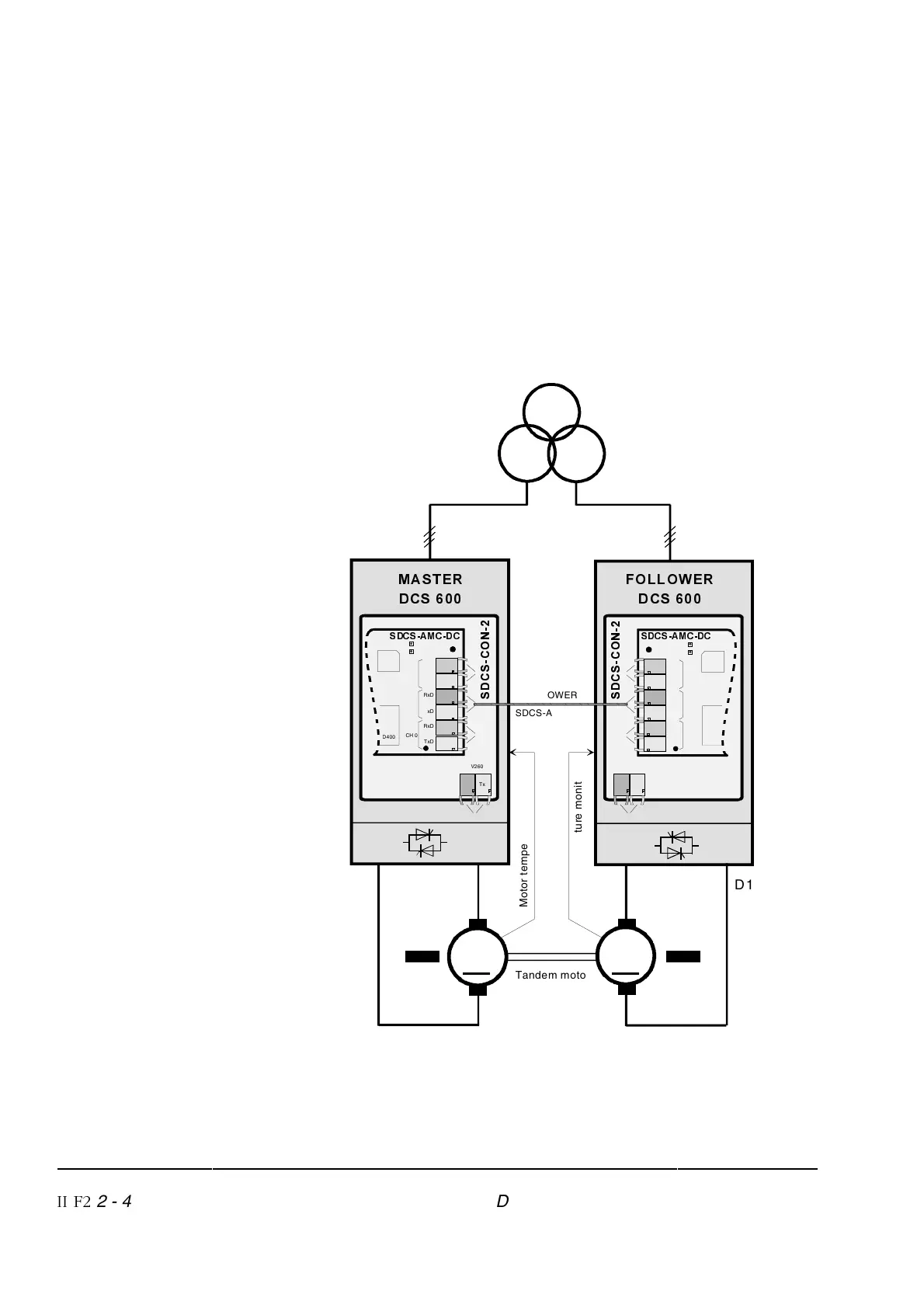

12 – pulse configura-
tion with master /
follower link used for
tandem motors
In this combination speed control is performed by the master
whereas current and field control are carried out by the master and
the follower. Each motors is supplied with a 6 – pulse current. But
the line current on the primary side of the power transformer is a
12 – pulse current.
Note: The 12 – pulse link
(V260) is not used in this configuration.
Required settings of master-follower configuration are
not handled in this manual!
For safety reasons a protection against shaft breakdown
and overspeed of the follower must be considered.
0$67(5
'&6
C1
D1
C1 D1
Tandem motors
∆
<
)2//2:(5
'&6
6
'
&
6
&
2
1
D200
6'&6$0&'&
CH 3
TxD
RxD
CH 2
TxD
RxD
CH 0
TxD
RxD
D400
V260
TxDRxD
Motor temperature monitoring
D200
6'&6$0&'&
CH 3
TxD
RxD
CH 2
TxD
RxD
CH 0
TxD
RxD
D400
6
'
&
6
&
2
1
V260
TxDRxD
MASTER-
FOLLOWER
SDCS-AMC-DC
Channel (CH) 2
Motor temperature monitoring
0 0
Figure 2/6
