Chapter 3 – Twelve–Pulse Parallel
Configurations with DCS 600
DCS 600 Manual for 12 – Pulse Operation
II F2
3 - 1
3.1 Twelve–pulse parallel hardware configurations

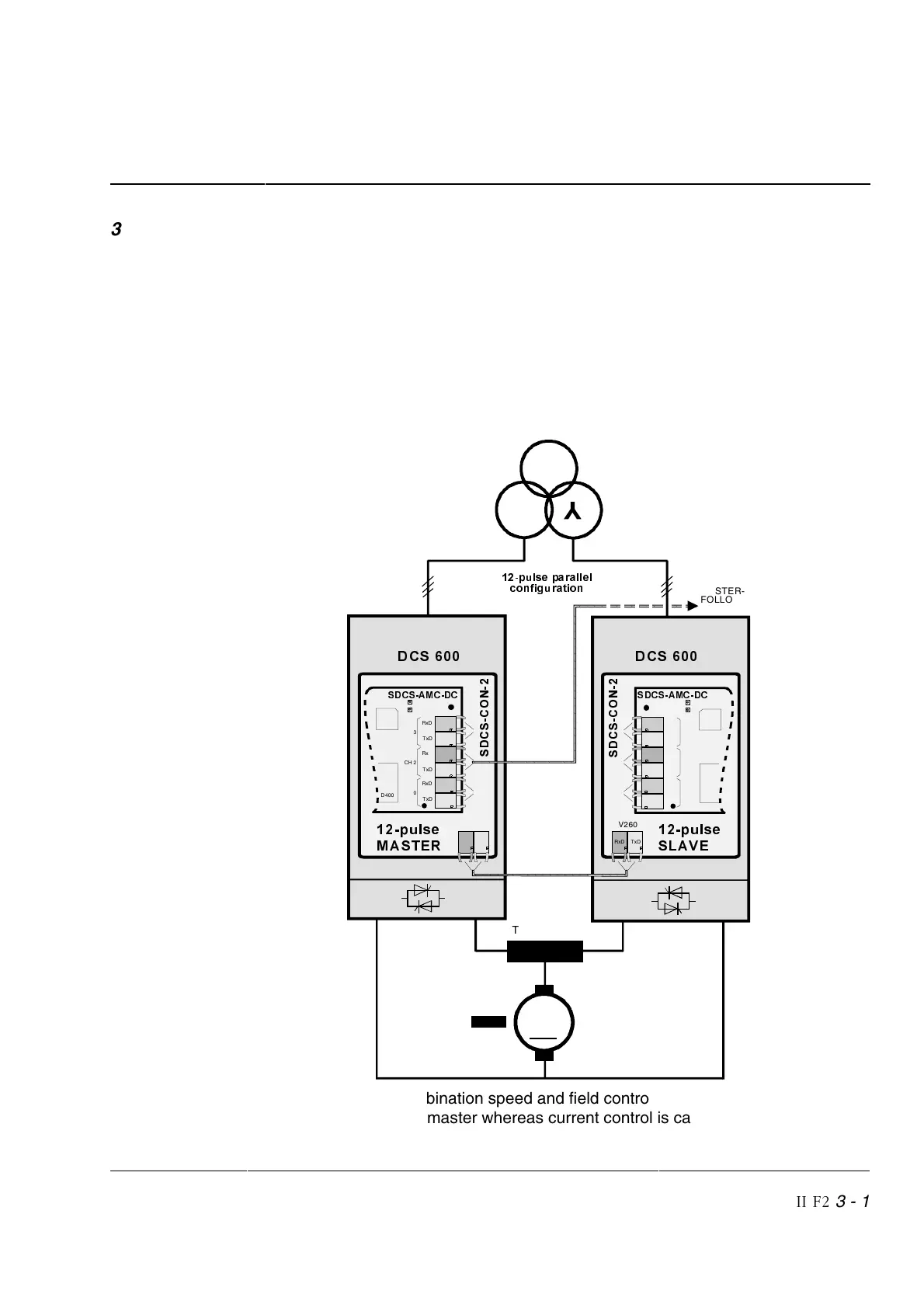

The following figures show the most significant features of the 12 –
pulse
parallel hardware configurations with two DC thyristor power
converters of the
DCS 600 series combined with the corresponding
12 – pulse control structures:
• Connection of converters in parallel configuration
• Use of a T-reactor [for 12 – pulse parallel configurations]
• Master / Follower link [channel 2 on SDCS-AMC-DC boards]
• Master / Slave 12 – pulse communication link [channel V260 on
SDCS-CON-2 boards]
12 – pulse parallel
configuration with
master / slave
12 – pulse com-
munication link
C1D1
C1
D1
∆
'&6
6
'
&
6
&
2
1
D200
6'&6$0&'&
CH 3
TxD
RxD
CH 2
TxD
RxD
CH 0
TxD
RxD
D400
V260
TxDRxD
MASTER-
FOLLOWER
SDCS-AMC-DC
Channel (CH) 2
D200
6'&6$0&'&
CH 3
TxD
RxD
CH 2
TxD
RxD
CH 0
TxD
RxD
D400
6
'
&
6
&
2
1
V260
TxDRxD
T-REACTOR
12-pulse Link
(max.10 m)
SXOVH SDUDOOHO
FRQILJX UDWLRQ
MASTER-
FOLLOWER
(further drives)
'&6
SXOVH
0$67(5
SXOVH
6/$9(
0
Figure 3/1
In this combination speed and field control are performed by the
12 – pulse master whereas current control is carried out by the master
and the slave.
