ABB DCS800 Installation And Start-Up Manual

16
Hardware
3ADW000197R0101 DCS800-R Sel e a
Dimensions main electronic housing
The electronics housing is just equipped with these components mentioned before.
There is no cooling fan. Nevertheless based on the components build in natural
convection is necessary to keep the temperature of the used components within
the limits. Because of that it is important to mount the housing as shown on the
figure before and to make sure the convection is not blocked.
Weight: 7 kg
90
100
∅
4.2
DCS8-R dim draw.dsf
40
80 104
46.2
198
264
145.3
114
34.8
38.8
165
270 250
225
f. M6
43.5
370.5
350
307
10.5
M6
20

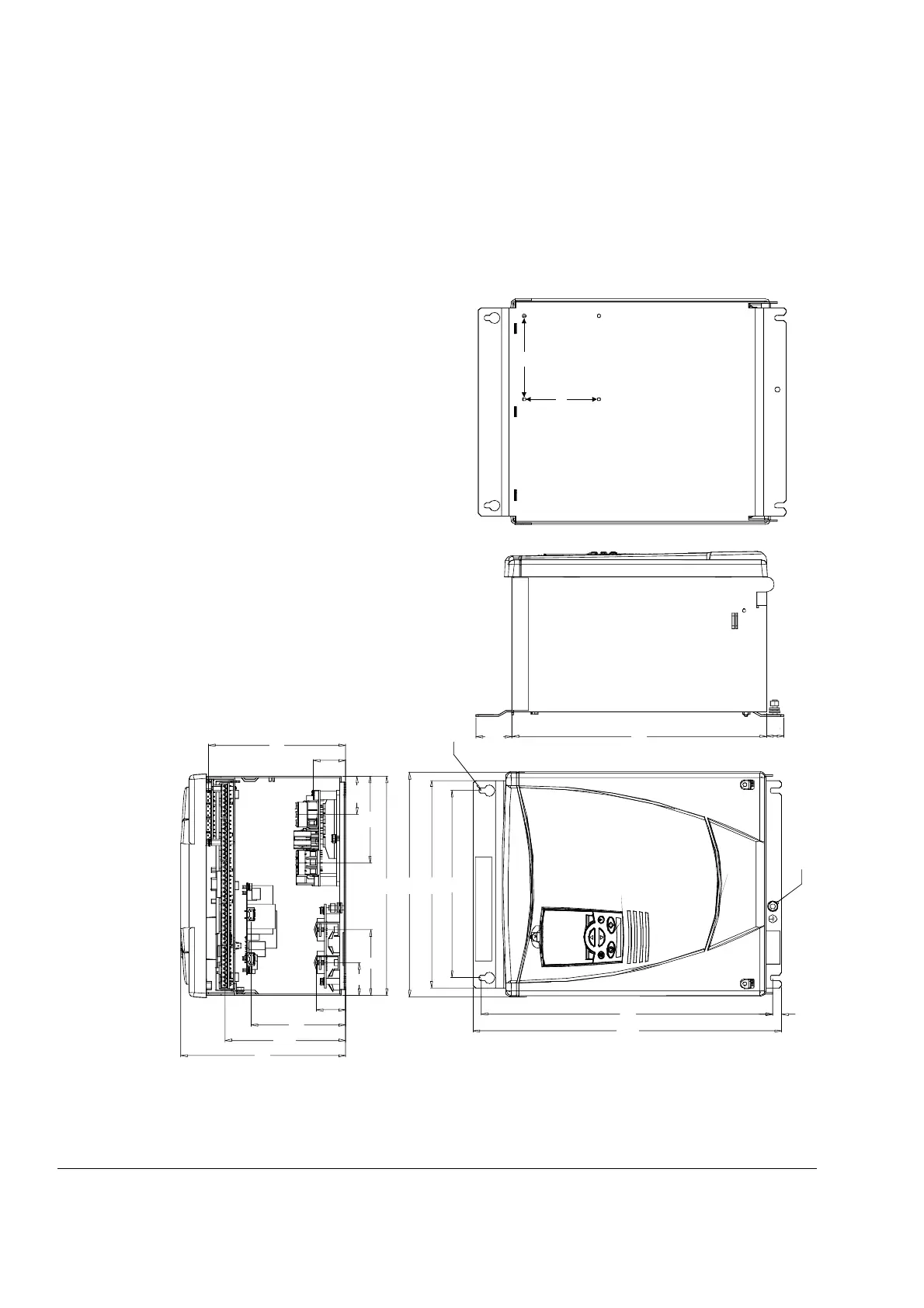

Dimensional drawing of the DCS800-R

ABB DCS800 Specifications

General

Control Type	Digital
Supply Voltage	380 ... 690 V AC
Input Voltage Range	380 V to 690 V AC
Control Mode	Torque, Speed
Cooling Method	Air-cooled
Communication Protocols	Modbus, Profibus, CANopen
Communication Options	Ethernet
Protection Class	IP21, IP54
Enclosure Rating	IP00, IP21, IP54
Protection	Overcurrent, Overvoltage, Overtemperature
Ambient Temperature	0 to 40°C
Field Supply	Integrated or External
