10
Basic Selection
3ADW000197R0101 DCS800-R Sel e a
Type coding and accessories
There is only one mechanical construction for all the different versions of the kit. It
basically serves as a cover for that part named DCS800-R0x on the next figure.
Ordering of the kit is done with the ordering code shown on the right page. The op-
tions available for the Rebuild kit are identical as for a DCS800-S0x converter.
Some options (e.g. +K454 adapter module for PROFIBUS DP communication) will
be build in if ordered, some will come within the kits box and others need to be
specified seperate and will come in a separate box.
All applications, which can be done with a DCS800 converter, can be done with
this DCR kit too, as long as the components, necessary for that application can be
used for both systems. Engineering help is given within the DCS800 converter
module´s documentation (see inner page of the jacket of this manual). This manual
just focuses on items related to the engineering of the Rebuild kit.
T2
F2
≤
500V
POW 1
POW-4
DCS800-R00-0000-00
FEX-425 Internal
a or b
115/230 V
SDCS-CCB4
8
3
8
4
83 7
3
Panel
CDP 312
-NDPA-02
-NDPC-12
-NISA-03
(ISA)
NDBU95
(PCMCIA)
Master/
Follower
AIMA
Slot1
Slot2
Slot3
NDBU95
IOB-2x IOB-3
CON-4
RDIO
RAIO
X2
X1
X3 X4 X5 X6 X7
DSL
X51
24V-
DCS800 CP
X34
PC +
CoDeSys
DWL
DSL
Memory Card
RS232
RJ45
X52 X53
Ch3
Ch2
Ch1
Ch0
X19
COM-8
1
optical fibre
optical fibre
twisted pair
PC +
DriveWindow
Overriding
control
Door
mounting
kit
Door
mounting
kit
Slot 1
Slot 2
Slot 3
Slot 4
Advant
controller
DCSLink
Fieldbus
adapter Rxxx
or RDIO/RAIO

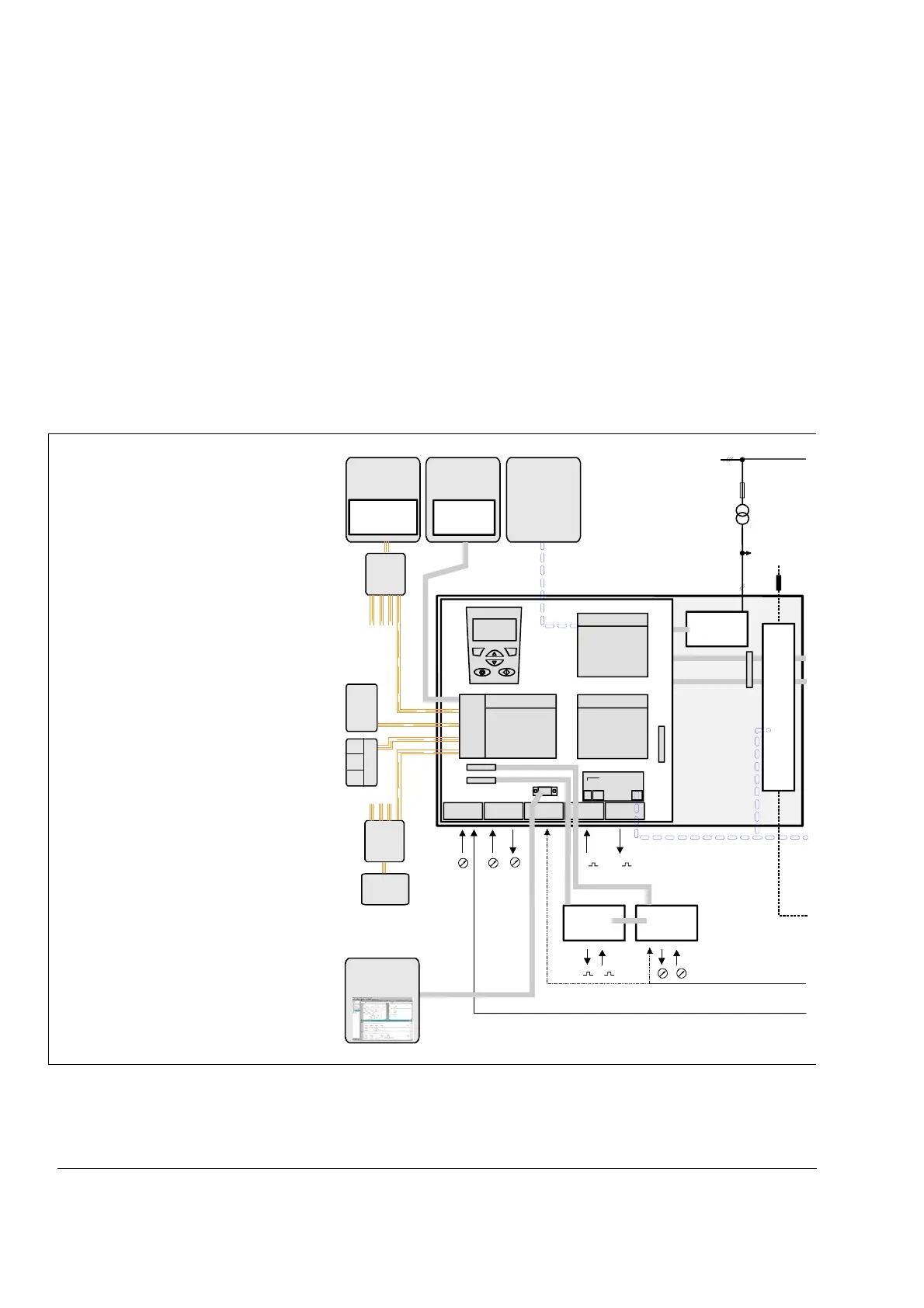

Figure 1: Overview of DCS800-R System
