Basic Selection
3ADW000197R0101 DCS800-R Sel e a
Ordering code:
DCS800
0000 01
+
-
DC Drives
Product family
DCS800 converter
Rebuild kit
Bridge type
1 = single (2Q)
2 = anti (4Q)
Number of parallel / antiparallel thyristors
01 = 1 bridge
02 = 2 bridges in parallel
03 = 3 bridges in parallel
04 = 4 bridges in parallel
Options
+xxxx codes according
list for add-on options
selectable option
R0
-
1
-
0000
DCS8-R_sys_ovw.dsf
PIN-48
REB-3
PIN-48
PIN 1x
PIN-51
REB-2
REB-1
ab
existing field exciter
a or b b a
QUINT-PS
~
-
~
-
T
T
≤
990V
Existing parts
Residual current detection
M
M
DCF 803-0035
to motor field
DCS800-S0x as field exciter
DCF 803-0050 / 804-0050

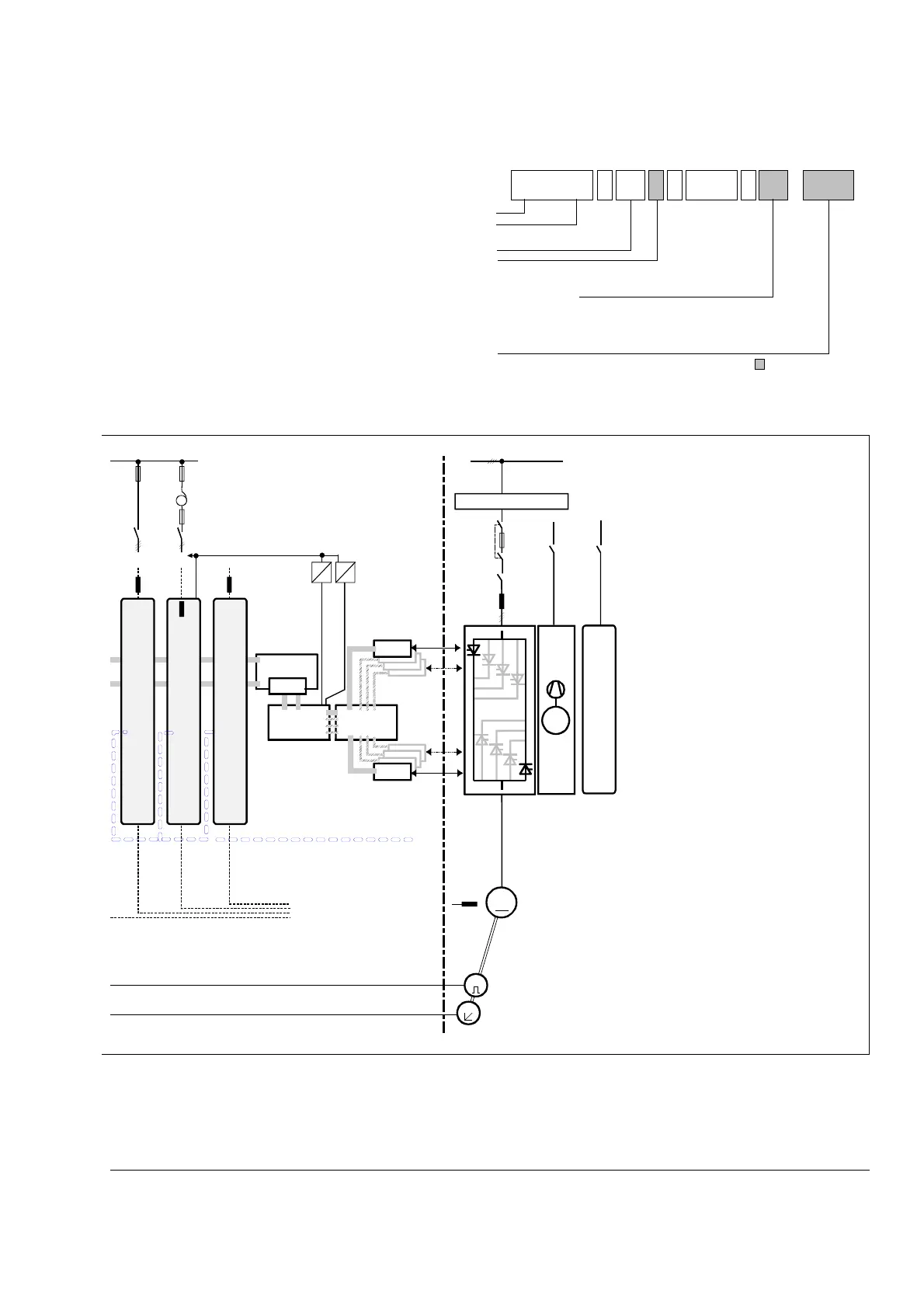

Overview of DCS800-R System

ABB DCS800 Specifications

General

Control Type	Digital
Supply Voltage	380 ... 690 V AC
Input Voltage Range	380 V to 690 V AC
Control Mode	Torque, Speed
Cooling Method	Air-cooled
Communication Protocols	Modbus, Profibus, CANopen
Communication Options	Ethernet
Protection Class	IP21, IP54
Enclosure Rating	IP00, IP21, IP54
Protection	Overcurrent, Overvoltage, Overtemperature
Ambient Temperature	0 to 40°C
Field Supply	Integrated or External
