55
Safety Instructions
3ADW000195R0101 DCS800 Service Manual e a

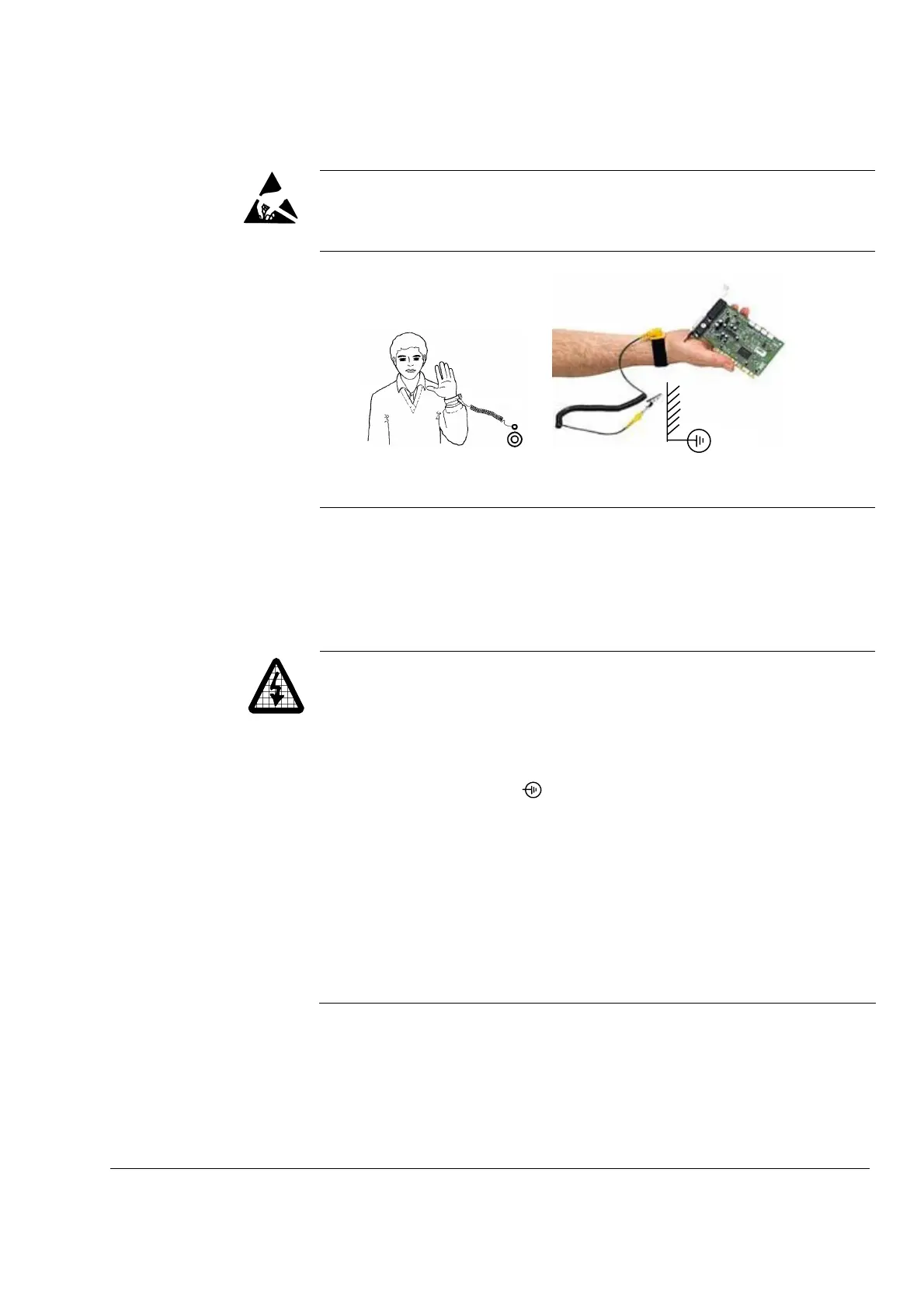

WARNING! The printed circuit boards contain components sensitive to
electrostatic discharge. Wear a grounding wrist band when handling
the boards. Do not touch the boards unnecessarily.
Use grounding strip:
ABB order no.: 3ADV050035P0001
Grounding
These instructions are intended for all who are responsible for the
grounding of the drive. Incorrect grounding can cause physical injury,
death or equipment malfunction and increase electromagnetic interfer-
ence
• Ground the drive, motor and adjoining equipment to ensure per-
sonnel safety in all circumstances, and to reduce electromagnetic
emission and pick-up.
• Make sure that grounding conductors are adequately sized as re-
quired by safety regulations.
• In a multiple-drive installation, connect each drive separately to
protective earth (PE) .
• Minimize EMC emission and make a 360° high frequency ground-
ing of screened cable entries at the cabinet lead-through.
• Do not install a drive with EMC filter on an ungrounded power sys-
tem or a high resistance-grounded (over 30 ohms) power system.
Note:
• Power cable shields are suitable for equipment grounding conduc-
tors only when adequately sized to meet safety regulations.
• As the normal leakage current of the drive is higher than 3.5 mA
AC or 10 mA DC (stated by EN 50178, 5.2.11.1), a fixed protective
earth connection is required.
