ABB DCS800 Installation And Start-Up Manual

13
Hardware
3ADW000197R0101 DCS800-R Sel e a
Hardware
This chapter gives information about all the components and boards being exclu-
sively used at the DCS800-R0x kit. Components which are used at DCS800-S0x
converter modules are just mentioned within that chapter, but not described in de-
tail. In case those components need special handling it will be listed here. This for
example is valid for measuring actual signals at the existing power stack or doing
the galvanic isolation for the firing pulse transmission.
In addition to that environmental conditions, dimensions and some hints are listed
for better and straighter forward engineering.
All other components which may come or may had been ordered together with the
kit are described in detail either within the DCS800 Hardware Manual or within
their dedicated documentation.
Basic components of the DCS800-R kit
The kit is ordered according to the type designation at chapter Basic Selection.
The delivery can be subdivided into several parts, mostly two:
- rebuild kit´s main electronics already pre-assembled
- electronic boards and cables to measure signals at the power part and control
the existing thyristors; this will come as loose parts
The interface towards the PLC can be done via inputs / outputs. In this case op-
tional parts may be added.
Housing for main electronics

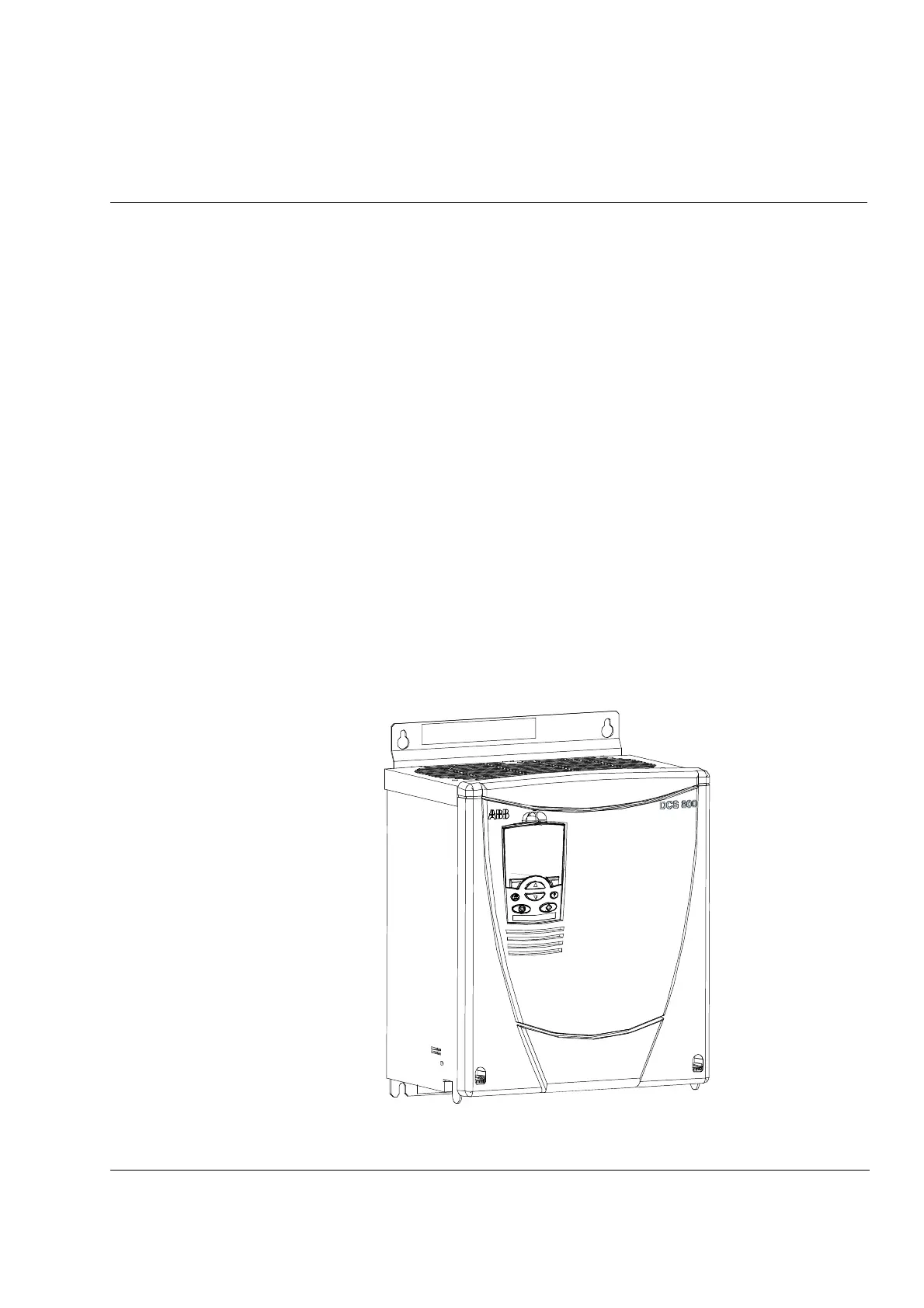

DCS800-R0x kit´s main electronics, named DCS800-R00-0000-00

ABB DCS800 Specifications

General

Control Type	Digital
Supply Voltage	380 ... 690 V AC
Input Voltage Range	380 V to 690 V AC
Control Mode	Torque, Speed
Cooling Method	Air-cooled
Communication Protocols	Modbus, Profibus, CANopen
Communication Options	Ethernet
Protection Class	IP21, IP54
Enclosure Rating	IP00, IP21, IP54
Protection	Overcurrent, Overvoltage, Overtemperature
Ambient Temperature	0 to 40°C
Field Supply	Integrated or External
