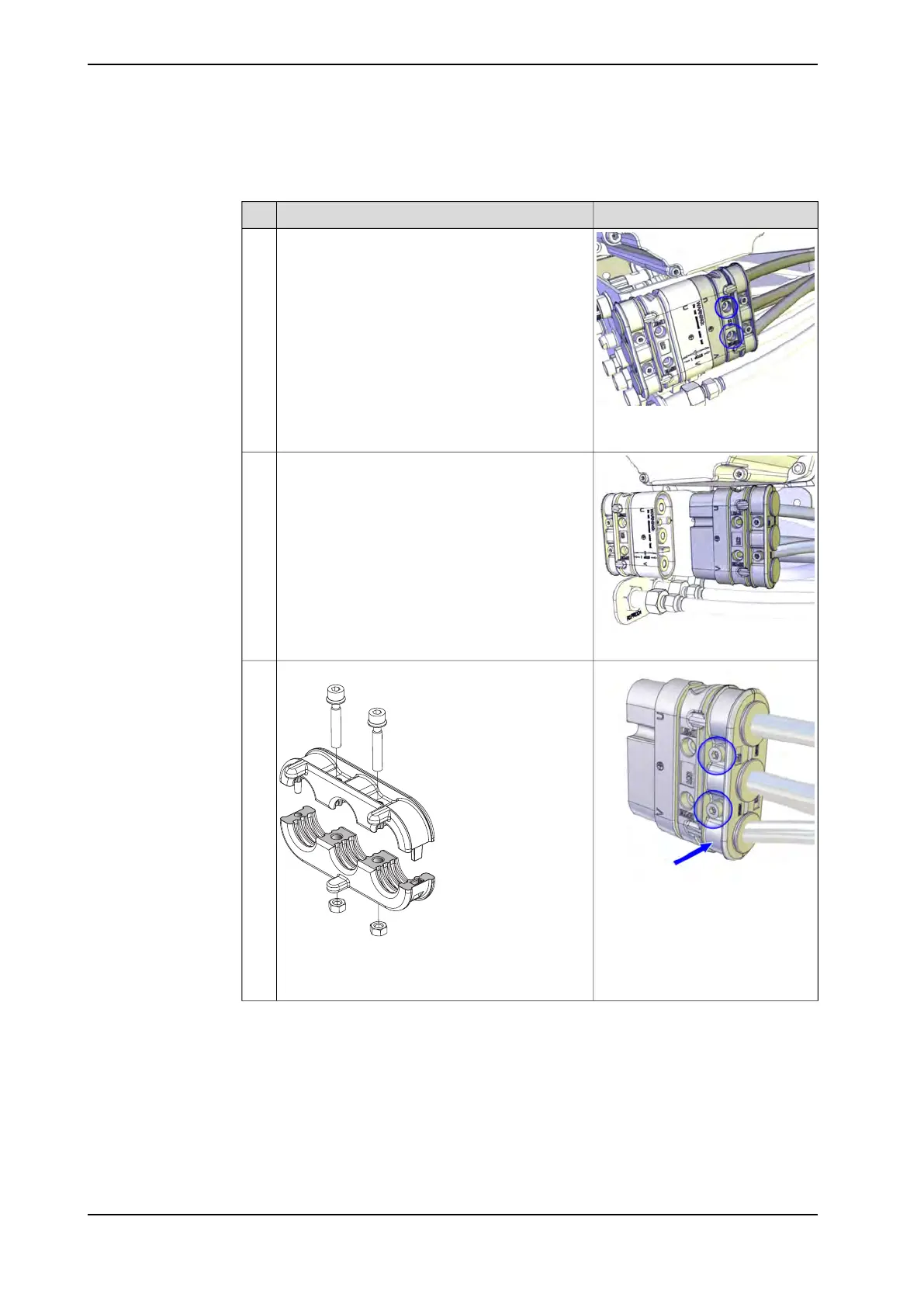

Disconnecting the weld connector
Only valid for IRBDP SW6 UI.
NoteAction
xx1200000089
Remove the screws securing the weld connector
to the connection plate.
1
Screw, M5x40 8.8-A2F (2 pcs)
xx1200000075
Disconnect the weld connector.2
xx1200000058
Remove the cable strain relief.
xx1300000836
Figure 4.2:
3
Screw, M5x25 8.8-A2F (2 pcs)
Continues on next page
192 Product manual - DressPack/SpotPack IRB 8700
3HAC055802-001 Revision: B
© Copyright 2015-2017 ABB. All rights reserved.
4 Repair
4.2.4 Replacing the cable packages IRBDP SW6 UI and IRBDP MH6 UI LeanID
Continued
