NoteAction
xx1500003021

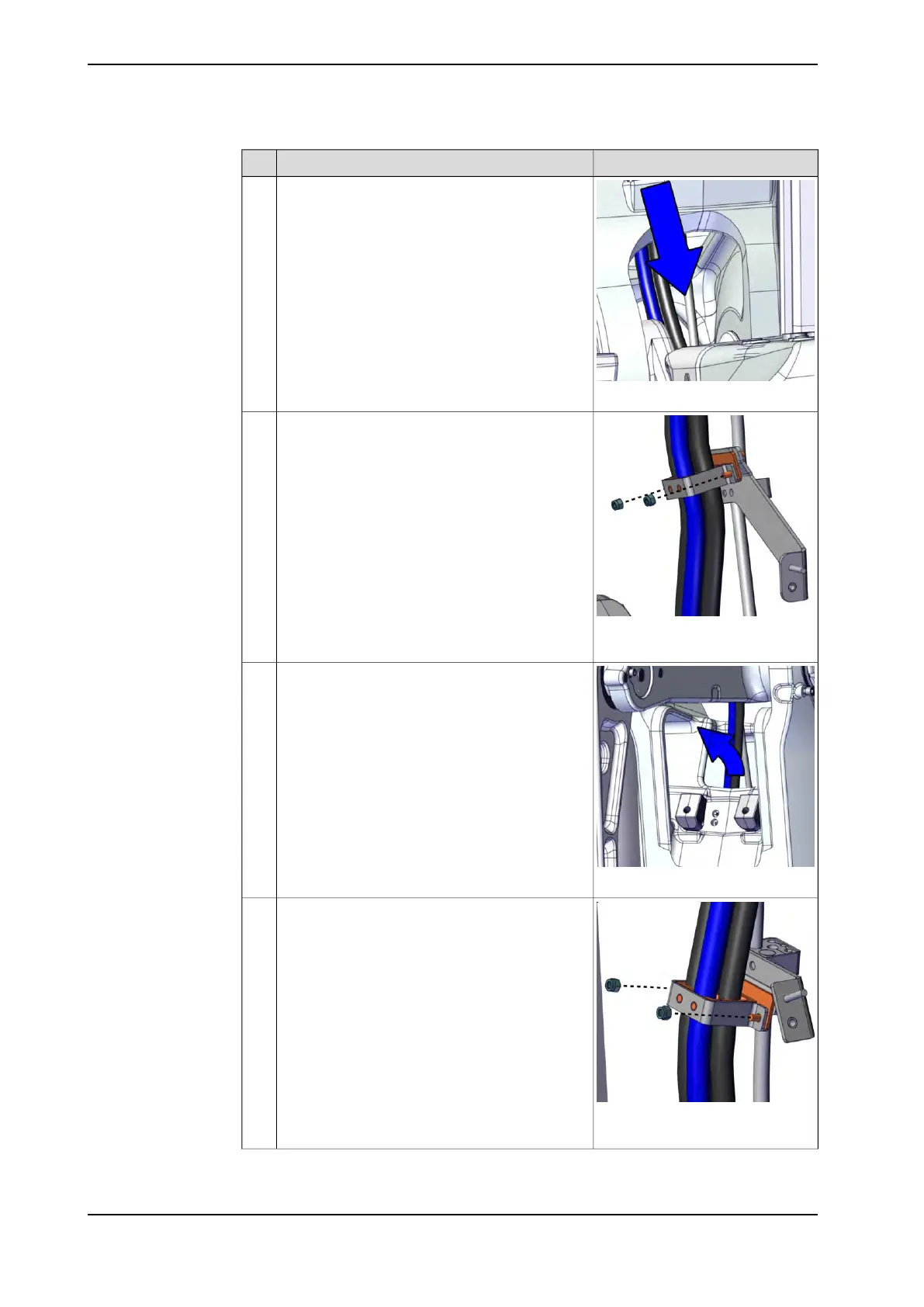

Gently pull out the motor cabling downwards to
be able to fit the dresspack cables on the cabling
bracket inside lower arm.
8
xx1500003023
Fit the metal clamp.9
M6 Steel 8-A2F (2 pcs)
xx1500003024
Pull the motor cabling gently upwards until the
motor cabling bracket is reachable.
10
xx1500003025
Fit the metal clamp.11
M6 Steel 8-A2F (2 pcs)
Continues on next page
70 Product manual - DressPack/SpotPack IRB 8700
3HAC055802-001 Revision: B
© Copyright 2015-2017 ABB. All rights reserved.
2 Installation
2.4.2.1 Fitting the cable package IRBDP MH LI
Continued
