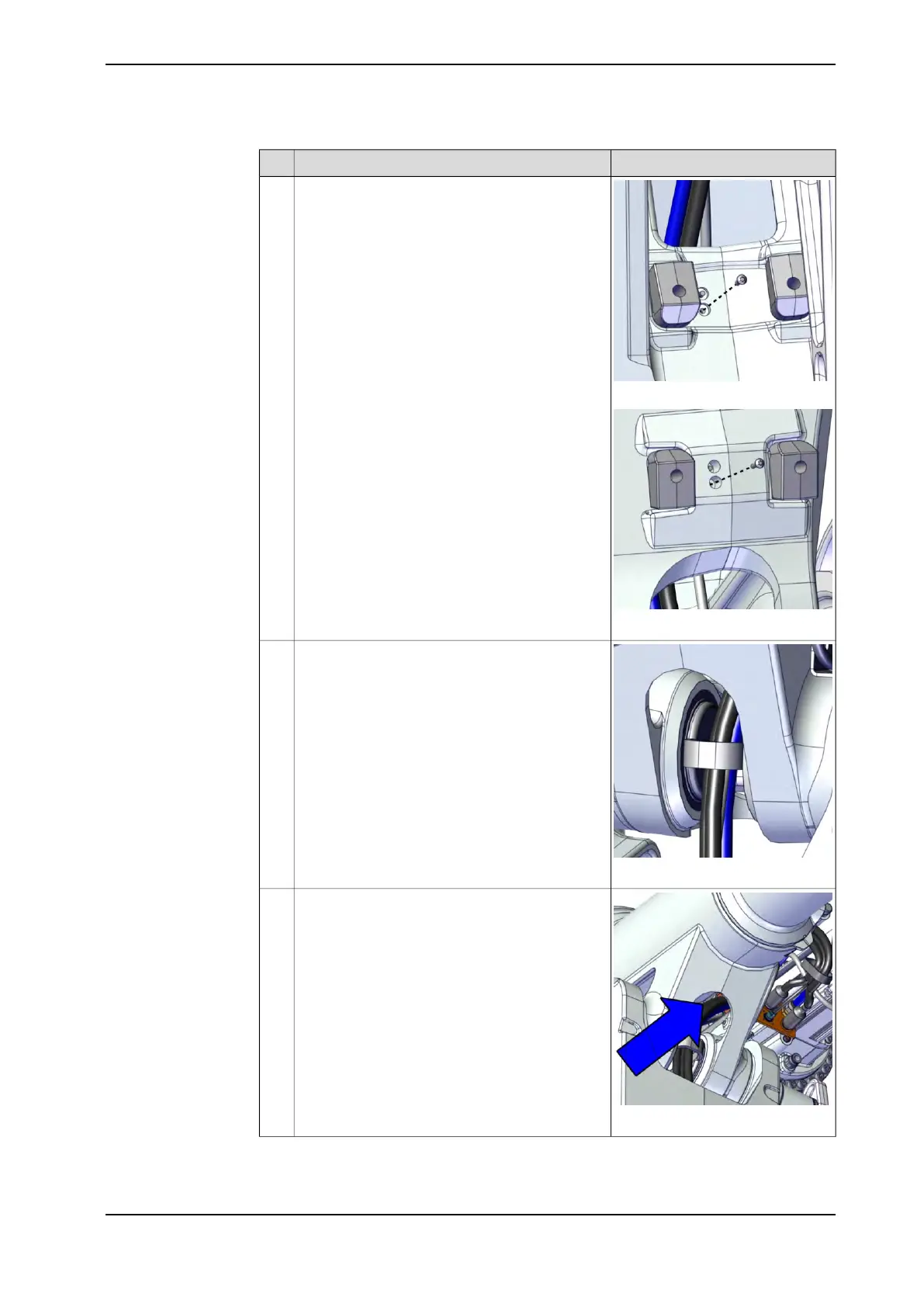

NoteAction
xx1500003019
Fit the motor cabling brackets inside lower arm.12
xx1500003020
xx1500003027
Place the cables in the cable guide.13
xx1500003032
Push the cables out of axis 3-4 beside the motor.14
Continues on next page
Product manual - DressPack/SpotPack IRB 8700 71
3HAC055802-001 Revision: B
© Copyright 2015-2017 ABB. All rights reserved.
2 Installation
2.4.2.1 Fitting the cable package IRBDP MH LI
Continued
