NoteAction

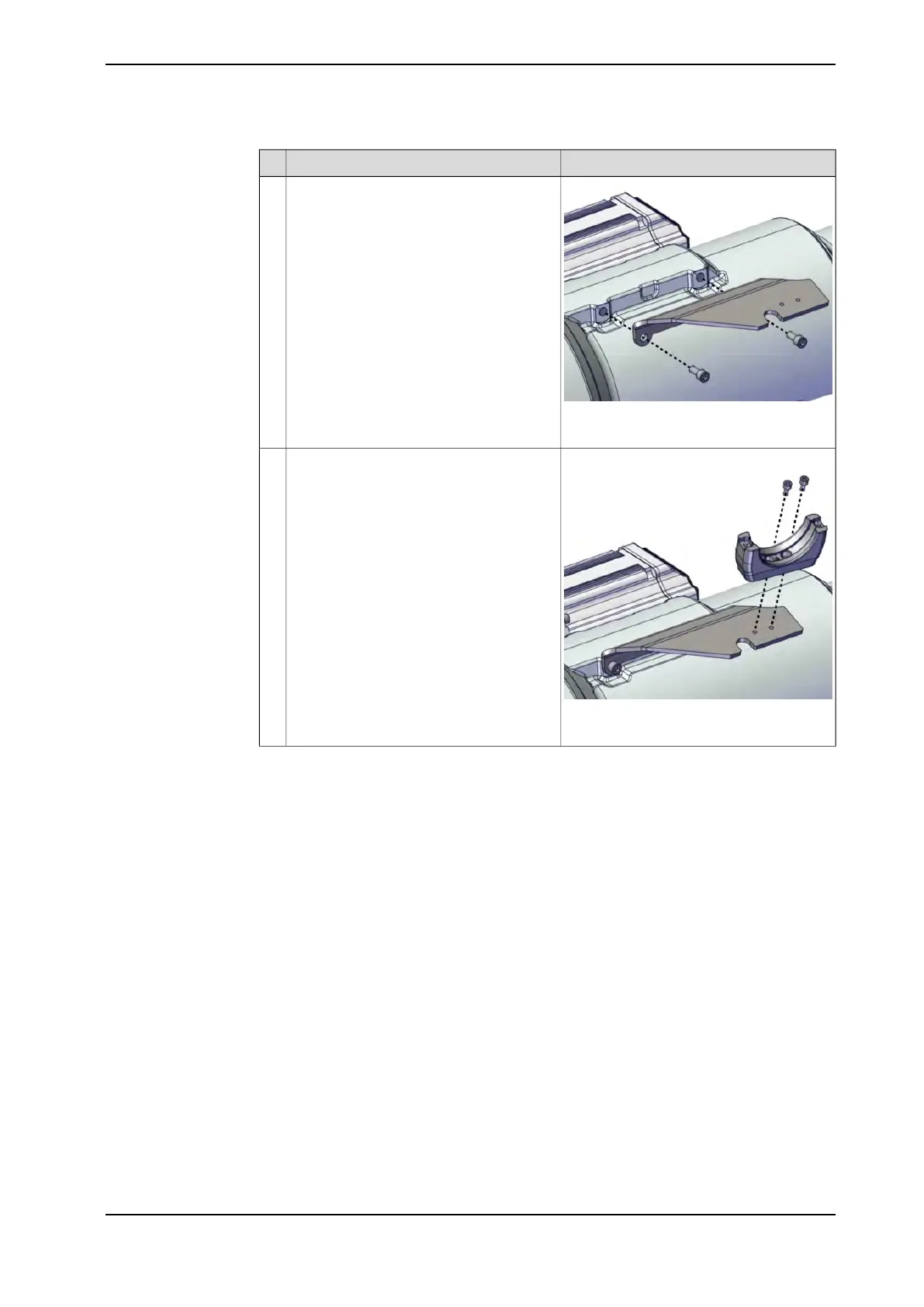

xx1500002610
Fasten bracket on axis 4. Lock screws with
Locking liquid Loctite 243.
5
M12x25 8.8-A3F (2 pcs)
xx1500002611
Fasten lower ball joint housing. Lock
screws with Locking liquid Loctite 243.
6
M8x16 8.8-A2F (2 pcs)
Continues on next page
Product manual - DressPack/SpotPack IRB 8700 87
3HAC055802-001 Revision: B
© Copyright 2015-2017 ABB. All rights reserved.
2 Installation
2.4.4.1 Fitting attachments of the IRBDP SW6 LI, Lean ID
Continued
