NoteAction
xx1500002608

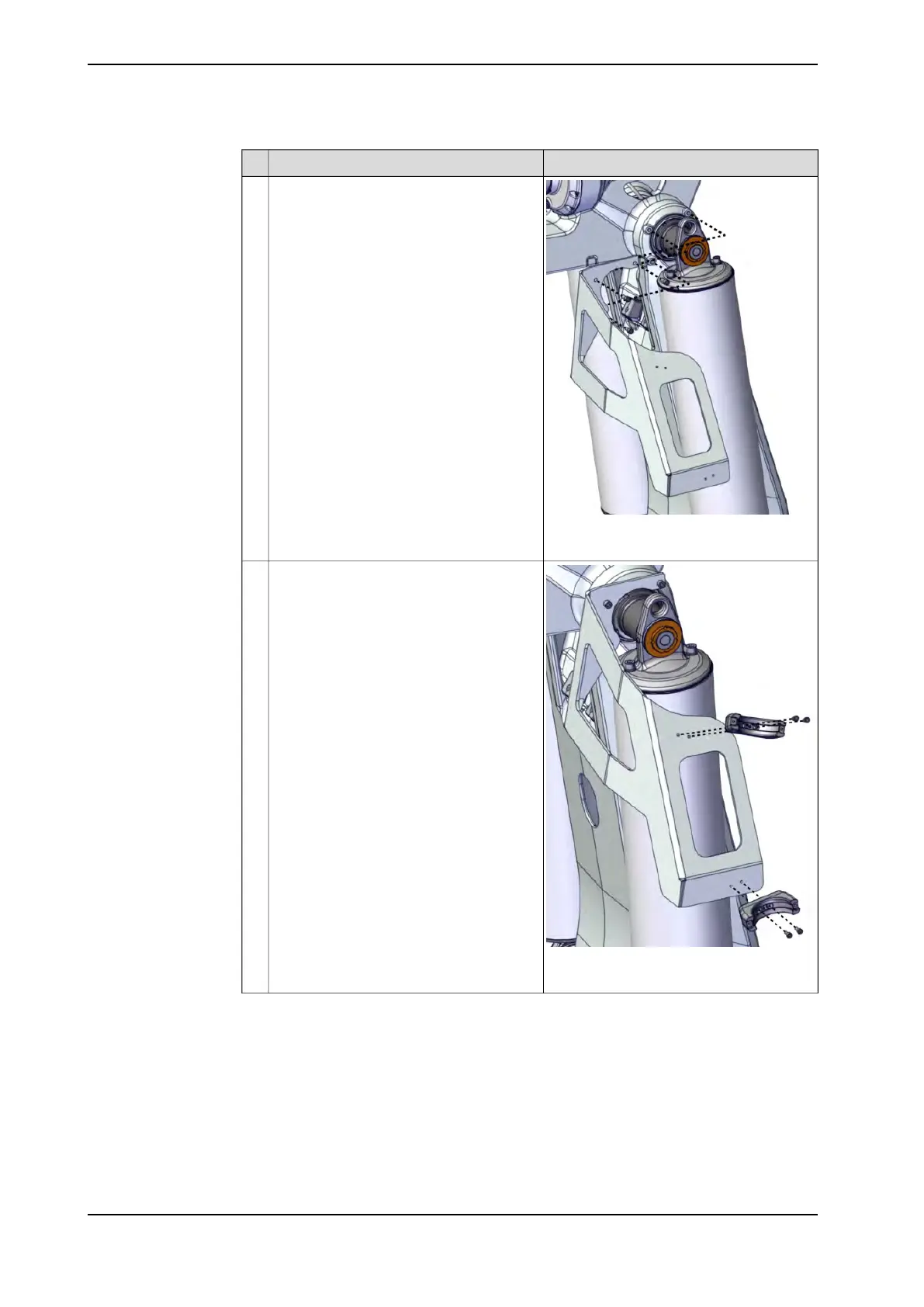

Fasten the bracket on the lower arm. Lock
screws with Locking liquid Loctite 243.
3
M12x25 8.8-A3F (3 pcs)
xx1500002609
Fasten lower ball joint housings (2 pcs) on
the bracket. Lock screws with Locking li-
quid Loctite 243.
4
M8x16 8.8-A2F (4 pcs)
Continues on next page
86 Product manual - DressPack/SpotPack IRB 8700
3HAC055802-001 Revision: B
© Copyright 2015-2017 ABB. All rights reserved.
2 Installation
2.4.4.1 Fitting attachments of the IRBDP SW6 LI, Lean ID
Continued
