F L O W- X INS T R U C T I O N M A N U A L | I M/ F L O W X - EN
CONNECTOR A
Pin
Function
Pin
Function
1
Com 1 - | Sig+| Tx+ *
2
Com 1 Tx| Sig- | Tx- *
20
Digital 4
3
Com 1 - | - | Rx- *
21
0 V (Common)
4
Com 1 Rx| - | Rx+ *
22
Digital 5
5
24V out
23
0 V (Common)
6
Digital 1
24
Digital 6
7
0 V (Common) (Common)
25
0 V (Common)
8
Digital 2
26
Digital 7
9
0 V (Common)
27
0 V (Common)
10
Digital 3
28
Digital 8
11
0 V (Common)
29
0 V (Common)
12
Analog output 1
30
Analog output 2
13
Analog output common
31
Analog output common
14
Analog input common
32
Analog input 1
15
PRT 1 power +
33
Analog input common
16
PRT 1 signal +
34
Analog input 2
17
PRT 1 signal -
35
Analog input common
18
PRT 1 power -
36
Analog input 3
19
Analog input common
37
Analog input common
* RS-232 | RS-485 2 wire | RS-485 4 wire
Table 6-2 37-pin D-sub connector A pin-out Flow-X/P, Flow-X/C Flow-
X/K and Flow-X/R
CONNECTOR B
Pin
Function
Pin
Function
1
Com 2 - | Sig+| Tx+ *
2
Com 2 Tx| Sig- | Tx- *
20
Digital 12
3
Com 2 - | - | Rx- *
21
0 V (Common)
4
Com 2 Rx| - | Rx+ *
22
Digital 13
5
24V out
23
0 V (Common)
6
Digital 9
24
Digital 14
7
0 V (Common)
25
0 V (Common)
8
Digital 10
26
Digital 15
9
0 V (Common)
27
0 V (Common)
10
Digital 11
28
Digital 16
11
0 V (Common)
29
0 V (Common)
12
Analog output 3
30
Analog output 4
13
Analog output common
31
Analog output common
14
Analog input common
32
Analog input 4
15
PRT 2 power +
33
Analog input common
16
PRT 2 signal +
34
Analog input 5
17
PRT 2 signal -
35
Analog input common
18
PRT 2 power -
36
Analog input 6
19
Analog input common
37
Analog input common
* RS-232 | RS-485 2 wire | RS-485 4 wire
Table 6-3 37-pin D-sub connector B pin-out Flow-X/P, Flow-X/C Flow-
X/K and Flow-X/R
D-sub 9 connectors (serial communication)
Three D-sub 9-pin connectors are available on the Flow-X/P and
one on the Flow-X/C. The connectors are male, so the
connecting cable must have a female connector.
The 9-pin D-sub male connectors have the following pin
connections.

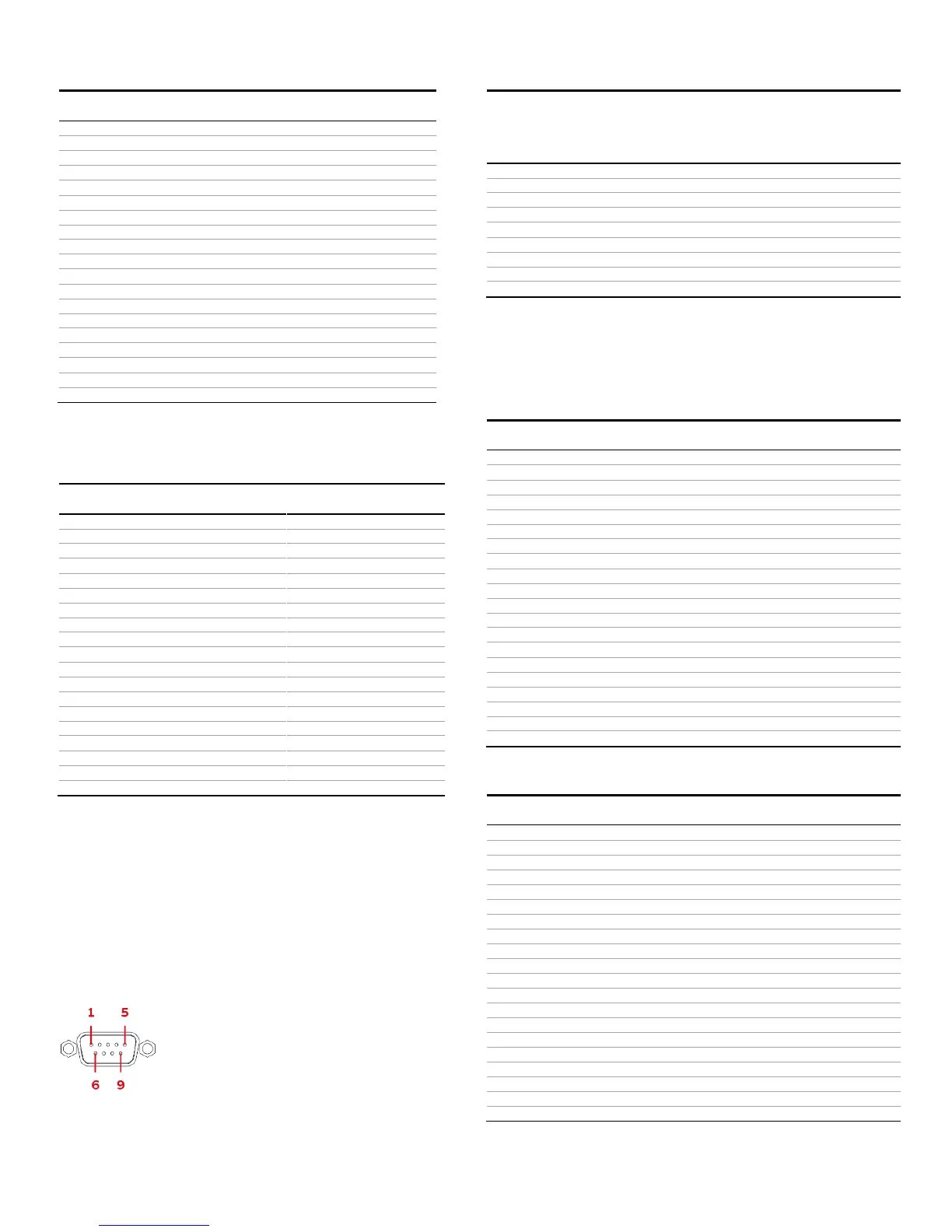

Figure 6-5 9-pin D-sub connector pin numbering
Pin
X/P v1 COM 1 /
X/P v2 COM 3 /
X/C COM 3
X/P v1 COM 2 /
X/P v1 COM 3 /
X/P v2 COM 1 /
X/P v2 COM 2
(RS-232 only)
232 | 485( 2wire) | 485 (4 wire)
1
- | - | Rx-
2
Rx
Rx | - | Rx+
3
Tx
Tx | Sig- | Tx-
4
- | Sig+| Tx+
5
0 V
0 V
6
7
RTS
8
CTS
9
Table 6-4 9-pin D-sub connector pin connections for Flow-X/P &
Flow-X/C
Screw terminals
These connectors are used with the Flow-X/S (Single) model.
X1A / X2A TERMINAL STRIP
Pin
Function
Pin
Function
1
24VDC out
21
Digital 9
2
0 V (Common)
22
0 V (Common)
3
Digital 1
23
Digital 10
4
0 V (Common)
24
0 V (Common)
5
Digital 2
25
Digital 11
6
0 V (Common)
26
0 V (Common)
7
Digital 3
27
Digital 12
8
0 V (Common)
28
0 V (Common)
9
Digital 4
29
Digital 13
10
0 V (Common)
30
0 V (Common)
11
Digital 5
31
Digital 14
12
0 V (Common)
32
0 V (Common)
13
Digital 6
33
Digital 15
14
0 V (Common)
34
0 V (Common)
15
Digital 7
35
Digital 16
16
0 V (Common)
36
0 V (Common)
17
Digital 8
37
24VDC out
18
0 V (Common)
38
0 V (Common)
19
24VDC out
39
24VDC out
20
0 V (Common)
Table 6-5 Screw terminal A pin-out for Flow-X/S
X1B / X2B TERMINAL STRIP
Pin
Function
Pin
Function
1
PRT 1 power +
21
Analog input 6
2
PRT 1 signal +
22
Analog input common
3
PRT 1 signal -
23
Analog output 1
4
PRT 1 power -
24
Analog output common
5
Analog input common
25
Analog output 2
6
PRT 2 power +
26
Analog output common
7
PRT 2 signal +
27
Analog output 3
8
PRT 2 signal -
28
Analog output common
9
PRT 2 power -
29
Analog output 4
10
Analog input common
30
Analog output common
11
Analog input 1
31
0 V (Common)
12
Analog input common
32
COM 1 - | Sig+| Tx+ *
13
Analog input 2
33
COM 1 Tx | Sig- | Tx- *
14
Analog input common
34
COM 1 - | - | Rx- *
15
Analog input 3
35
COM 1 Rx | - | Rx+ *
16
Analog input common
36
COM 2 - | Sig+| Tx+ *
17
Analog input 4
37
COM 2 Tx | Sig- | Tx- *
18
Analog input common
38
COM 2 - | - | Rx- *
19
Analog input 5
39
COM 2 Rx | - | Rx+ *
20
Analog input common
* RS-232 | RS-485 2 wire | RS-485 4 wire
Table 6-6 Screw terminal B pin-out for Flow-X/S
