Transporting and turning wall insert

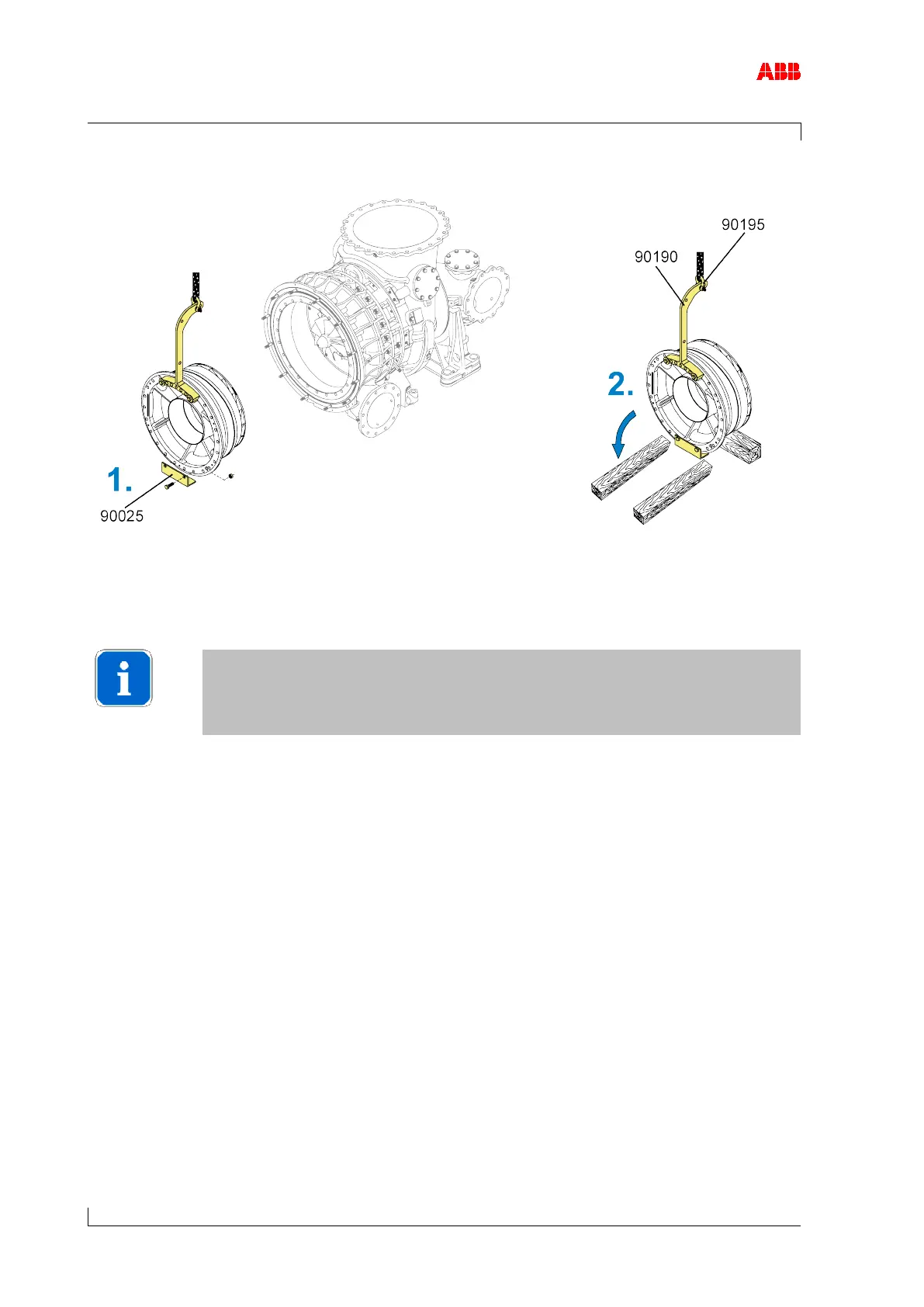

Figure 30: Transporting and turning wall insert
1. Fit support angle (90025) with bolts and nuts.
2. Carefully turn wall insert over support angle (90025) and place on supports.
Reusing the lifting device
Place wall insert such that lifting device (90190/90195) can be removed.
