Removing the diffuser

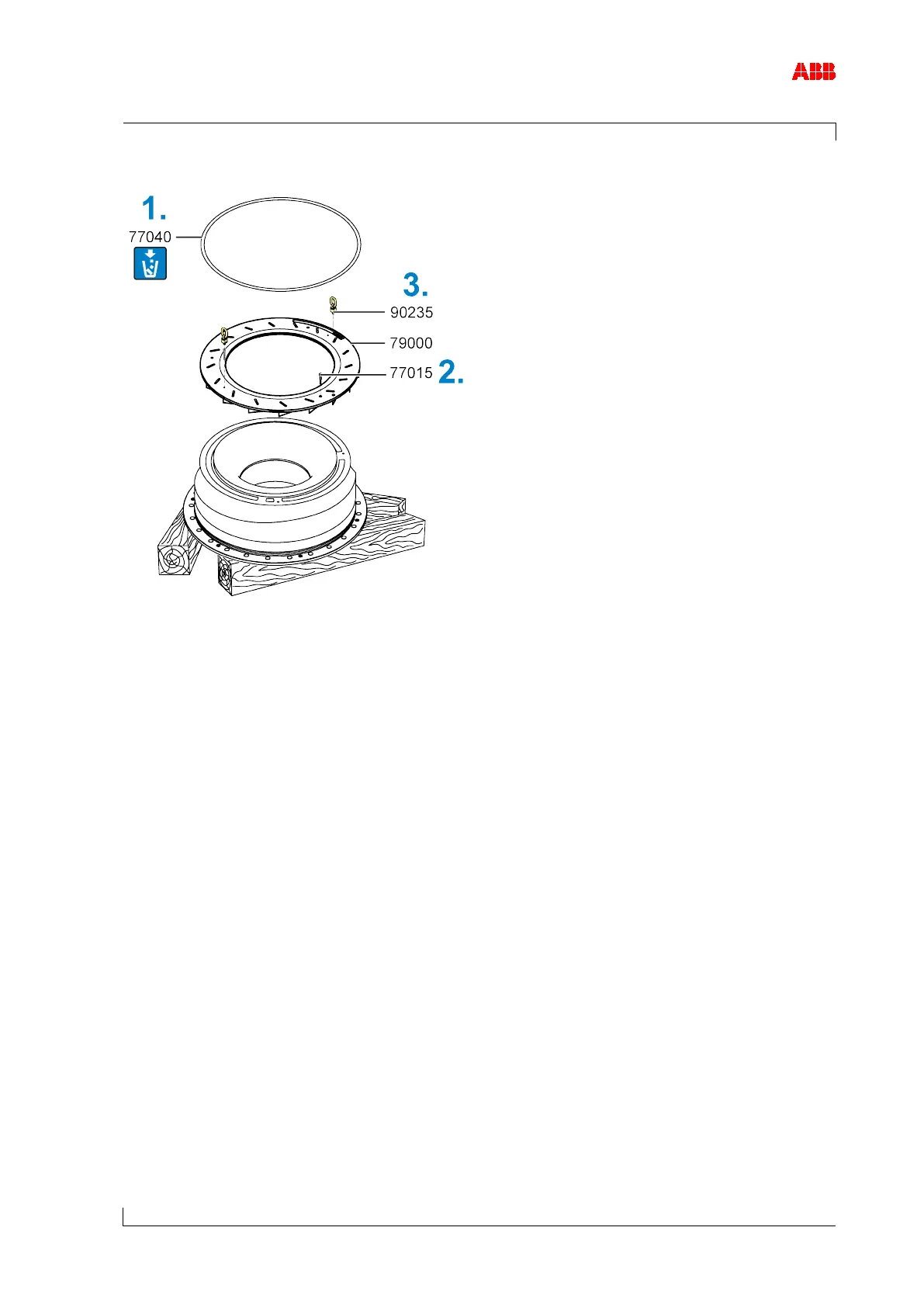

Figure 31: Removing the diffuser
1. Remove and dispose of the O-ring (77040).
2. Loosen and remove screws (77015).
3. Remove diffuser (79000) with swivel lifting eyes (90235).
