NoteAction
xx0600002735

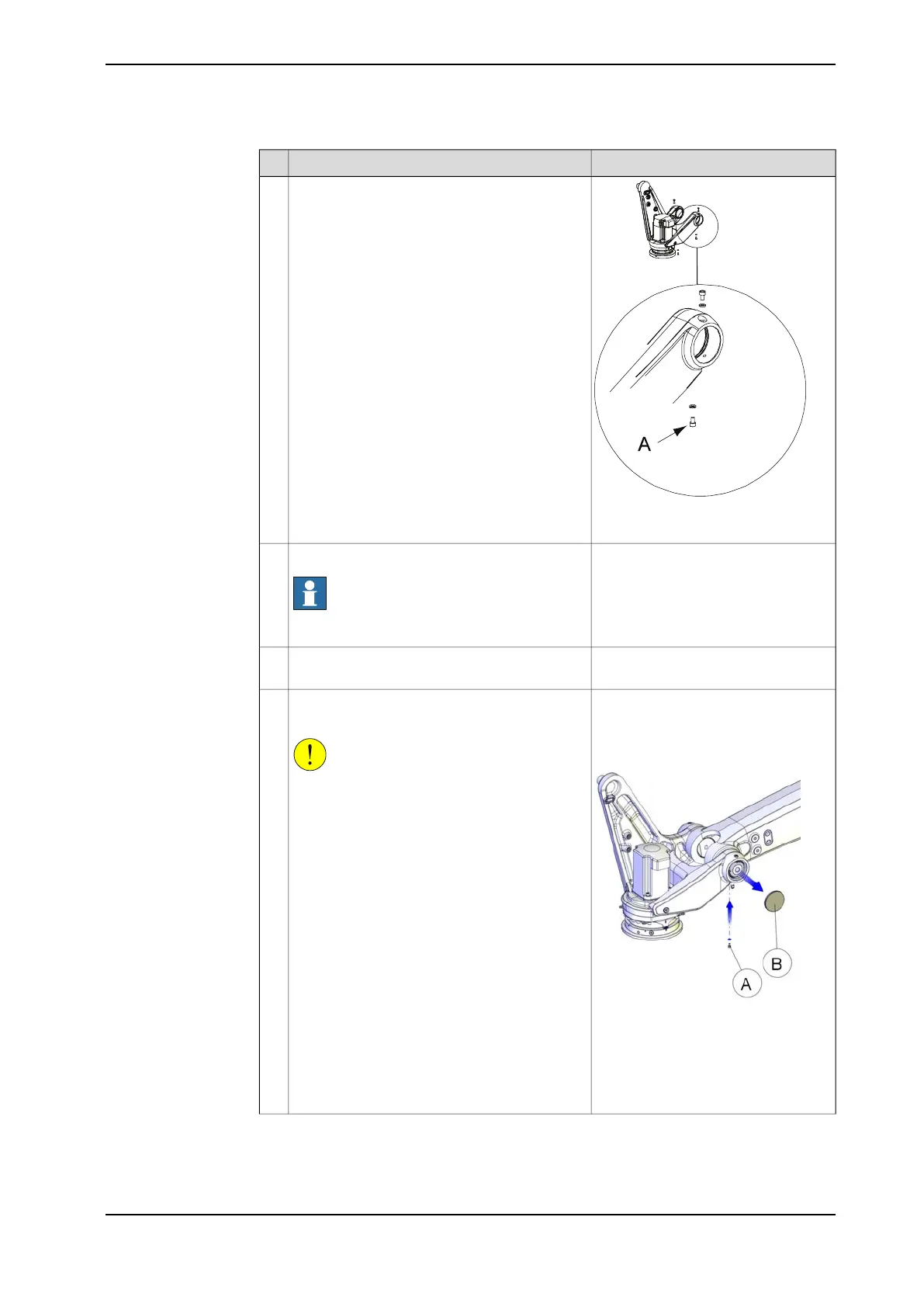

Remove one of the M6 screws and washer at
the cover for filling grease.
7
• A: Screw M6, grease filling hole
Shown in the figure Location of tilt
house on page 176.
Be careful not to damage the ball plug!
Note
Do not remove the ball plug!
8
Remove one shaft at a time by following the
steps below.
9
Put a hand with some paper over the
VK cover in order to catch it.
xx1000001072
Use compressed air in the M6 hole for filling
grease, in order to remove the VK cover.
CAUTION
Only a very low air pressure is needed!
10
Parts:
M6 screw in hole for filling
grease
VK cover
Continues on next page
Product manual - IRB 660 183
3HAC025755-001 Revision: W
© Copyright 2006-2020 ABB. All rights reserved.
4 Repair
4.4.2 Replacement of tilthouse unit
Continued
