19
Magnetic
Wand
MagMaster Transmitter
Local Display Area
>43567 Ltr
12.328Ltr/s
>43567 Ltr
12.328Ltr/s
Icons where Magnet
is applied
Magnetic
Pen
4STARTUP AND OPERATION
Warning.
• Ensure Plant Safety while
configuring, at all times.
• The 9-way D-Type Serial Link is not
isolated. Ensure that it is NOT
connected to power earth (ground),
with cathodically protected systems.
4.1 Startup
Switch on the power supply to the flowmeter, and
if a transmitter with display has been ordered, the
flow rate will be shown on the display as shown in
Fig. 4.1 or 4.2.
Sequential application of the provided magnetic
wand to the left hand icon in the transmitter display
area, or by pressing the button on the keypad
versions or the remote display, steps the display
through the following sequence:
% (Flow Rate % of Range)
> (Forward flow total value)
< (Reverse flow total value)
* (Net flow total value)
Alm(Active alarms)
Vel (Flow Velocity in m/s or ft/s)
Any alarms are displayed sequentially if more than
one alarm is present.
Application of the wand to the right hand icon, or
pressing the keypad button, resets the totaliser
display, if this facility is enabled.
Information.
• For the use of local or remote serial
communication, and configuration,
see the Quick Reference
Programming Guide or the main
MagMaster manual.
• For all versions supporting HART
TM
,
see the main MagMaster manual.

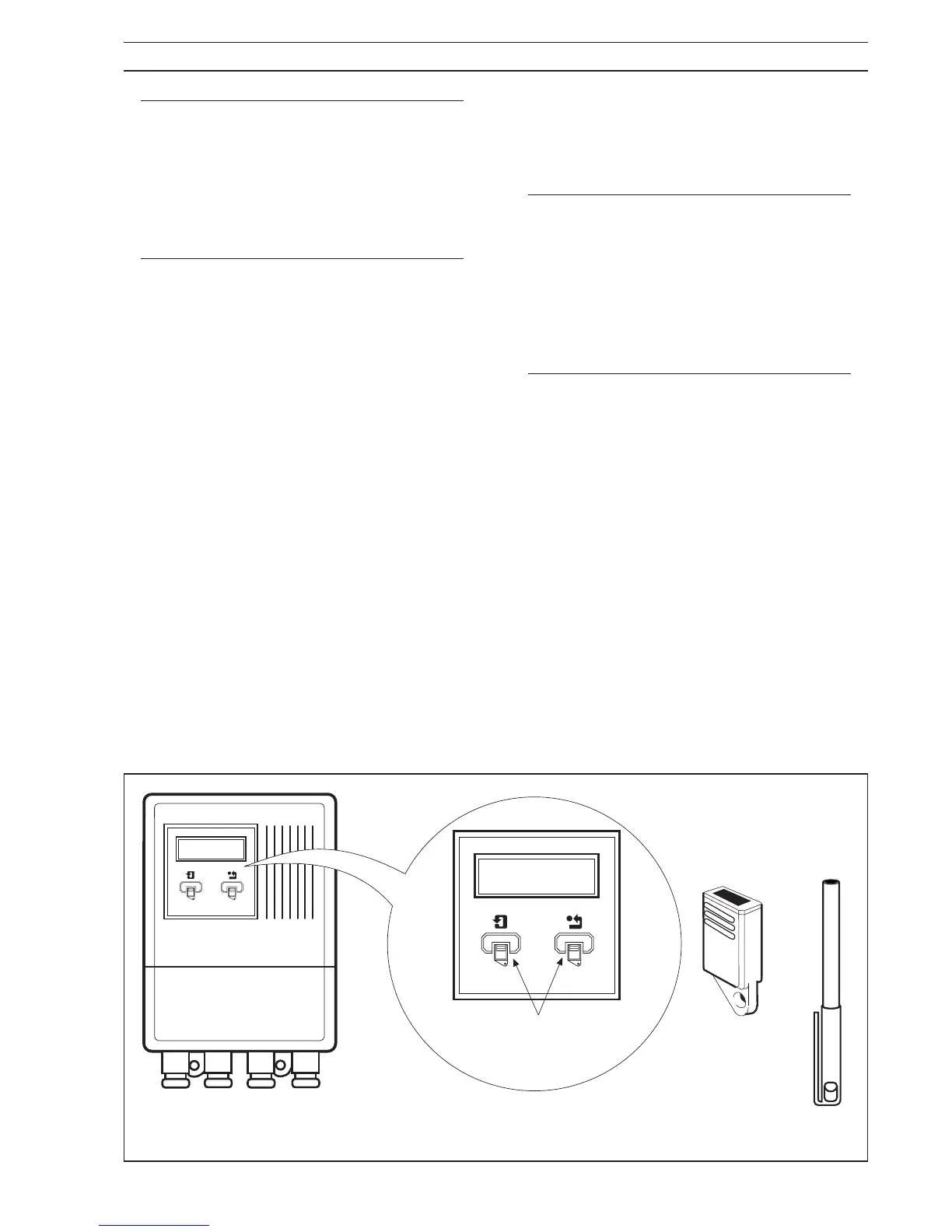

Fig. 4.1 Location of Controls (Non-Keypad Version)
