ABB MagMaster User Manual

6
Filler
Red wire (CD1)
Optional Steel Wire Armor
and submersible overjacket
Yellow wire (CD2)
Violet wire (SIG GND)
Grey Coaxial Core (SIG2)
Inner Conductor (SIG2)
Inner Insulation (Pink)
Conductive Layer (Black)
Primary Screen (DS2)
Insulation (Grey)
Foil Secondary Screen
White Coaxial Core (Sig1)
Inner Conductor (Sig 1)
Inner Insulation (Blue)
Conductive Layer (Black)
Primary Screen (DS1)
Insulation (White)
Foil Secondary Screen
Ground Wire (ESCREEN)
Overall Foil Screen
654
Inches
321
0
0
50
Millimetres
100
150
Overjacket
Armor
Sheath
Ground wire sleeved,
to post. (Ground)
Red (CD1)
Yellow (CD2)
Pink (SIG2)
White
Grey
Screen (DS2)
Screen (DS1)
Blue (SIG1)
Violet (SIG GND )
…3 ELECTRICAL INSTALLATION
3.2 Cables
3.2.1 Cable (Remote Versions only)

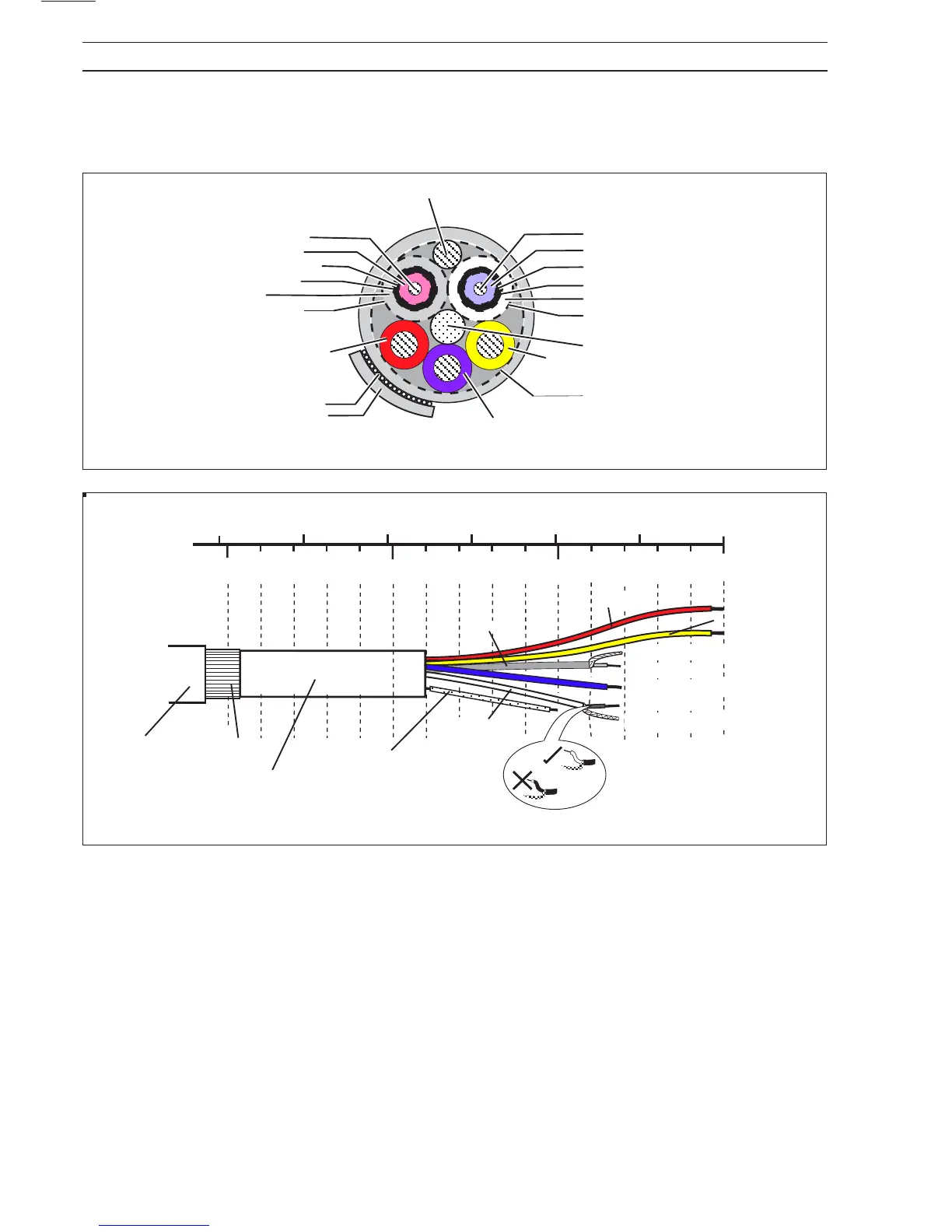

Fig. 3.3 Cable Identification
Fig. 3.4 Cable Preparation

ABB MagMaster Specifications

General

Type	Magnetic Flow Meter
Process connection	Wafer, Flanged
Lining material	PTFE, hard rubber
Electrode material	Stainless Steel, Hastelloy C, Tantalum, Platinum
Fluid temperature	Up to 180 °C (356 °F) depending on liner
Communication	HART, FOUNDATION Fieldbus, PROFIBUS PA
Approvals	ATEX, IECEx, FM, CSA, SIL
Diagnostics	empty pipe detection
Output Signal	4-20 mA, pulse, frequency
Power Supply	100 to 240 V AC, 24 V AC/DC
Process Temperature Range	-40°C to +180°C (depending on lining material)
Ambient Temperature Range	-40°C to +60°C
Protection Class	IP67, IP68
Material	Carbon steel, stainless steel
Flow Rate Range	0.03 to 12 m/s (0.1 to 39 ft/s)
