ABB MagMaster - 2.3.1 Transmitters; 2.3.2 Sensors

4
162mm (6.35in)
214mm
(8.43in)
69mm (2.72in)
(Fixing Centres)
232mm (9.13in)
(Fixing Centres)
32mm
(1.26in)
3 Fixing Holes,
6.5mm (1/4in) Diameter
Allowance for
cable bends
200mm (8in)
Gasket same size as pipe
Fit gaskets
PTFE
Metal
face
Gasket
Metal
face
PTFE
Gasket
<15mm bore sensors
…2 MECHANICAL INSTALLATION
2.3 Mechanical Installation
2.3.1 Transmitters
2.3.2 Sensors
Caution.
• Do NOT exceed the maximum
working pressure marked on the
equipment.
• Use stainless steel (austenitic) bolts,
studs and nuts for flanged sensors
below 200mm.
Caution. Do not overtighten fixings,
especially on an uneven surface.

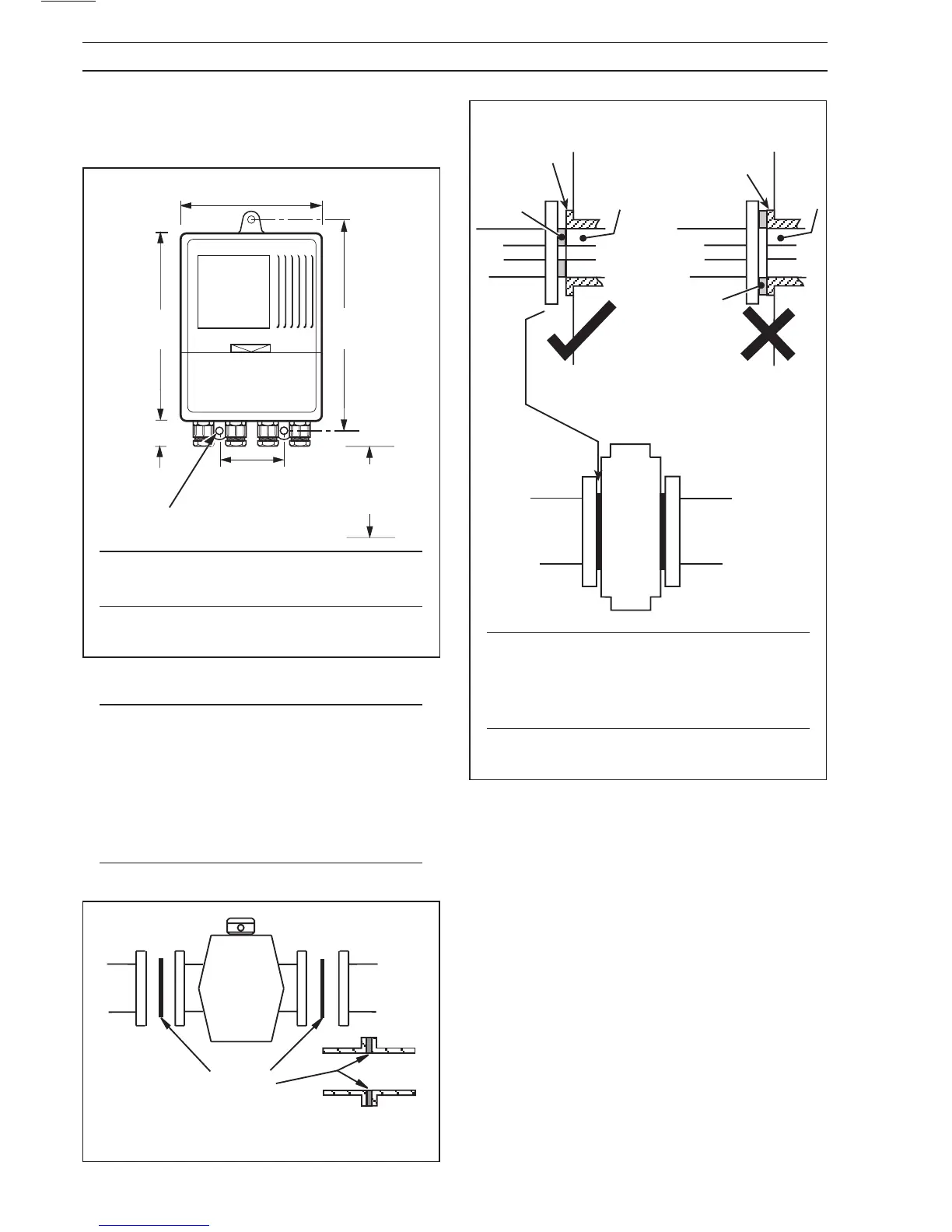

Fig. 2.16 Dimensions
Fig. 2.17 Gasket Fitting
Caution. For wafer type sensors of
<15mm bore, the fluid seal must be
made against the PTFE. Otherwise use a
full face gasket.
Fig 2.18 Wafer Type Sensors
