ABB MagMaster - 3.3 Connection Requirements; 3.3.1 Sensor Connections

8
Ferrule
Outer Nut
Seal
(Present in O.Z.
Gedney
Fittings)
Alternative
Face Seal
Face
Seal
Hub
Fittings vary
slightly for
different makes
Outer Nut
Alternative
Face Seal
Face
Seal
Hub
Illustration
typical for
O.Z.Gedney
Conduit Adapters
Cable Glands
Power
Input/Output
Sensor
Transmitter
…3 ELECTRICAL INSTALLATION
3.2.4 Conduit Adapters and Cable Glands (North American – 0.5in)
3.3 Connection Requirements
The transmitter and sensor are supplied as a
matched system. Check serial numbers to ensure
they are matched.
3.3.1 Sensors
Remote sensors are usually supplied with an
integral cable and potted connections. If the
sensor has been supplied unpotted, connections
must also be made to the sensor terminal box and
then potted on completion with the supplied
potting material – See Appendix A.

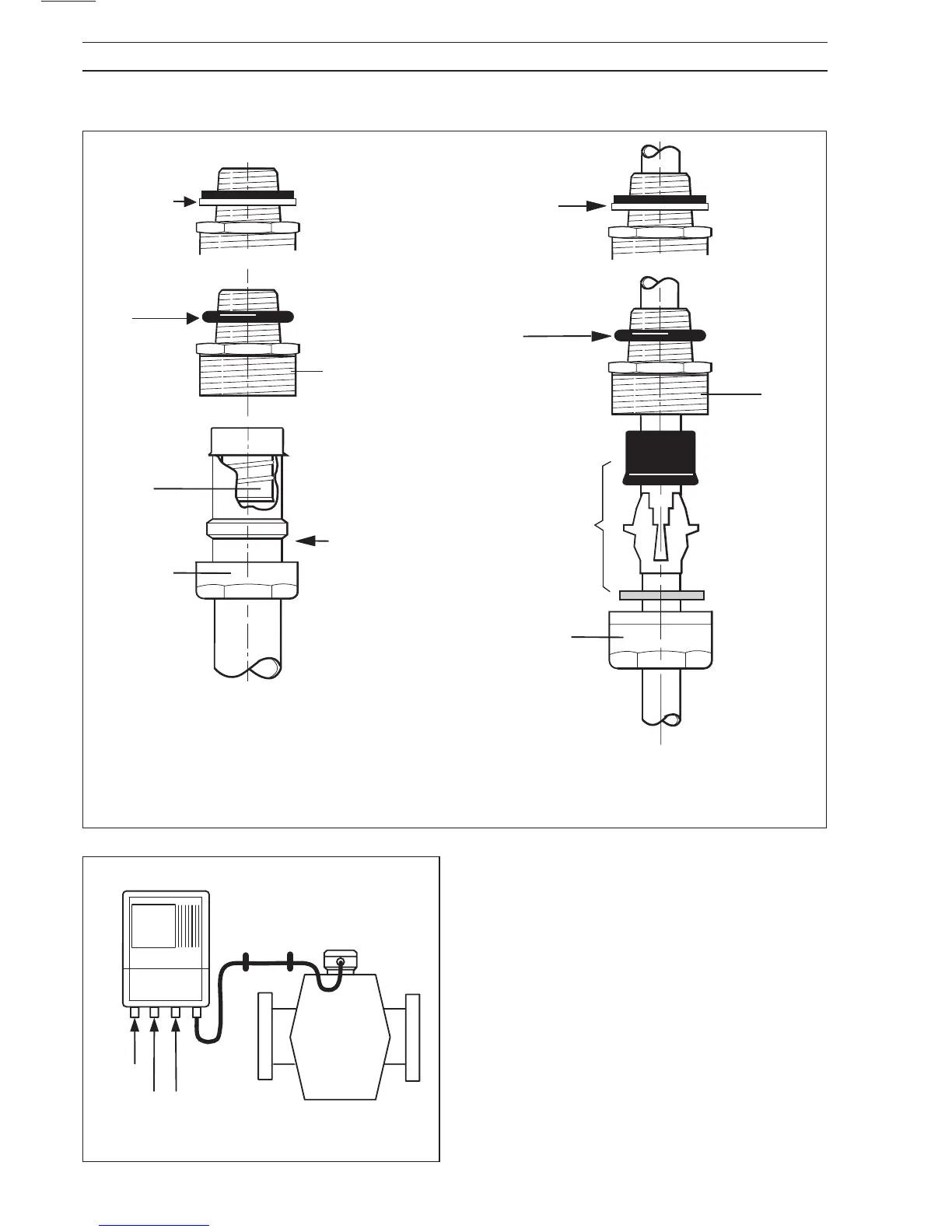

Fig. 3.8 Conduit Adapters and Cable Glands
Fig. 3.9 Connection Requirements
