Operation Manual / Power2 340-H / High-pressure stage
13 Spare parts / 13.2 Spare part – Illustrations
© Copyright 2022 ABB. All rights reserved. HZTL4054_EN Rev.F March 2022

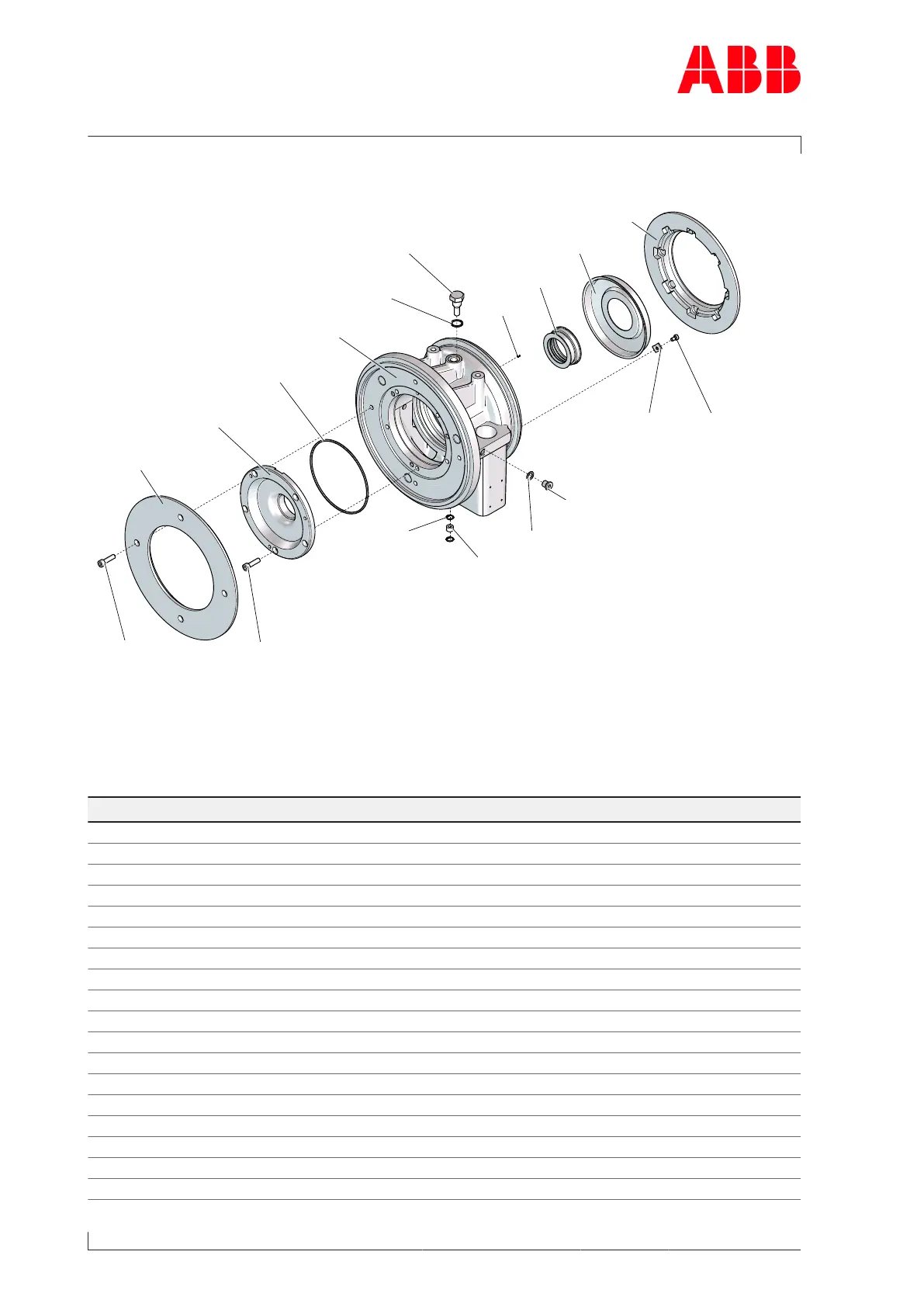

Bearing casing
42400
42003*
42402
42004*
42196
42005
42197
42006
42001
42010*
42009
42189
42304*
42188
42008
42301
42007
79000
* = Available within the spare part set HZTL443281 Mod. E
Part no. Designation
42001 Bearing casing
42003* Socket screw
42004* Lug
42005 Sealing bush
42006 Spring-type pin
42007 Socket screw
42008 Socket screw
42009 Screw plug
42010* O-ring
42188 Hexagon-head screw
42189 Gasket
42196 Orifice oil inlet
42197 Safety ring
42301 Bearing cover
42304* O-ring
42400 Heat shield
42402 Heat sheet metal
79000 Diffuser
