Operation Manual / Power2 340-H / High-pressure stage
3 Removal and installation / 3.3 Installing the high-pressure stage
© Copyright 2022 ABB. All rights reserved. HZTL4054_EN Rev.F March 2022
3.3 Installing the high-pressure stage
3.3.1 Inserting gaskets
CAUTION
Inserting the gaskets
Gaskets that are forgotten, damaged or improperly inserted will lead to oil
leaks.
u Always use new gaskets and insert them carefully into the slot.

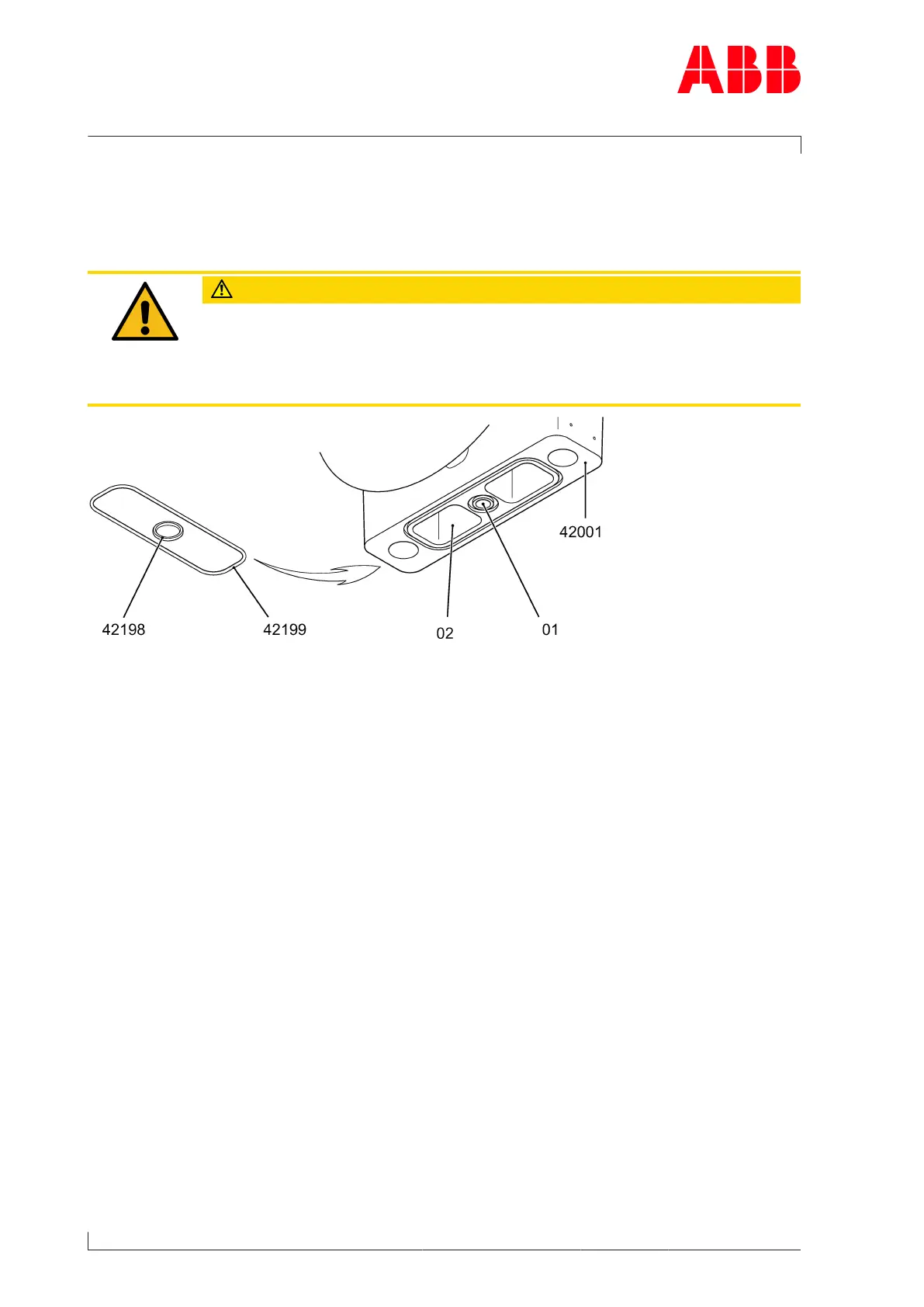

Fig.16: Gaskets in the slots of the bearing casing
42001 Bearing casing
42198 O-ring
42199 O-ring
01 Oil supply
02 Oil drains
The oil is supplied(01) and drained(02) through the bracket.
u Insert the O-rings(42198and42199) into the slots of the bearing casing.
