2.7 Warning plates on the high-pressure stage
Warning plates are affixed at the following locations:

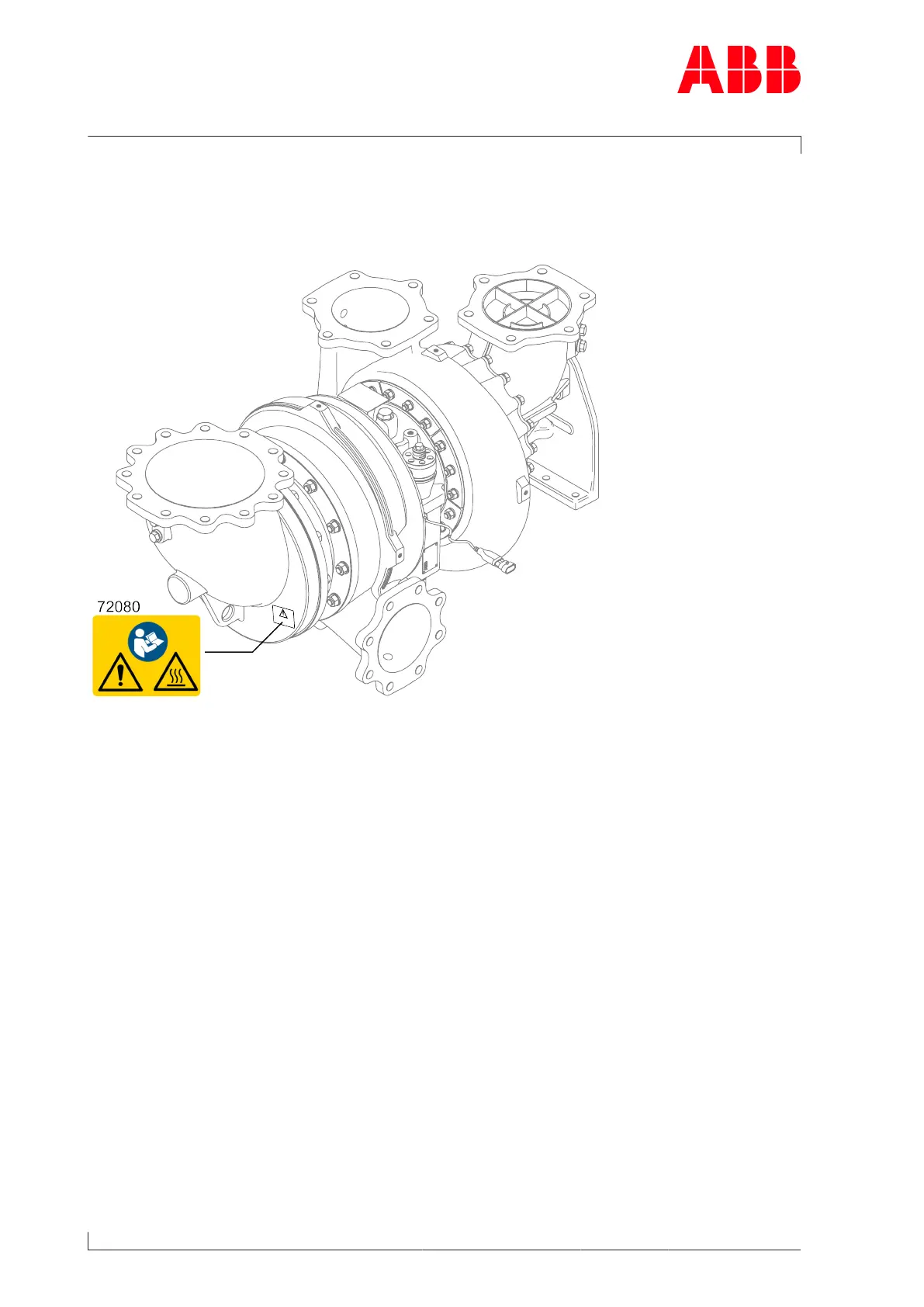

Fig.6 High-pressure stage
If warning plates are not present in the designated locations or not readable, proceed as fol-
lows:
u Order new warning plates from Turbo Systems service stations.
u Remove any warning plates that have become unreadable.
u Clean and degrease the areas designated for the warning plates.
u Fit new warning plates and remove protective sheets.
Non-insulated high and low-pressure stages
High and low-pressure stages supplied to the enginebuilder without insulation must be
equipped later with warning plates to be attached to the insulation. This is the responsibility
of the enginebuilder.
