ABB PT003901 - Installing the Air Inlets; Fig. 38: Installing the Air Inlet; Table 46: Tightening Torque (72013)

Operation Manual / Power2 340-H / High-pressure stage
9 Disassembly and assembly / 9.10 Installing the air inlets
© Copyright 2022 ABB. All rights reserved. HZTL4054_EN Rev.F March 2022
9.10 Installing the air inlets
u Always replace the O-ring(82010) with a new one (see Ordering spare parts →97).
u Measure clearanceN (see Measuring radial clearances N and R →85).

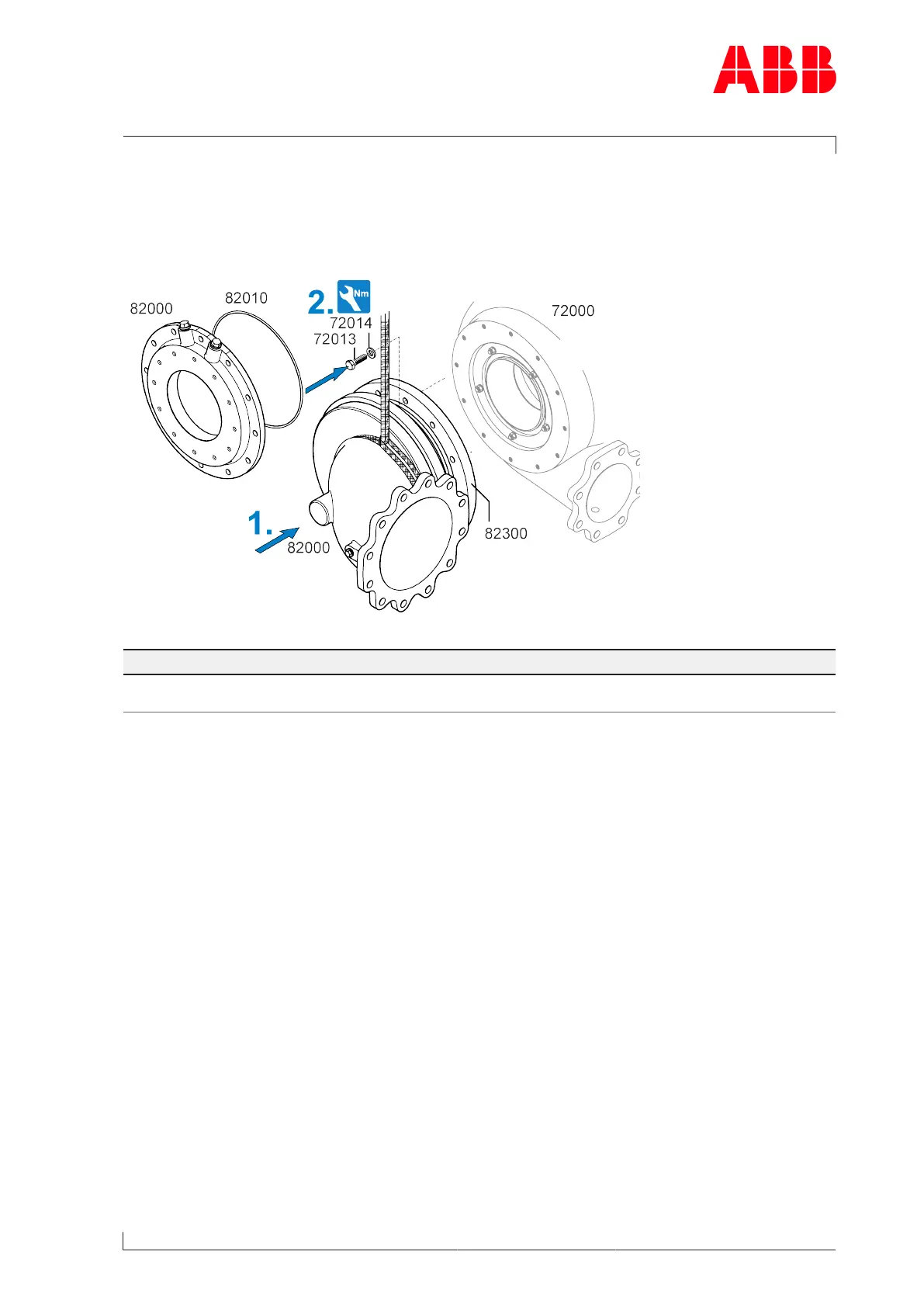

Fig.38: Installing the air inlet
Part number Tightening torque
72013 M12
85Nm
Table46: Tightening torque (72013)
1. Install the radial air suction branch(82000) with the bellows(82300) or the axial air suc-
tion branch together with the O-ring(82010), respectively.
2. Tighten screw(72013).
