Operation Manual / Power2 340-H / High-pressure stage
9 Disassembly and assembly / 9.3 Weights of assemblies
© Copyright 2022 ABB. All rights reserved. HZTL4054_EN Rev.F March 2022
9.3 Weights of assemblies
The specified weights of the individual parts or assemblies are rounded-up standard values.

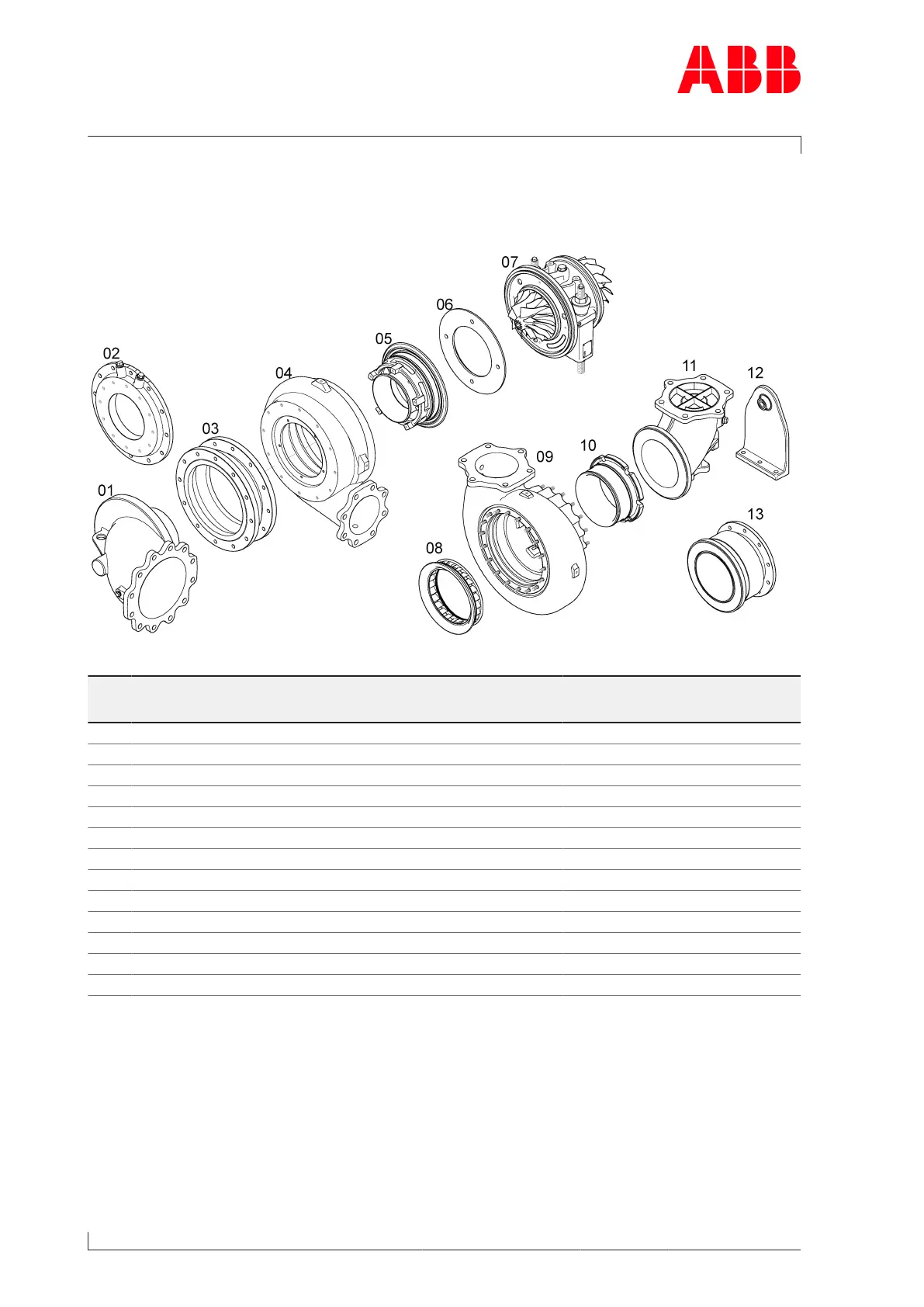

Fig.28: Weights of the assemblies
Designation Weight
[kg]
01 Radial air suction branch 30
02 Axial air suction branch 12
03 Bellows 18
04 Compressor casing 50
05 Wall insert 9
06 Diffuser 4
07 Cartridge group 50
08 Nozzle ring 2
09 Turbine casing 70
10 Gas outlet flange 9
11 Radial gas outlet casing 21
12 Support 7
13 Axial gas outlet casing 12
Table41: Weights of the assemblies
Page 72 / 114
