2.8 Rating plate of the high-pressure stage

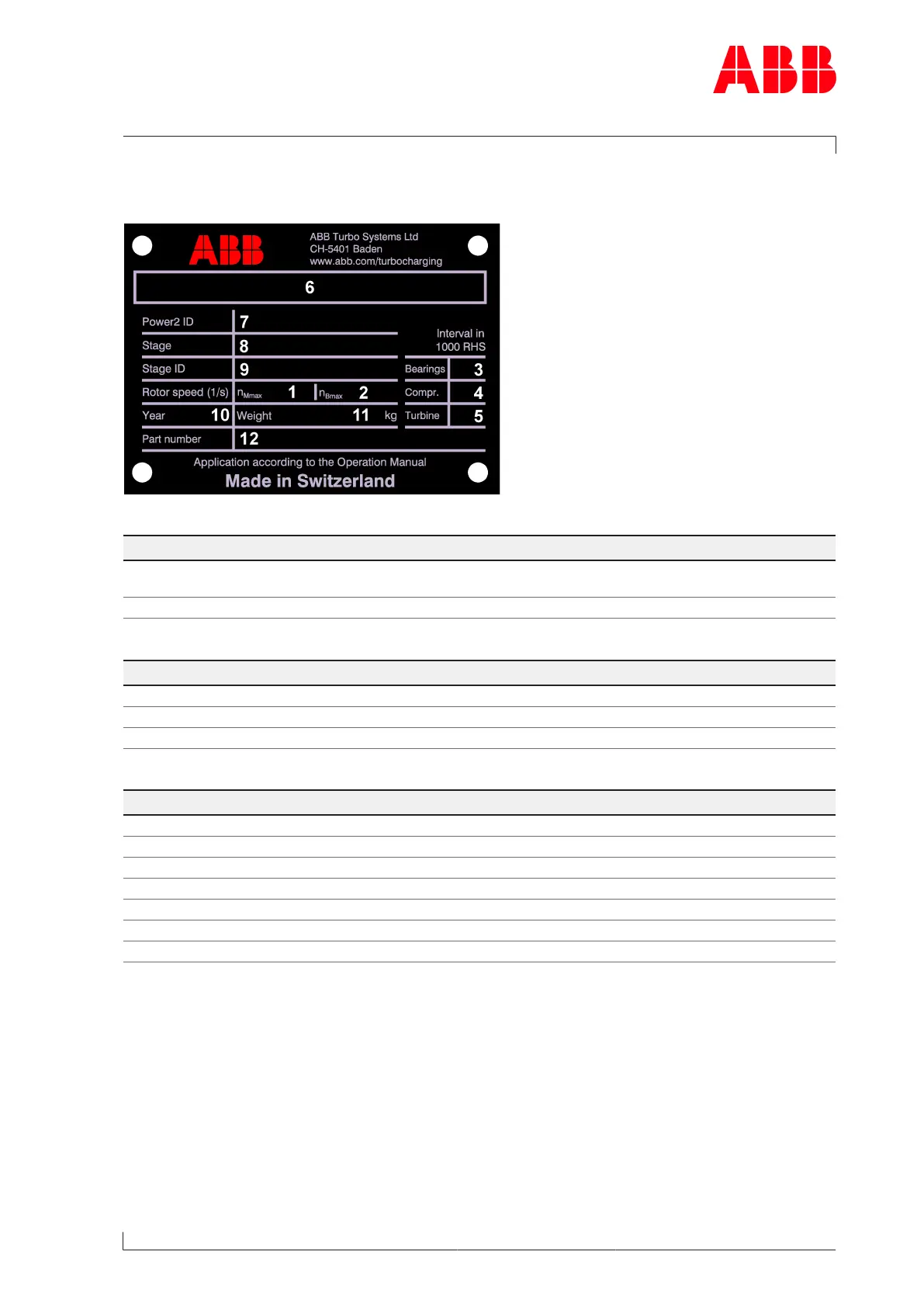

Fig.7: Rating plate
Operating limits
1 Operating limits at engine overload (110%). In test rig operation only, unless otherwise
agreed with the enginebuilder.
2 Operating limits during operation
Table5: Operating limits
Recommended inspection and replacement intervals
3 Inspection interval of plain bearings in 1000h
4 Replacement interval of compressor in 1000h
5 Replacement interval of turbine in 1000h
Table6: Recommended inspection and replacement intervals
Further data
6 Power2 designation
7 Power2 serial number
8 Power2 stage
9 Serial number of the low or high-pressure stage
10 Year of construction of the low or high-pressure stage
11 Weight of the low or high-pressure stage
12 Part number of the customer of the low or high-pressure stage
Table7: Further data
