ABB PT003901 - Table 57

Operation Manual / Power2 340-H / High-pressure stage
13 Spare parts / 13.2 Spare part – Illustrations
© Copyright 2022 ABB. All rights reserved. HZTL4054_EN Rev.F March 2022

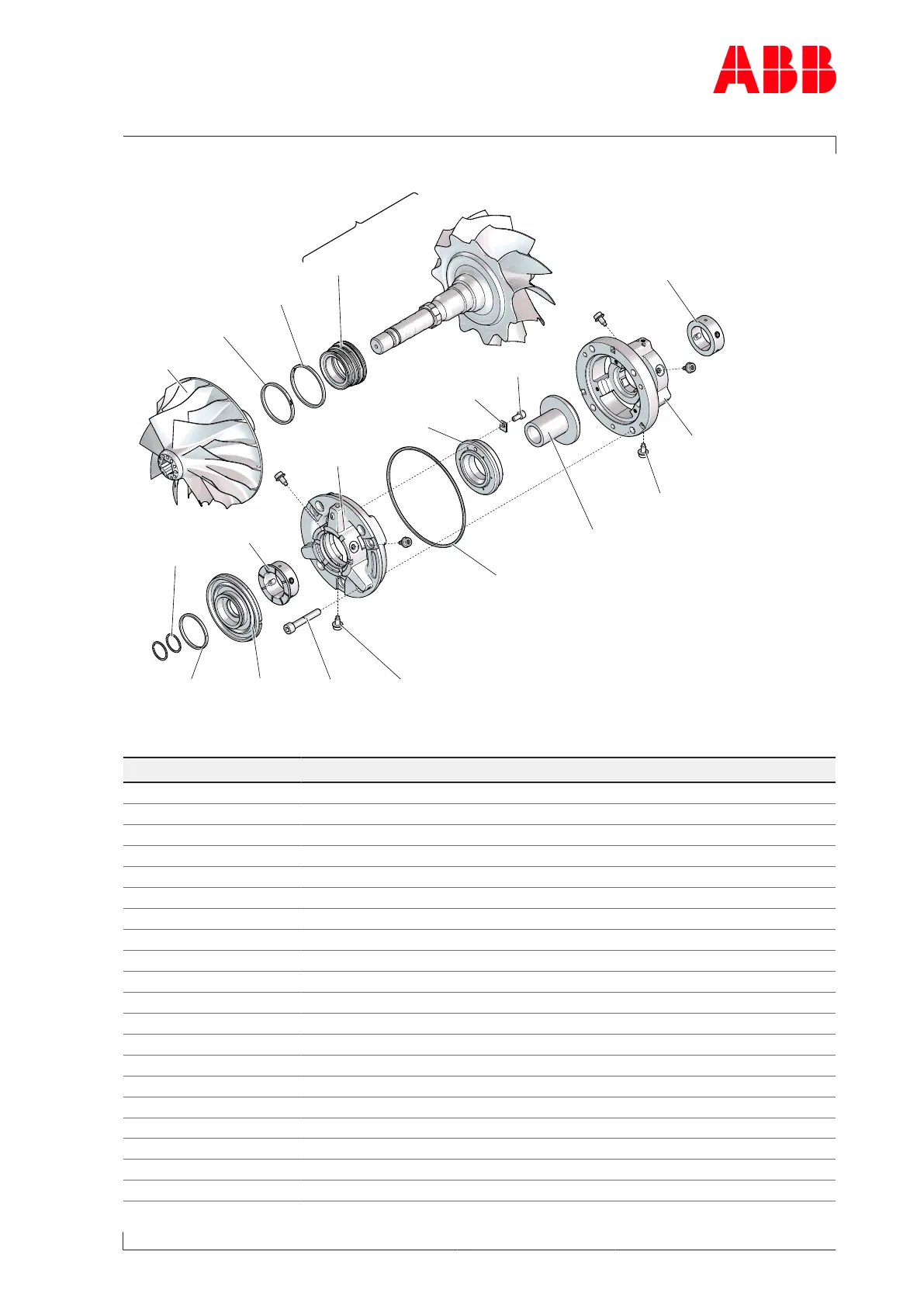

Rotor and Bearing parts
32167*
21000
32114*
32102*
32108*
21011
32112
21002*
21006*
32107*
25000
32115
32116
32175*
32113*
32110
42002
32101*
32109*
42302*
* = Available within the spare part set HZTL443583 Mod. A
Part no. Designation
21000 Turbine
21002* Piston ring
21006* Piston ring
21011 Sleeve
25000 Compressor wheel
32101* Radial bearing
32102* Radial bearing
32107* Thrust bearing sleeve
32108* Piston ring
32109* Sealing disc
32110 Bearing flange
32112 Bearing flange
32113* Socket screw
32114* Socket screw
32115 Hexagon-head screw
32116 Lug
32167* Snap ring
32175* O-ring
42002 Socket screw
42302* Piston ring
Table57
