ABB PT003901 - Fig. 19: Steps for Fastening the High-Pressure Stage

Operation Manual / Power2 340-H / High-pressure stage
3 Removal and installation / 3.3 Installing the high-pressure stage
© Copyright 2022 ABB. All rights reserved. HZTL4054_EN Rev.F March 2022
3.3.3 Steps for fastening the high-pressure stage

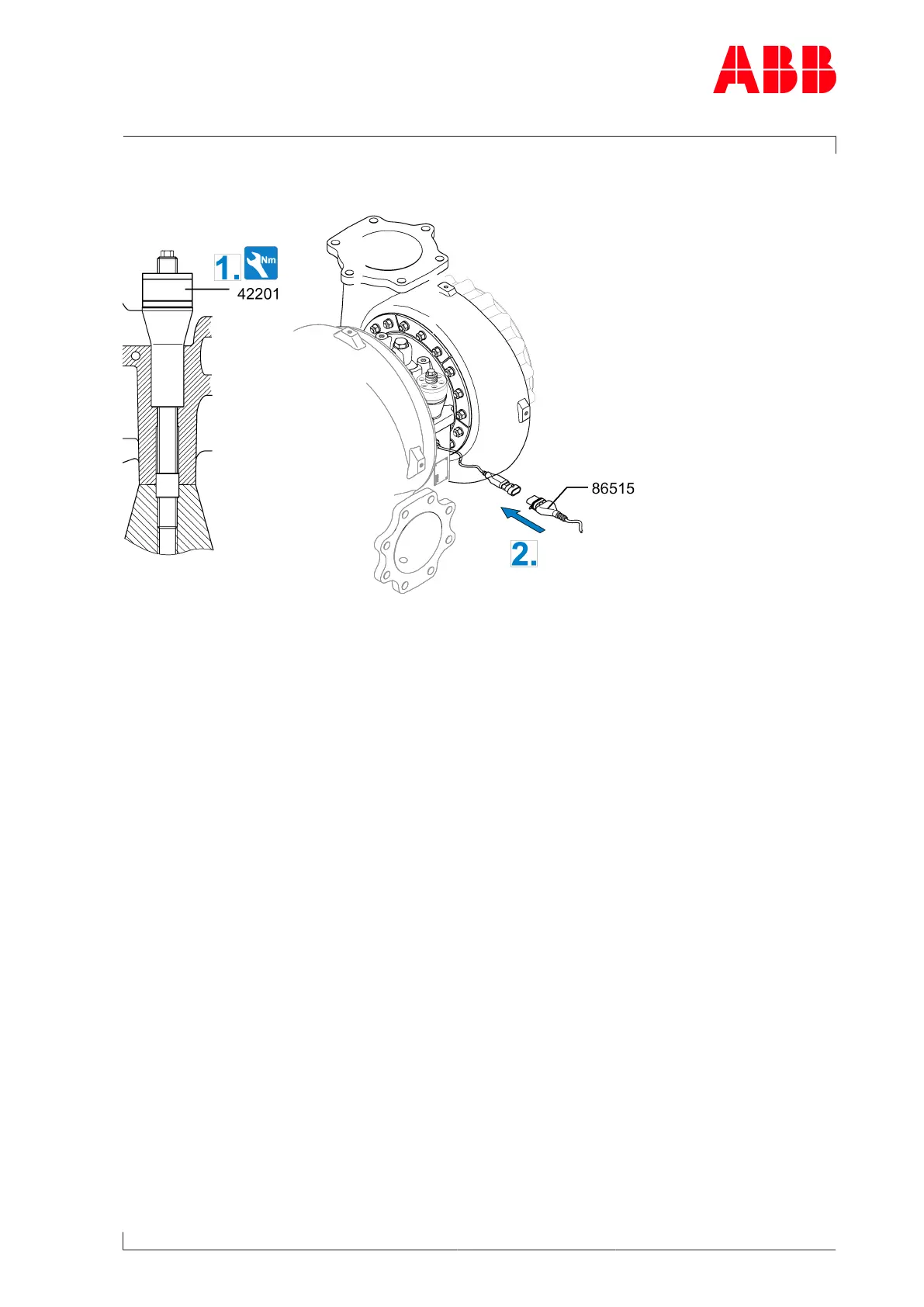

Fig.19: Steps for fastening the high-pressure stage
1. Tighten the clamping nuts(42201) (see section Tightening the clamping nut).
2. Connect the cable connector(86515) to the speed sensor.
