9.8 Installing the cartridge group
Nozzle ring compression
In order for the nozzle ring (56001) to be fixed during operation, it must be clamped
between the heat shield(43001) and the turbine casing(51000).

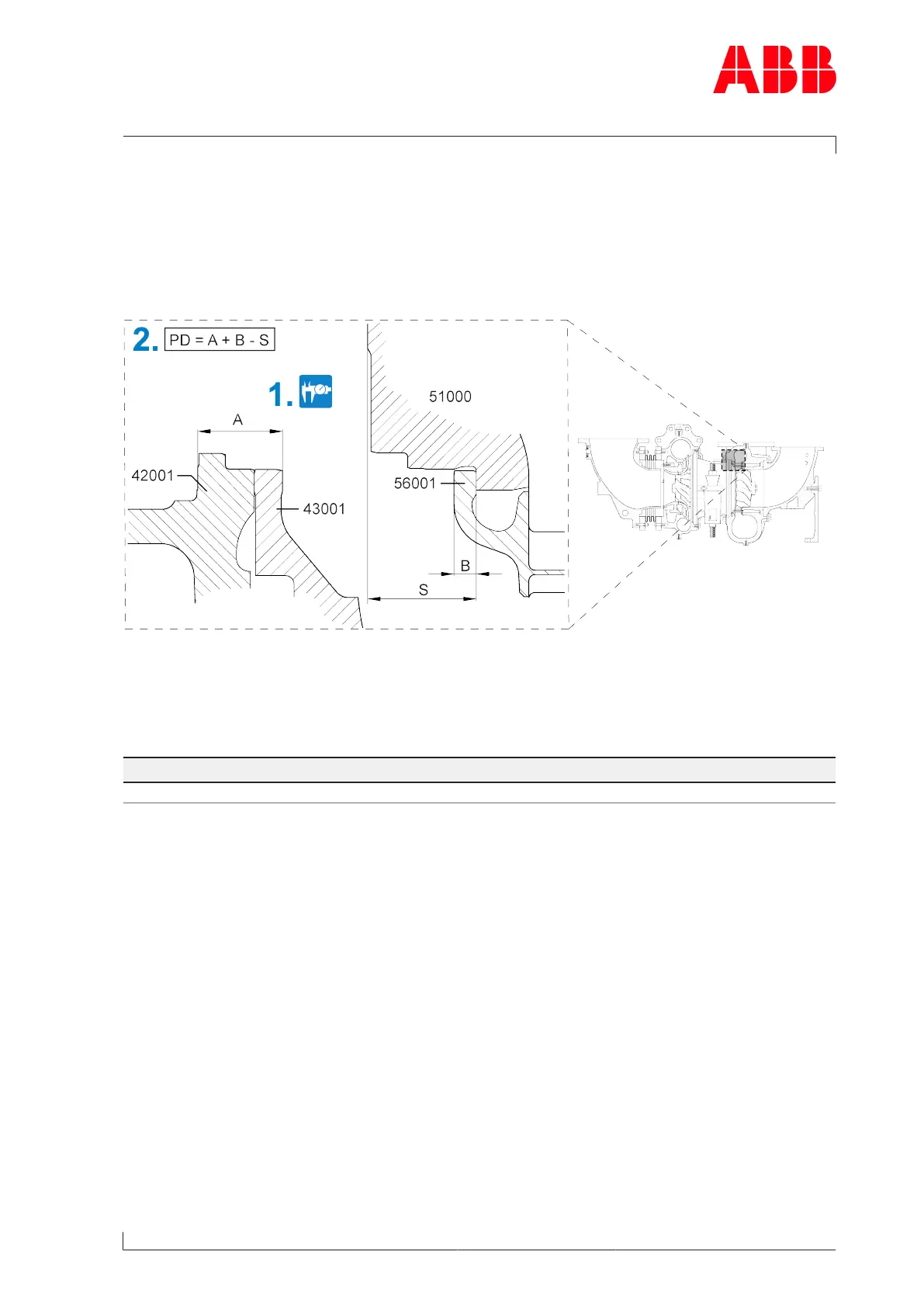

Fig.34: Nozzle ring compression PD
42001 Bearing casing
43001 Heat shield
51000 Turbine casing
56001 Nozzle ring
Compression PD
0.09 ... 0.31mm
Table42: Nozzle ring compression PD
1. Measure dimensions A, B, and S on cleaned surfaces.
2. Calculate compression (PD).
u If the calculated value(PD) lies outside the specified range, contact a Turbo Systems ser-
vice station.
