9.4 Removing the gas outlet casing
u Mark the casing position for assembly.

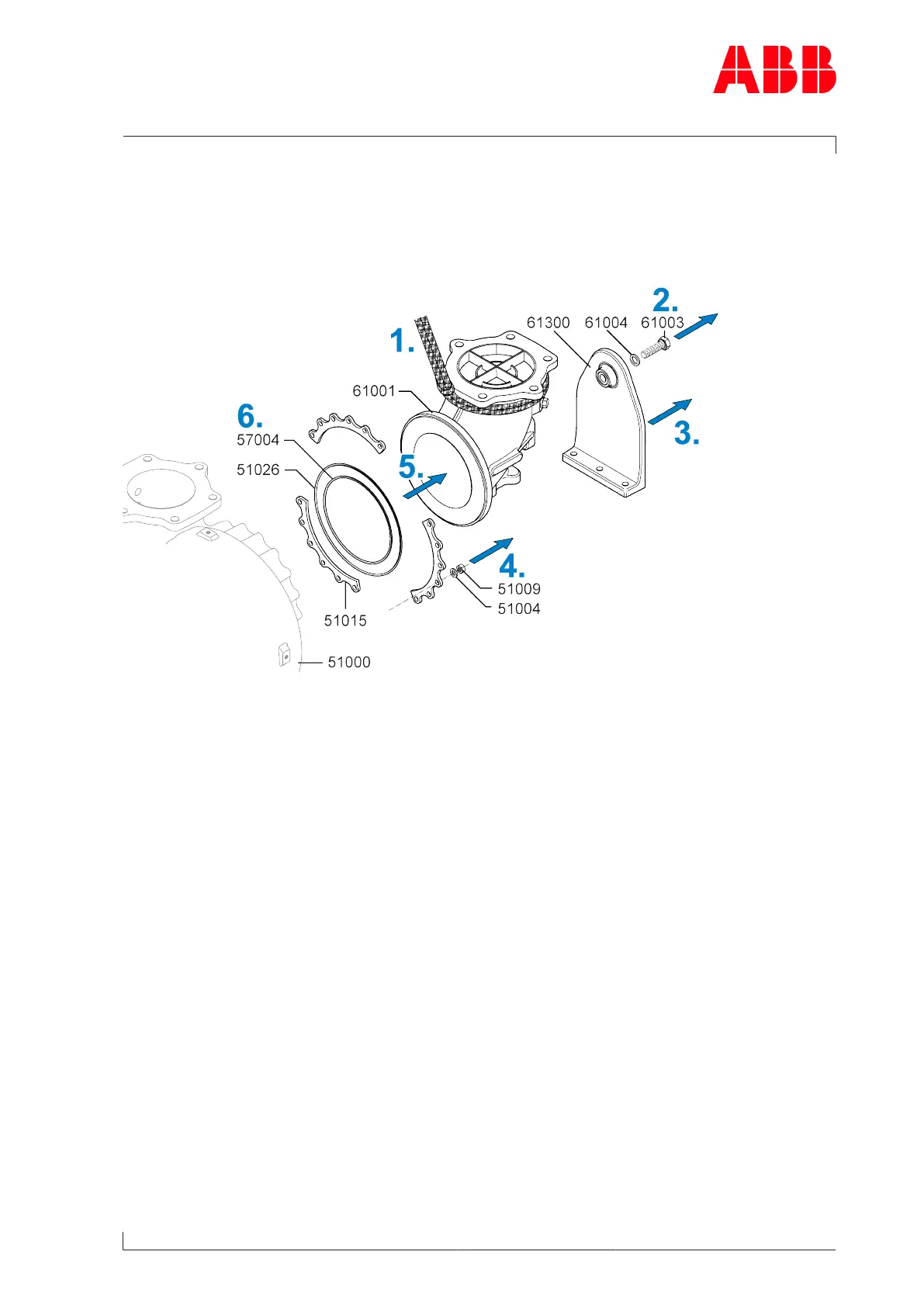

Fig.29: Removing the gas outlet casing
1. Loop the lifting gear around the gas outlet casing(61001).
2. Loosen screw(61003) and remove with Verbus Ripp® washer(61004).
3. Remove the support(61300).
4. Loosen nuts(51009) and remove with Verbus Ripp® washers(51004) and lugs(51015).
5. Remove the gas outlet casing(61001).
6. Remove the metal C-rings(57004) and (51026).
u Measure clearance R (see Measuring radial clearances N and R →85).
