Operation Manual / Power2 340-H / High-pressure stage
3 Removal and installation / 3.3 Installing the high-pressure stage
© Copyright 2022 ABB. All rights reserved. HZTL4054_EN Rev.F March 2022
WARNING
Support(61300)
In radial gas outlet casings, the gas forces cause high torques to act on the
high-pressure stage. If the high-pressure stage is fastened improperly, this
can damage the high-pressure stage and cause serious injuries to persons
or even fatal accidents.
u When using a radial gas outlet casing, only operate the high-pressure
stage with a completely fitted support(61300).

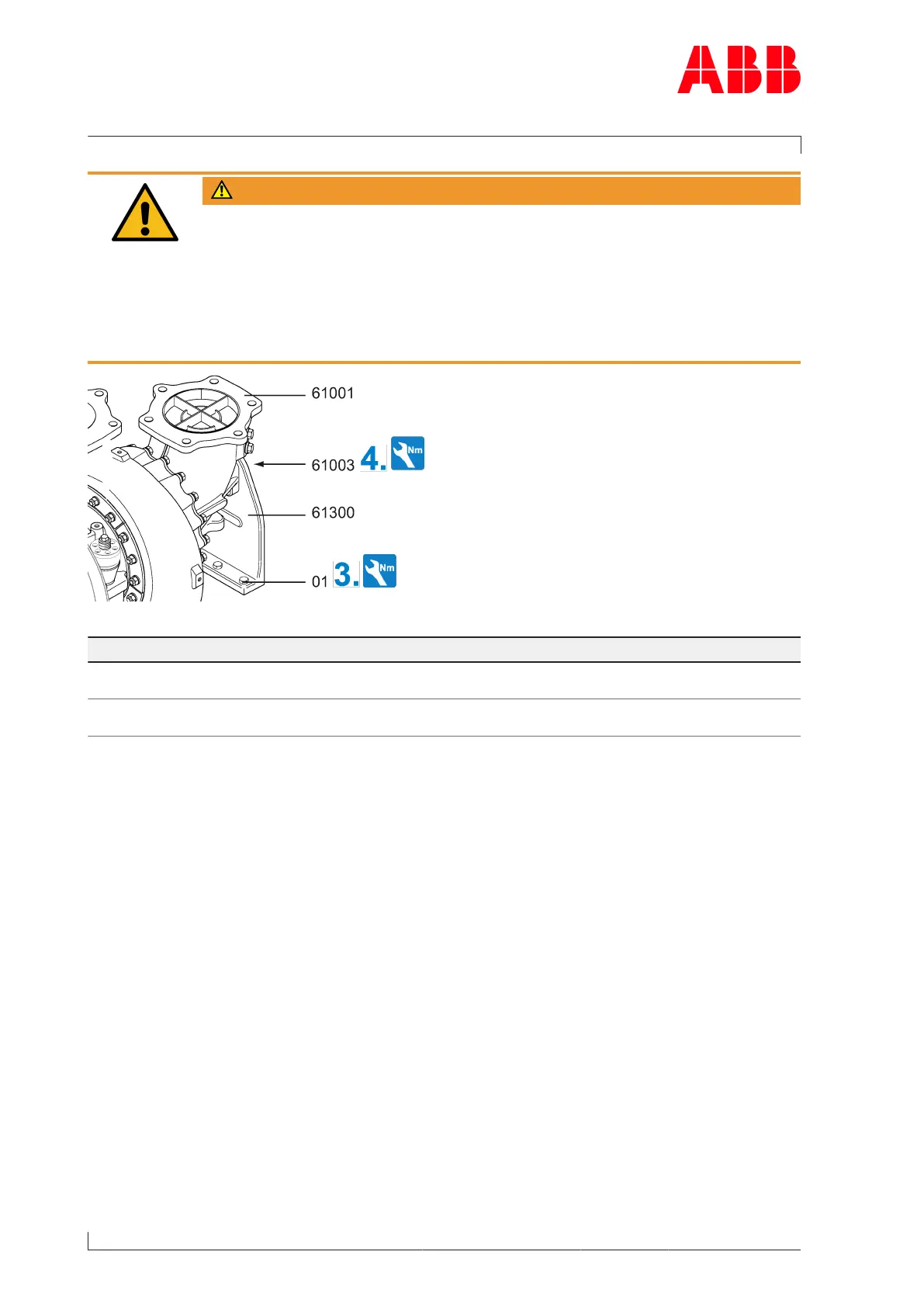

Fig.20: Steps for fastening the high-pressure stage
Part number Thread size and tightening torque
01 M12
110Nm
61003 M16
180Nm
Table11: Tightening torque (01, 61003)
3. Fit the support(61300) using the fixing screws(01). Observe tightening torque.
4. Tighten the screw(61003) of the connection between gas outlet casing(61001) and sup-
port(61300).
u Connect all gas pipes and air lines.
