ABB PT003901 - Table 19: Parameters for Wet Cleaning of Compressor

Operation Manual / Power2 340-H / High-pressure stage
7 Periodic maintenance / 7.2 Cleaning the compressor during operation
© Copyright 2022 ABB. All rights reserved. HZTL4054_EN Rev.F March 2022
7.2.3 Prerequisites for wet cleaning of compressor
¡ Engine load of 50 ... 85%
CAUTION
Volume of water
Uncontrolled volumes of water can damage the pressure stages and the en-
gine.
u Never connect injection tubes directly to a water pipe or a larger meter-
ing container other than that specified by Turbo Systems.
CAUTION
Corrosion and deposits when cleaning
Salt water and cooling water treatment substances damage and adversely
affect parts of the low-pressure and high-pressure stage.
u Never use salt water, but only pure water for cleaning.

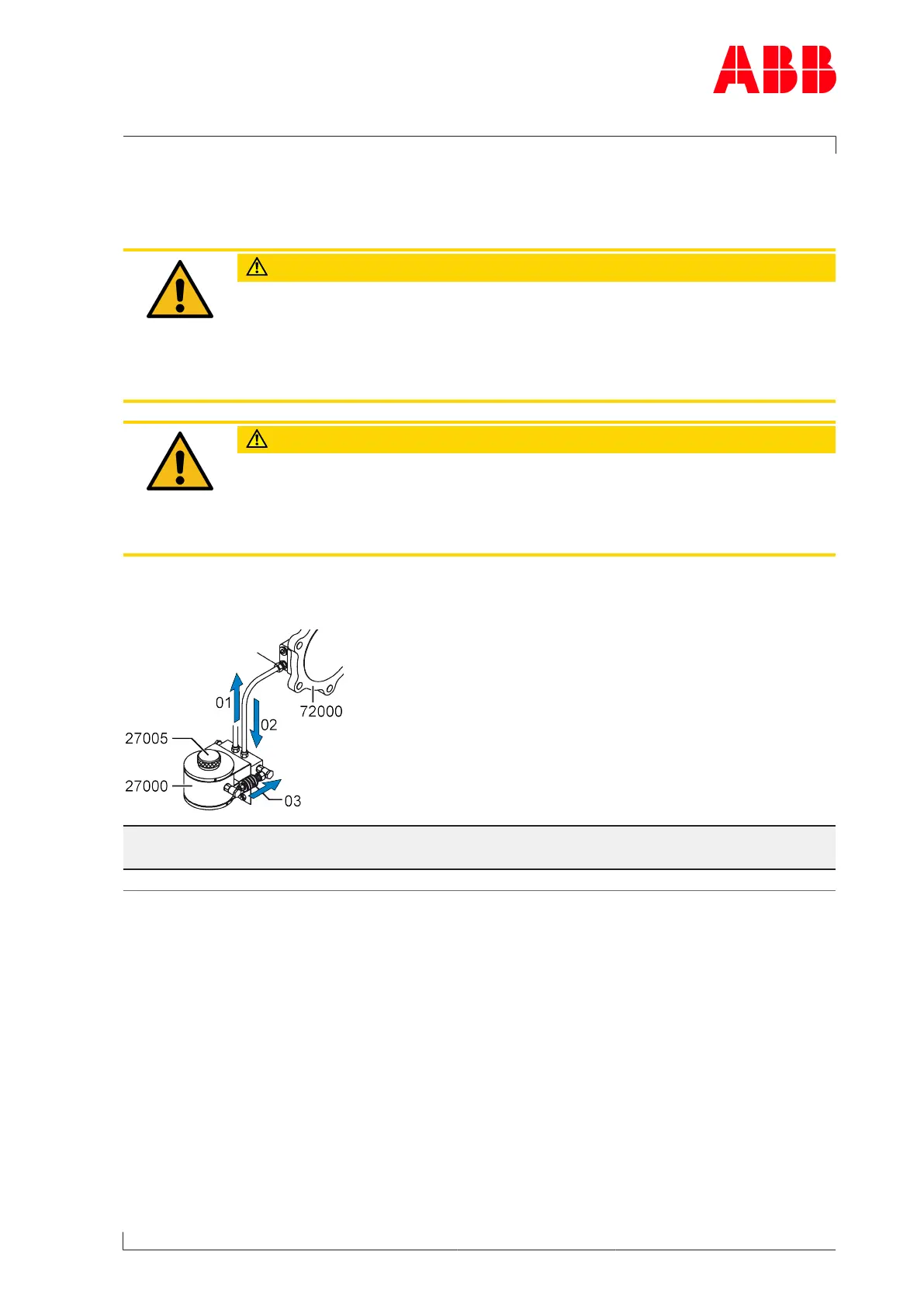

7.2.4 Wet cleaning of compressor
01 Water pipe to filter silencer or air suction branch
02 Pressurised air inlet pipe
03 Valve activator
27000 External water pressure vessel
27005 Sealing plug
72000 Compressor casing
Engine load Filling amount of water pressure
vessel [dm
3
]
Water temperature
[°C]
Water injection
period [s]
50…85% 0.4 5…30 10
Table19: Parameters for wet cleaning of compressor
Executing wet cleaning
u Remove sealing plug (27005).
u Fill container with 0.4dm
3
pure water.
u Screw in sealing plug (27005) again.
u Push the valve activator(03) against the spring and hold for 10…15seconds until the
whole volume of water is injected.
u Continue to operate the engine for at least five more minutes to dry the compressor
stage.
The cleaning process can be repeated up to three times.
The success of the cleaning can be recognised based on the charging pressure or the ex-
haust gas temperature.
Page 59 / 114
