3 Removal and installation
3.1 Transport / weight
Swivel lifting eyes to be used
Swivel lifting eyes are required for the safe lifting of loads, which are not supplied by Turbo
Systems.

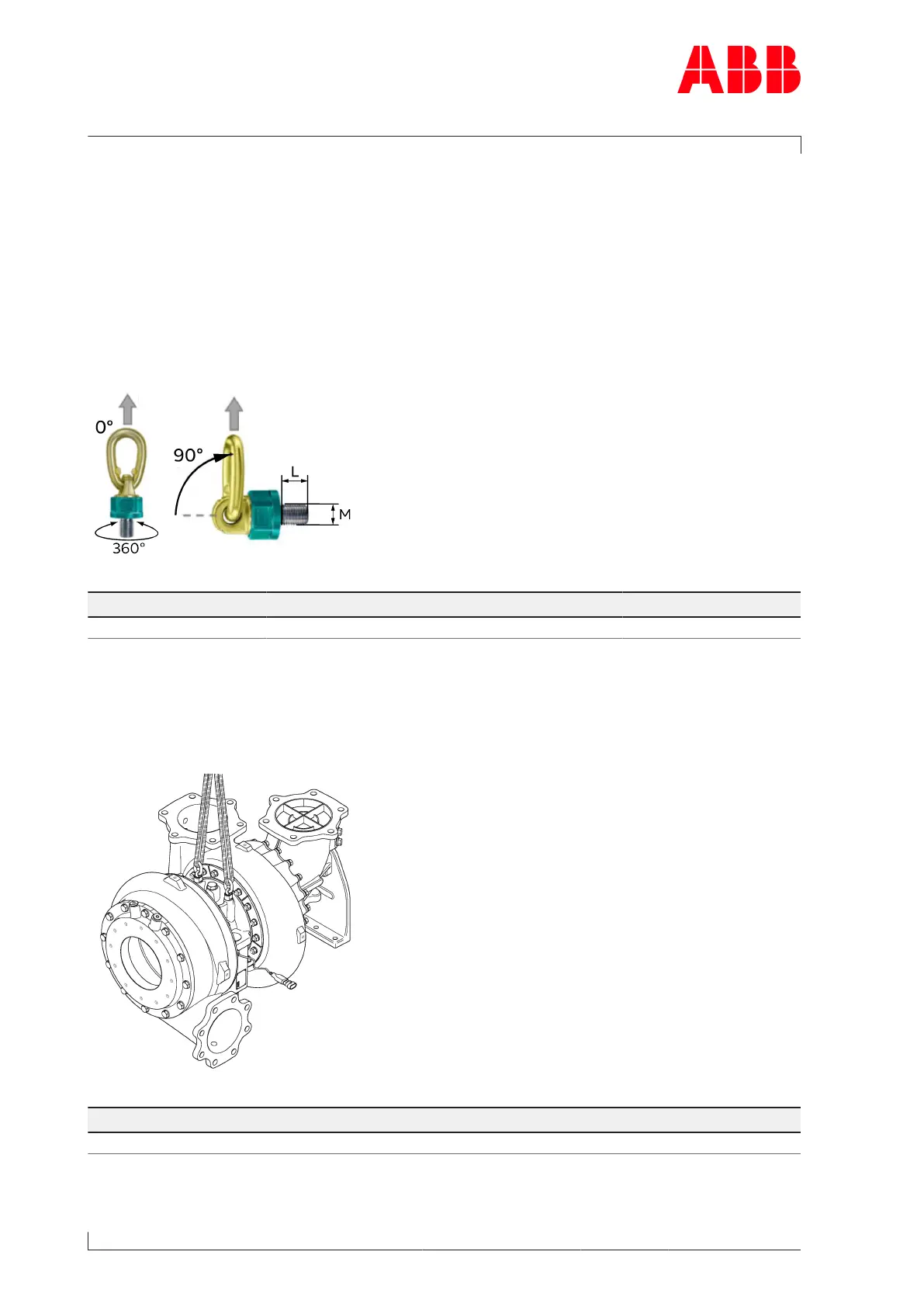

Fig.11: Swivel lifting eye (example)
Thread M Length L Minimum load limit Quantity
M12 21mm 200kg 2
Table8: Swivel lifting eyes
Lifting gear with a sufficient load limit must be used for removing and installing low-pres-
sure and high-pressure stages. The following weight specifications apply to the heaviest
variant possible. Depending on the specification, the weight specified on the rating plate
may be lower than the standard values specified here.
Fig.12: Transport
Weight
280kg
Table9: Weight of complete high-pressure stage
