Switch A Switch B
1 2
Data
Data
Data
Data
IEC13000003-1-en.vsd
IED
PRPSTATUS
1 2
COM03
A
B
Duo
Redundancy
Supervision
Station Control System
IEC13000003 V1 EN

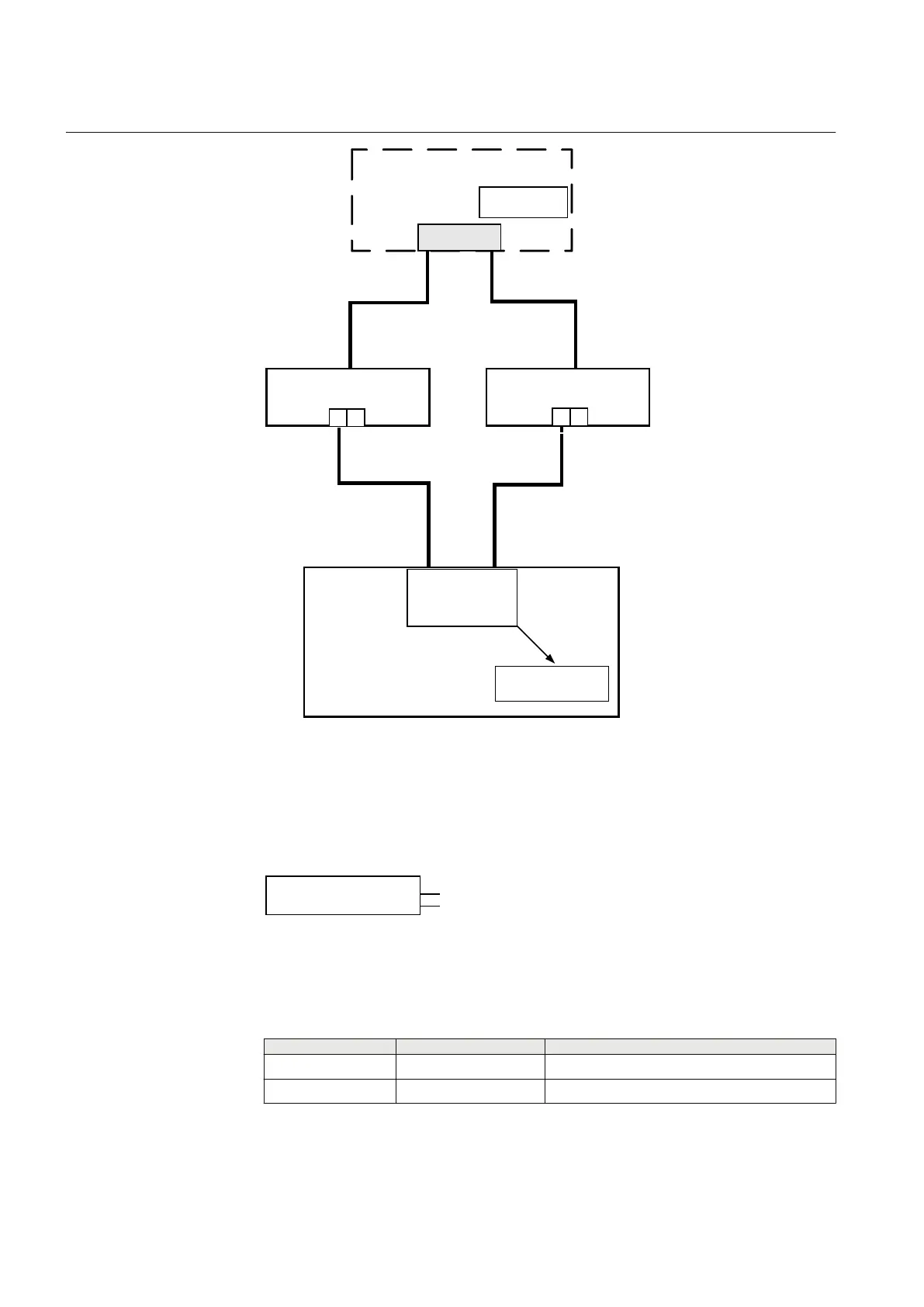

Figure 260: Redundant station bus
14.10.3 Function block
PRPSTATUS
LAN1-A
LAN1-B
IEC13000011-1-en.vsd
IEC13000011 V1 EN
Figure 261: PRPSTATUS function block
Table 482: PRPSTATUS Output signals
Name
Type Description
LAN1-A BOOLEAN LAN1 channel A status
LAN1-B BOOLEAN LAN1 channel B status
