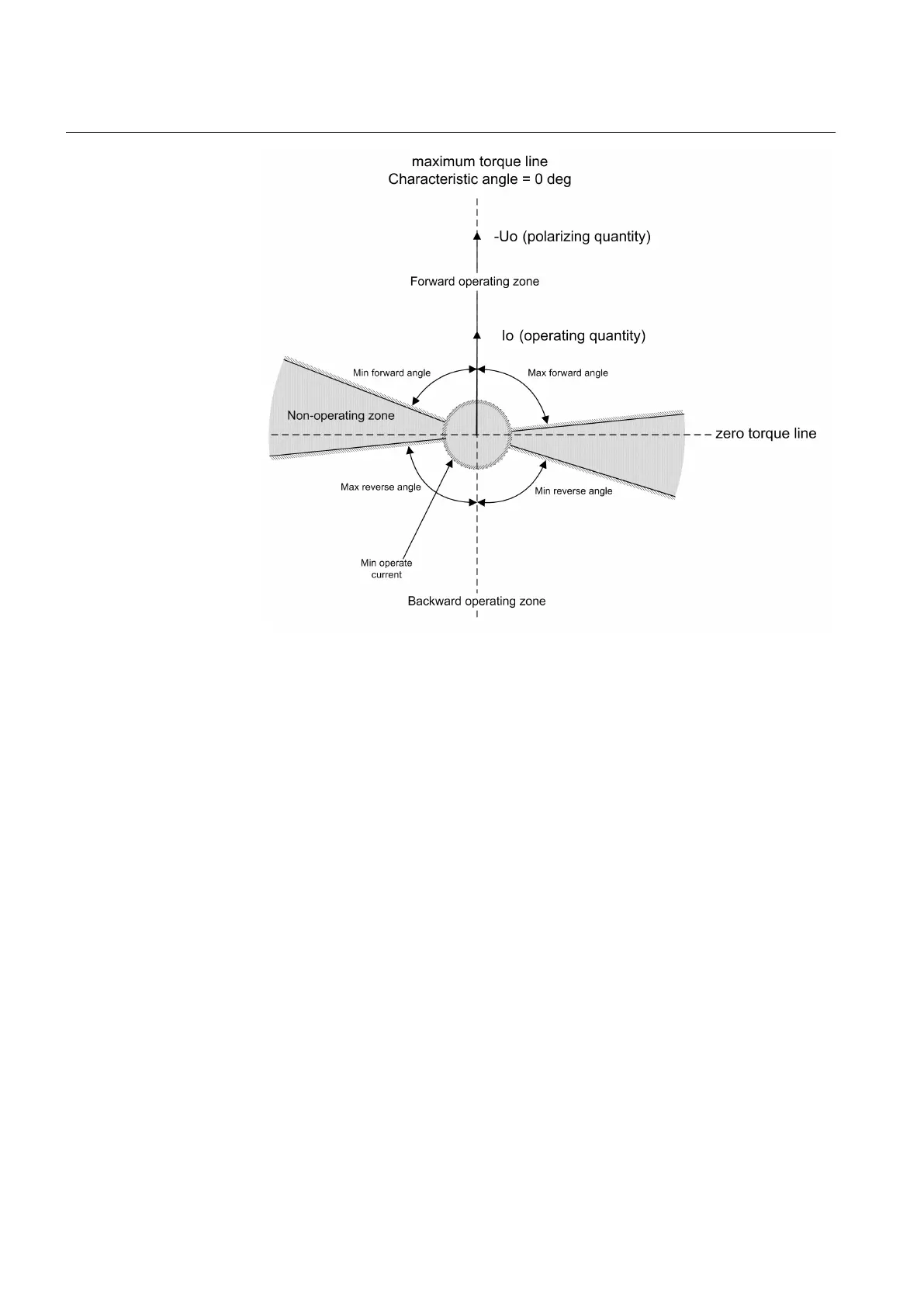

Figure 135: Definition of the relay characteristic angle, RCA=0 degrees in a
compensated network
Example 2
The "Phase angle" mode is selected, solidly earthed network (φRCA = +60 deg)
=> Characteristic angle = +60 deg
Section 4 1YHT530004D05 D
Protection functions
280 615 series
Technical Manual
