ABB REF615 G User Manual

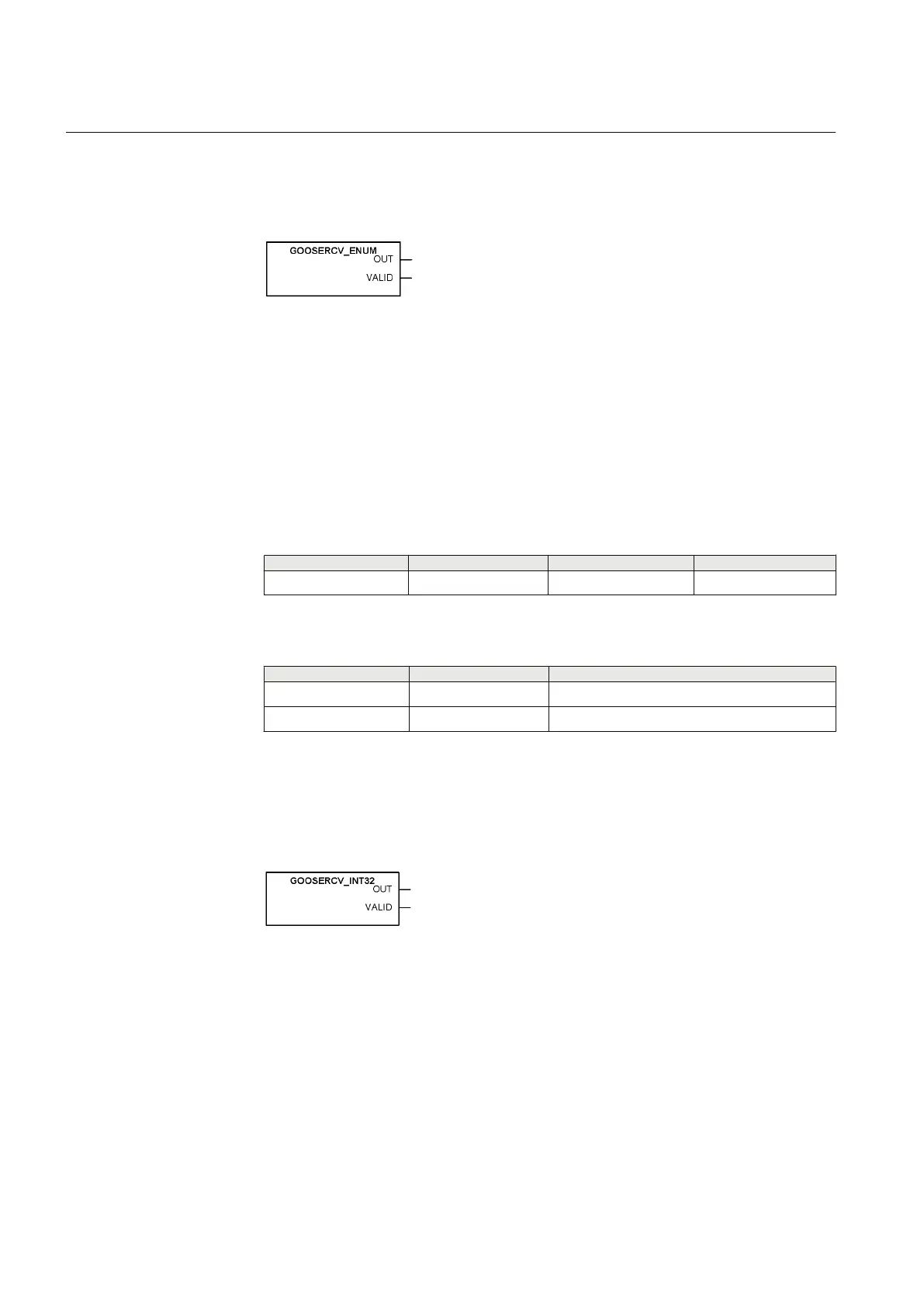

3.12.7 GOOSERCV_ENUM function block
3.12.7.1 Function block
GUID-E1AE8AD3-ED99-448A-8C11-558BCA68CDC4 V1 EN
Figure 36: Function block
3.12.7.2 Functionality
The GOOSERCV_ENUM function block is used to connect GOOSE enumerator
inputs to the application.
3.12.7.3 Signals
Table 71: GOOSERCV_ENUM Input signals
Name Type Default Description
IN Enum 0 Input signal
Table 72: GOOSERCV_ENUM Output signals
Name
Type Description
OUT Enum Output signal
VALID BOOLEAN Output signal
3.12.8 GOOSERCV_INT32 function block
3.12.8.1 Function block
GUID-61FF1ECC-507D-4B6D-8CA5-713A59F58D5C V1 EN
Figure 37: Function block
3.12.8.2 Functionality
The GOOSERCV_INT32 function block is used to connect GOOSE 32 bit integer
inputs to the application.
Section 3 1YHT530004D05 D
Basic functions
102 615 series
Technical Manual

ABB REF615 G Specifications

General

Type	Feeder Protection Relay
Rated Frequency	50/60 Hz
Binary Outputs	Up to 8
Communication Protocols	IEC 61850, Modbus RTU, DNP3
Protection Functions	Overcurrent, Earth fault, Thermal overload, Under/overvoltage
Standards	IEC 60255, IEC 61000
