ABB REF615 G User Manual

Section 6 Supervision functions
6.1 Trip circuit supervision TCSSCBR
6.1.1 Identification
Function description IEC 61850
identification
IEC 60617
identification
ANSI/IEEE C37.2
device number
Trip circuit supervision TCSSCBR TCS TCM
6.1.2 Function block
A070788 V1 EN

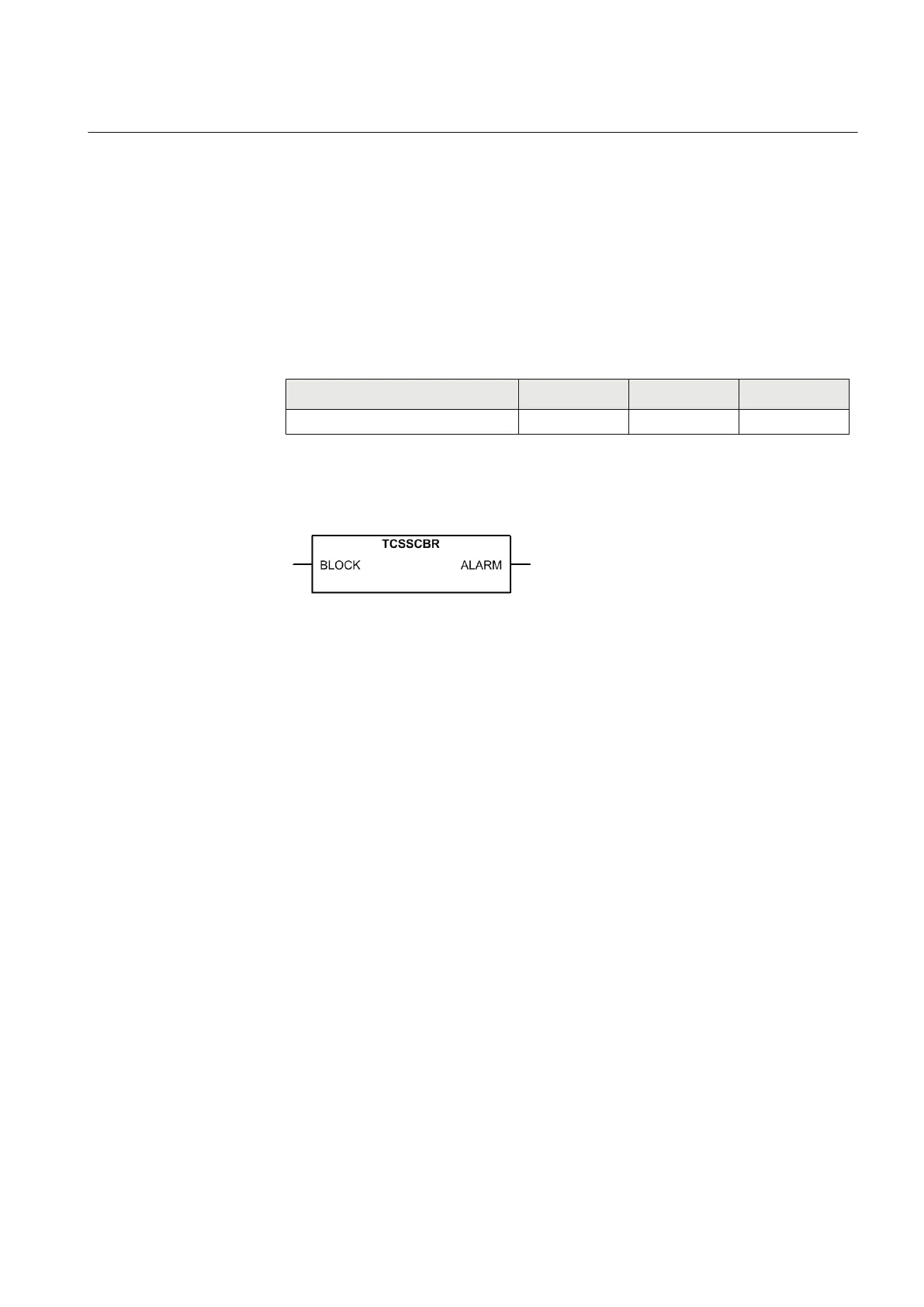

Figure 303: Function block
6.1.3 Functionality
The trip circuit supervision function TCSSCBR is designed to supervise the control
circuit of the circuit breaker. The invalidity of a control circuit is detected by using
a dedicated output contact that contains the supervision functionality.The failure of
a circuit is reported to the corresponding function block in the IED configuration.
The function starts and operates when TCSSCBR detects a trip circuit failure. The
operating time characteristic for the function is DT. The function operates after a
predefined operating time and resets when the fault disappears.
The function contains a blocking functionality. Blocking deactivates the ALARM
output and resets the timer.
6.1.4 Operation principle
The function can be enabled and disabled with the Operation setting. The
corresponding parameter values are "On" and "Off".
The operation of trip circuit supervision can be described by using a module
diagram. All the modules in the diagram are explained in the next sections.
1YHT530004D05 D Section 6
Supervision functions
615 series 571
Technical Manual

ABB REF615 G Specifications

General

Type	Feeder Protection Relay
Rated Frequency	50/60 Hz
Binary Outputs	Up to 8
Communication Protocols	IEC 61850, Modbus RTU, DNP3
Protection Functions	Overcurrent, Earth fault, Thermal overload, Under/overvoltage
Standards	IEC 60255, IEC 61000
