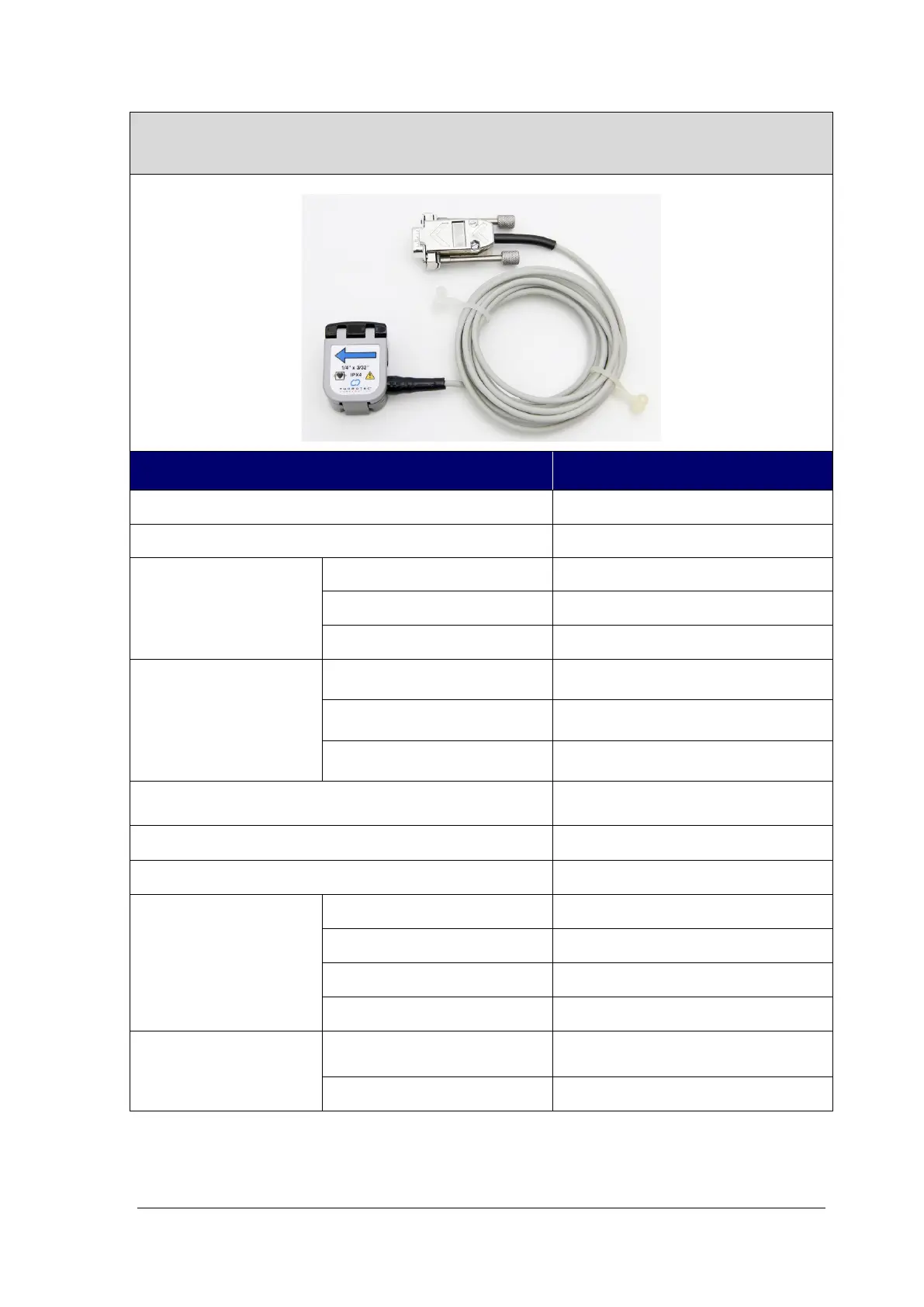

EM-TEC PEDIATRIC FLOW PROBE FOR PEDIMAG
TM
PUMP
(AVAILABLE SEPARATELY)
PARAMETER SPECIFICATIONS
Product Name
em-tec Pediatric Flow Probe
Design Ultrasonic transit time technology
Physical Specification
Width (L1) 33mm (1.29“)
Length (L2) 45mm (1.77“)
Thickness (L3) 25mm (0.98“)
Accuracy
0.0 to 1.0 LPM ± 0.1 LPM + Offset Drift
1.0 to 8.0 LPM ±7 % of the value + Offset Drift
Maximum Slope Error max. 0.03 LPM within 2 hours
Ultrasound Frequency
15 kHz to 18 MHz, different patterns
possible, resolution 8 bit
Resolution 1 mLPM
Retrograde Flow Detection Measured to -2.0 LPM
Tubing Specification
Tubing ID 6.4 mm (1/4”)
Wall Thickness 2.4 mm (3/32”)
Tubing OD 11.1 mm (7/16”)
Material Polyvinyl Chloride
Probe Calibration
Calibrated for Fluid
Temperature (ºC)
Blood at 37 ºC
Tubing Type Tygon S-50-HL
