7.2 Console Mounting
If the Console is desired to be secured to the System Cart, then it is required to use the
CM Distance Holder and Console Standoff.
When mounting a single Console onto the System Cart, use the CM Distance Holder to
securely fix the Console in place.

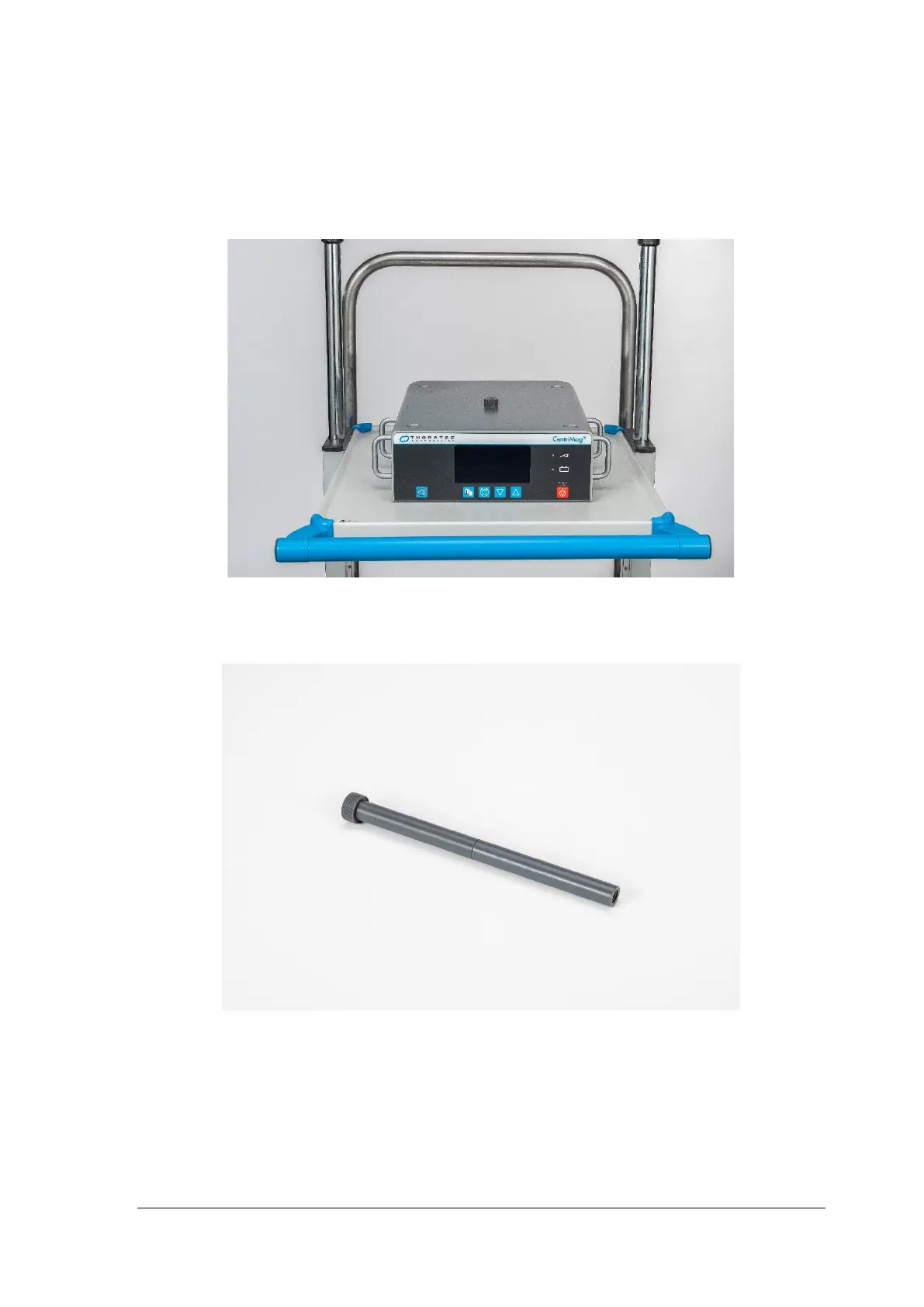

Figure 19: Mounting of Single Console onto System Cart
When mounting two stacked Consoles onto the System Cart, use the CM Distance Holder
in combination with Console Standoff to securely fix both Consoles in place.
Figure 20: Combination of Distance Holder and Console Standoff
