CentriMag
TM
Circulatory Support System Operation Manual (US) Page 61 of 126
© 2019 Abbott – Document No PL-0047, Rev 11 (December 2019)

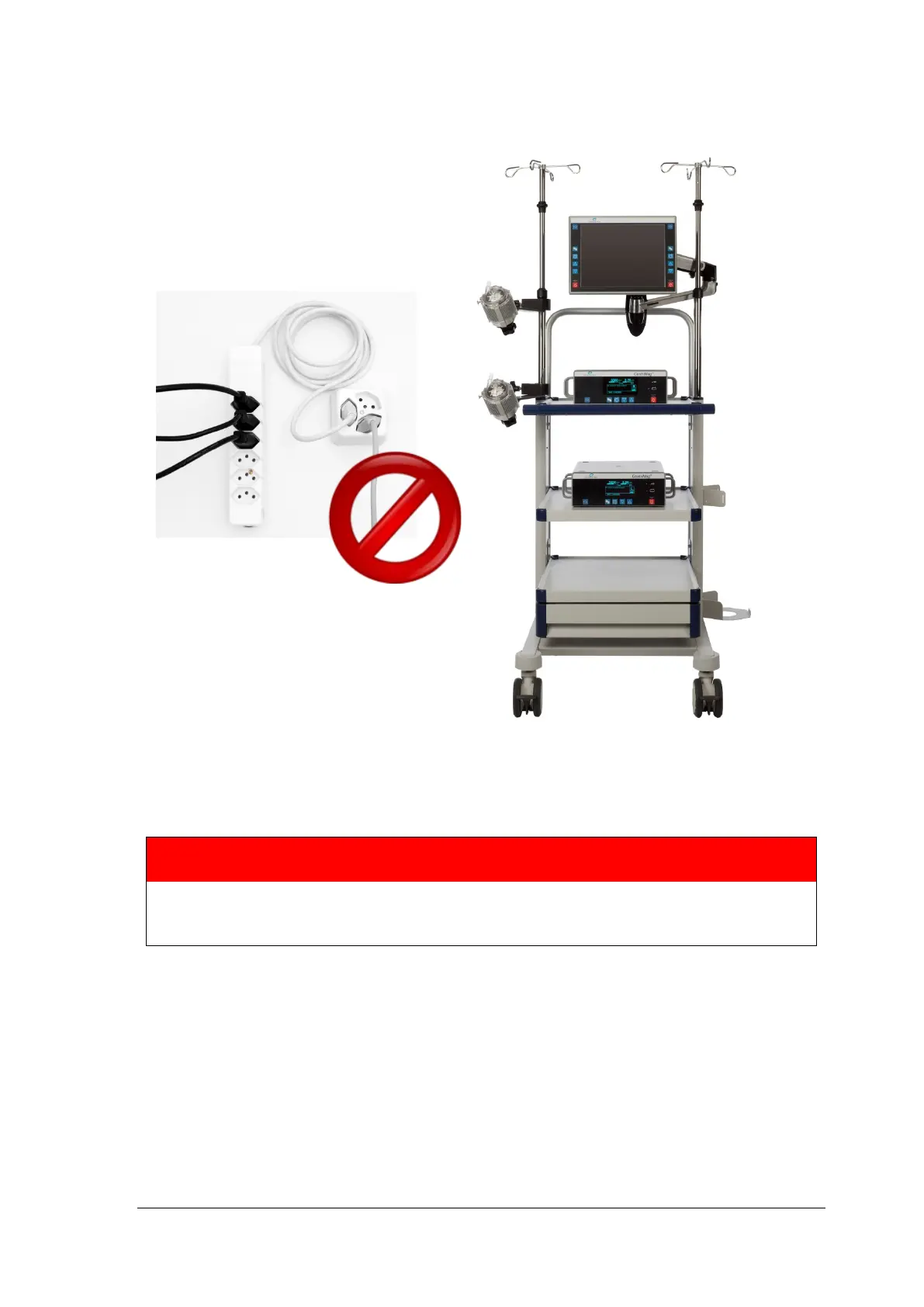

Figure 32: Incorrect Biventricular Assist Power Connection
WARNING
To avoid the risk of electric shock, the CentriMag equipment must only
be connected to a mains supply with a protective earth.
3. Insert the LEMO connector on the Motor cable into the Motor connection on the rear
of the Console. Make sure the connector is fully inserted. Check that the connector is
fully seated by attempting to retract the connector and verifying that it remains within
the receptacle.
4. Connect the Flow Probe cable to the Console by tightening the two thumb screws to
the mating threaded receptacles found on either side of the 15-Pin connector on the
rear of the Console.
