ABL eMS home User Manual

| Introduction – Connections and controls
8

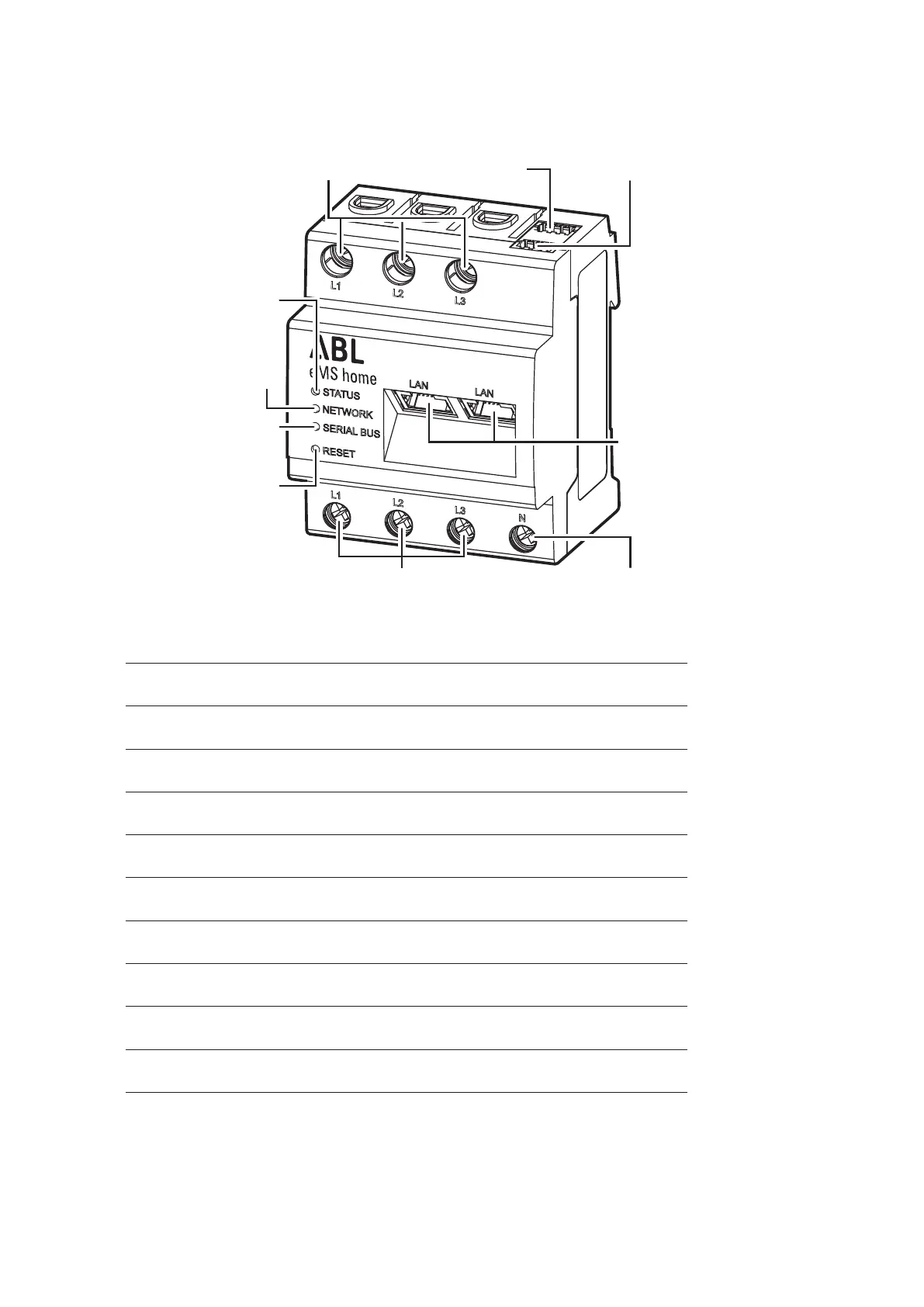

Connections and controls
Number Designation
1
Outer conductor L1, L2, L3 outputs
2
RS485 A connection
3
RS485 B connection
4
2× LAN connection
5
Neutral conductor N
6
Outer conductor L1, L2, L3 inputs
7
Reset button
8
Serial bus LED for RS485 bus
9
Network LED
0
Status LED
6
5
4
3
7
8
9
0
2
1

ABL eMS home Specifications

General

Communication Interface	Ethernet
Protocols	Modbus TCP
Storage Temperature	-40°C to +70°C
Humidity	5% to 95% (non-condensing)
Certification	CE
