16
LVD SCSIDE Bridge Manual

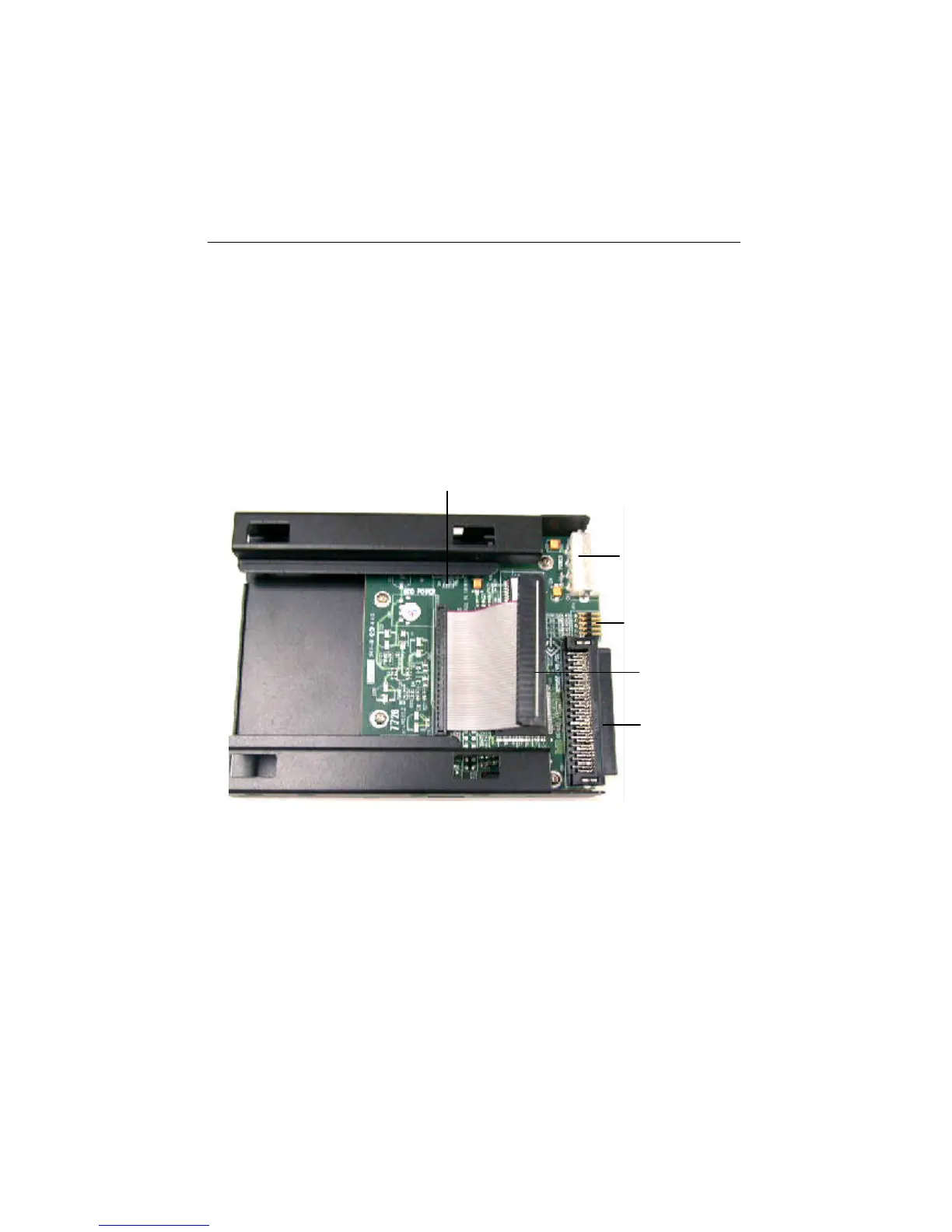

6. ARS-2000LHS
l CN1 --- 68-pin female SCSI connector.
l CN5 --- 44-pin female IDE connector.
l CN4 --- 4-pin power connector, for supplying power to the bridge.
l JP1 --- Refer to Figure 3-24 on page 37.
l SW1 --- Refer to Figure 3-25 on page 37.
SW1
CN4
JP1
CN5
CN1
Figure 2-6
