Height Sensor Installation:

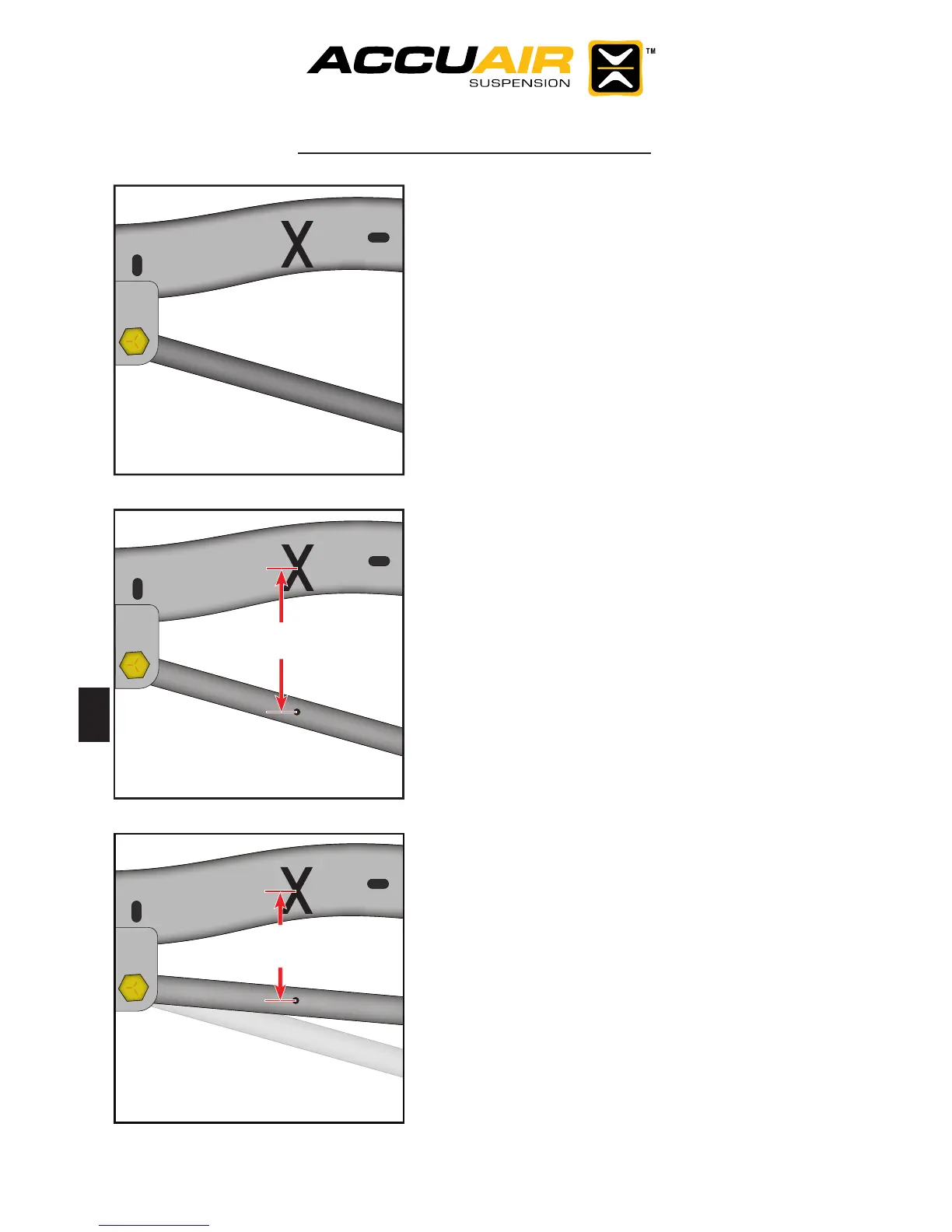

Step 1.) Choose a stationary mounting
point on the frame where you hope to
mount the sensor, (Mark an “X” here).
All of the following measurements will
be taken from this point.
Step 2.) Mark a Dot on the moving sus-
pension arm directly under the “X” from
step 1, (This will be your target ball stud
mounting point). With the vehicle at the
top of its travel (aired all the way up),
measure from your dot up to the center
of your “X”. We will call this distance
“A”.
Step 3.) While standing clear, exhaust
the vehicle to the very bottom of its
travel. Now re-measure from your dot
up to the center of your “X”. We will call
this distance “B”.
Calculate the sensor travel by subtract-
ing B from A, (Sensor Travel = A-B).
A
B
