AccuAir e-Level - Height Sensor Installation: Wiring and Routing; Importance of Correct Sensor Wiring; Routing Sensor Cables to ECU

AccuAir Rocker Switch Manual V2.7 © 2007 AccuAir Control Systems, L.L.C.
- Page 20 -
Height Sensor Installation:
SENS_#
2.75"
ECU
ECU
!

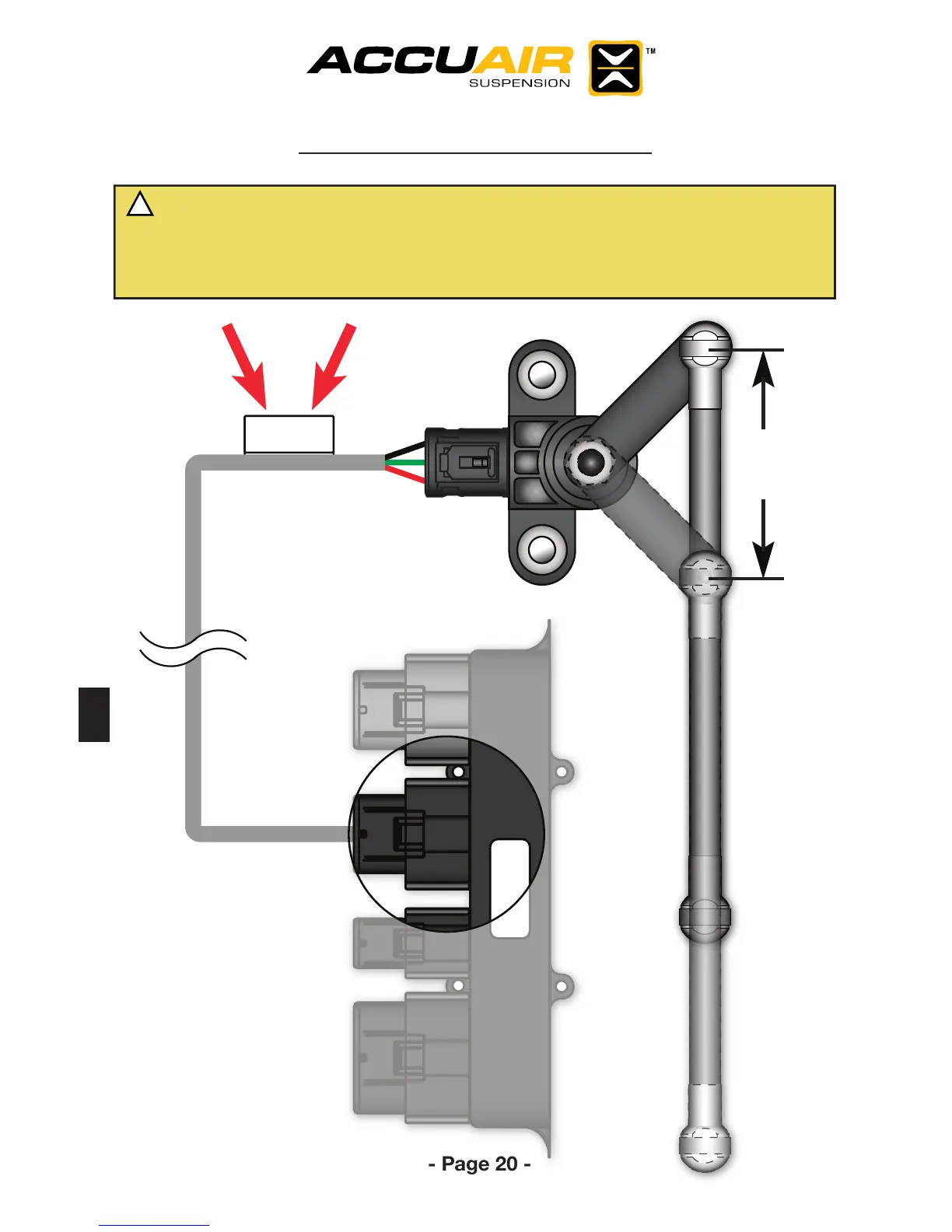

NOTE: It is EXTREMELY important to wire the Ride-Height Sensors
correctly. Identify the number label on each sensor cable and route it to
the correct corner of the car based on the system diagram in the front of
this manual.
