Multiple Wiring Modes
The Acuvim II series meter can be used in high voltage, low voltage, three phase
three wires, three phase four wires and single phase systems using different
wiring mode settings.
High Safety, High Reliability
Acuvim II series meter was designed according to industrial standards. It can
run reliably under high power disturbance conditions. This meter has been fully
tested for EMC and safety compliance in accordance with UL and IEC standards.

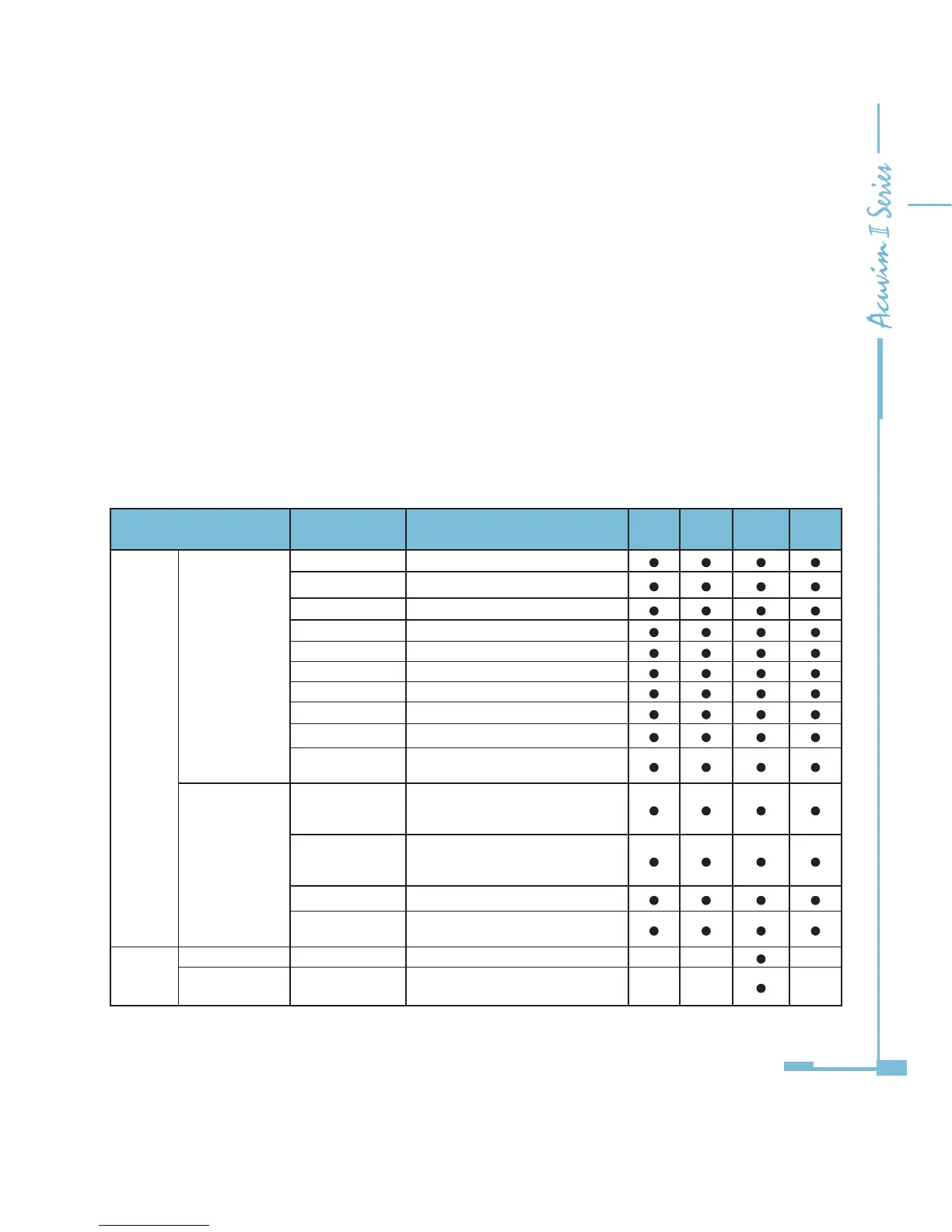

Function Comparison of Acuvim II series Meters
Category Item Parameters
Acuvim
II
Acuvim
IIR
Acuvim
IIE
Acuvim
IIW
Metering
Real Time Metering
Phase Voltage V1, V2, V3, Vlnavg
Line Voltage V12, V23, V31, Vllavg
Current I1, I2, I3, In, Iavg
Power P1, P2, P3, Psum
Reactive Power Q1, Q2, Q3, Qsum
Apparent Power S1, S2, S3, Ssum
Power Factor PF1, PF2, PF3, PF
Frequency F
Load Features Load Features
Four Quadrant
Powers
Four Quadrant Powers
Energy &
Demand
Energy
Ep_imp, Ep_exp, Ep_total, Ep_net
Epa_imp; Epa_exp; Epb_imp;
Epb_exp; Epc_imp; Epc_exp
Reactive Energy
Eq_imp, Eq_exp, Eq_total, Eq_net
Eqa_imp; Eqa_exp; Eqb_imp;
Eqb_exp; Eqc_imp;Eqc_exp
Apparent Energy Es; Esa; Esb; Esc
Demand
Dmd_P, Dmd_Q, Dmd_S, Dmd_I1, Dmd_
I2, Dmd_I3
TOU
Time Of Use Energy/max demand TOU, 4 Taris, 12 Seasons, 14 Schedules
Daylight
Saving Time
Two formats
adjust
Month/Day/Hour/Minute; Month/Week/
First few weeks/Hour/Minute
