Machine Maintenance Procedures 3-7

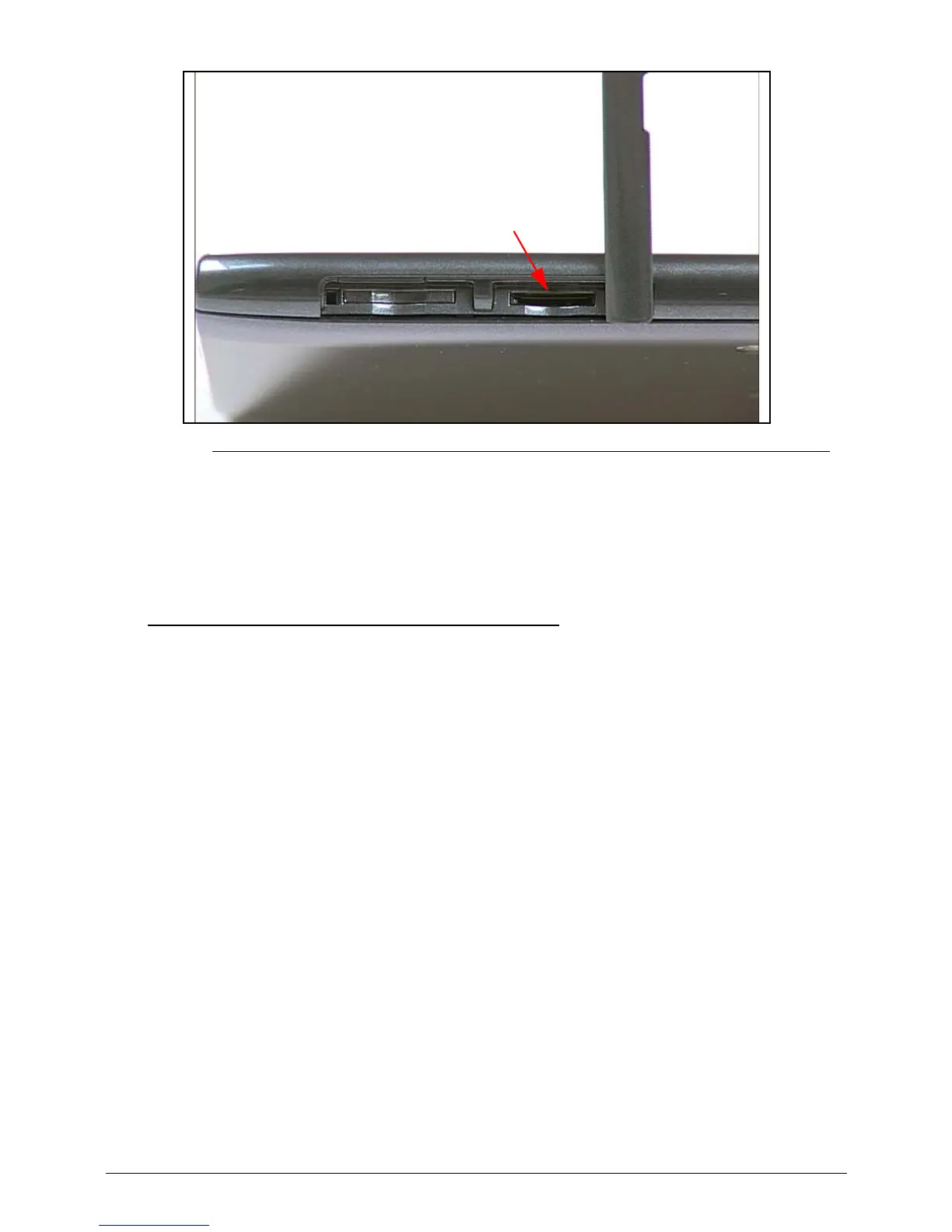

Figure 3-6. micro-SD Card (non-3G SKU)
3. Press in Micro-SD card (C) to unlock and remove from spring locking mechanism.
(Figure 3-5 and Figure 3-6)
4. Secure SIM/Micro-SD card cover.
SIM/Micro-SD Card Installation 0
1. Open SIM/Micro-SD card cover (A). (Figure 3-4)
2. Install and press in to secure SIM card (B). (Figure 3-5)
3. Install and and press in to secure Micro-SD card (C).
4. Close and secure SIM/Micro-SD card cover.
